Series SC
Installation, Operation,and
Maintenance Manual
Parts Diagrams
1
4
3
2
6
5

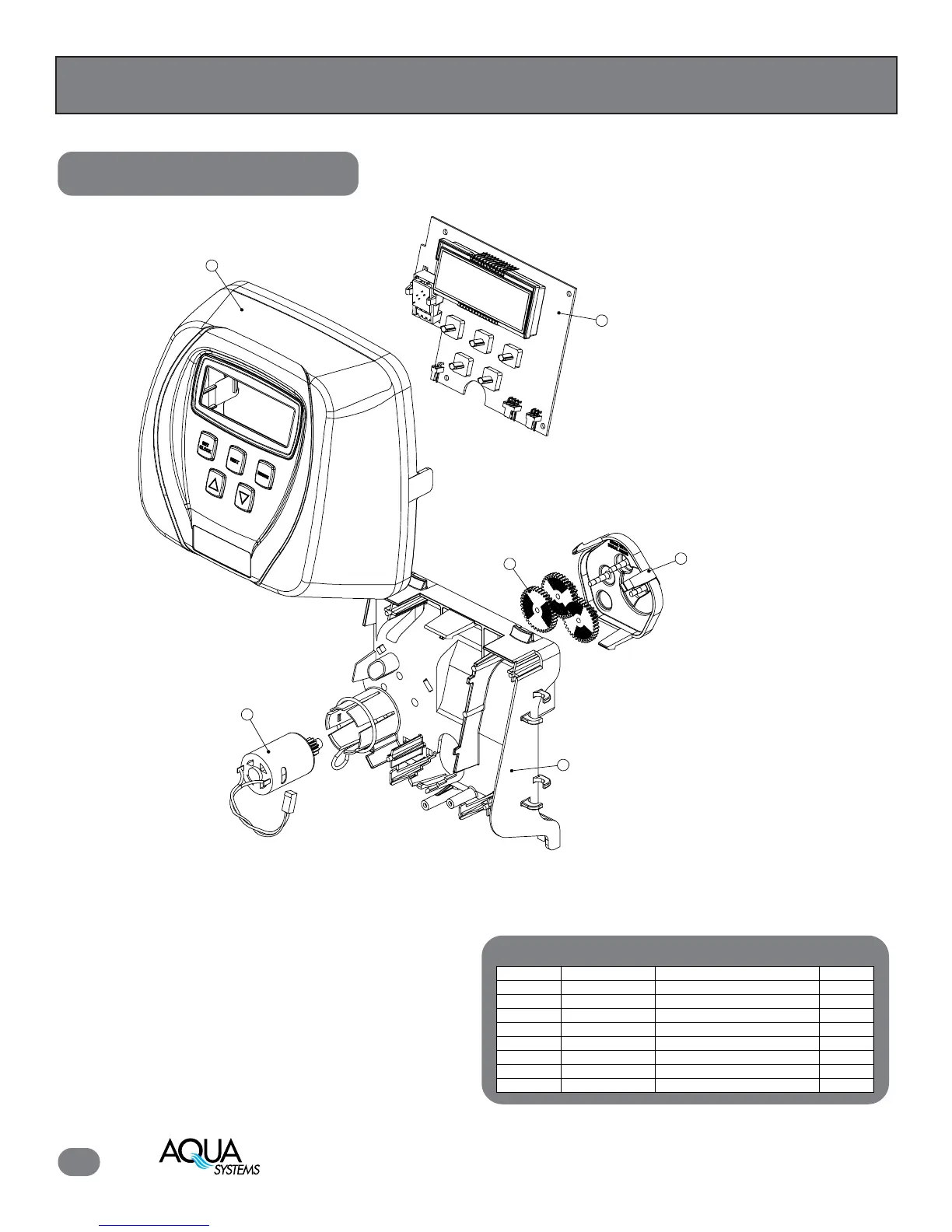

Quick Connect Assembly
No.Part No. Description Qty.
102910186 SC Front Cover Assy 1
202910128 Motor 1
302910127 Drive Bracket and Spring Clip 1
402910185 SC PC Board 1
502910132 Drive Gear 12 x 36 3
602910131 Drive Gear Cover 1
(2 - 6) 02610106 Drive Assy (includes parts 2 - 6) (1)
Not Shown02910166 Transformer 110v - 12v 1
