Page - 7
l Black wire from PoolSync
TM
to G (or GND)
l Yellow or White wire from PoolSync
TM
to Y (or A)
l Green wire from PoolSync
TM
to B
l Red wire from PoolSync
TM
to R (or 10v)

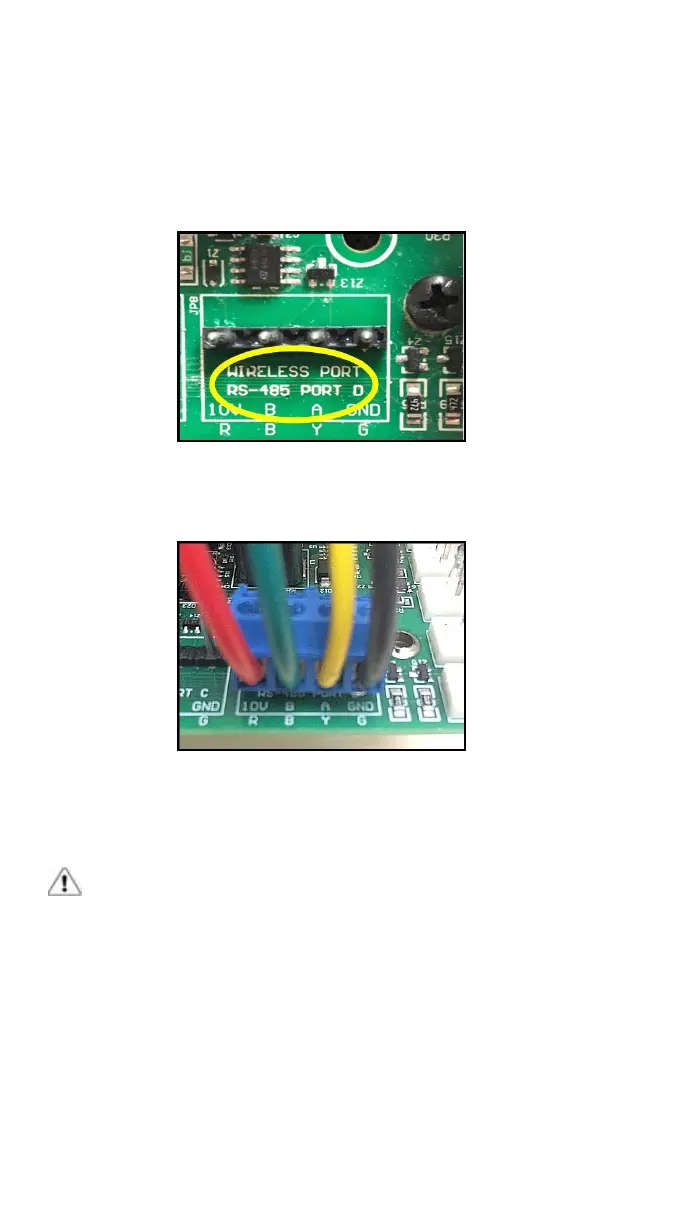

Port D
Figure 5
Port D
Wire Location
Figure 6
Note: Before mounting the PoolSync
TM
, verify WiFi
reception. See "Mounting the PoolSync
TM
" on page 11.
CAUTION - Failure to heed the following may result in
equipment damage.
l Do not connect two RED wires in the same port. This may
cause damage to the equipment. Damage resulting from
improper wiring will void the unit's warranty.
l Failure to follow instructions may result in property damage.
The PoolSync
TM
must be installed and operated as specified.
Failure to do so will void the equipment warranty.
