Aquacal AutoPilot PoolSync - Page 8

Page - 5

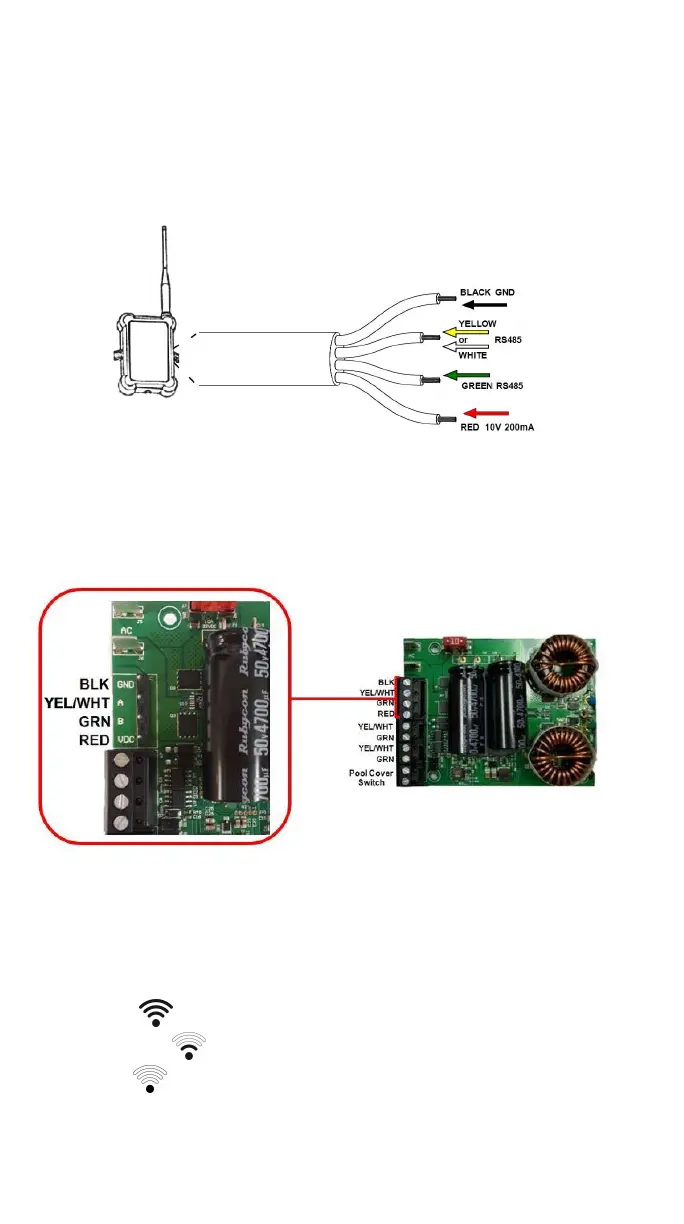

l Black wire from PoolSync
TM
to BLK (or GND)
l Yellow or White wire from PoolSync
TM
to YEL (or A)
l Green wire from PoolSync
TM
to GRN (or B)
l Red wire from PoolSync
TM
to RED (VDC or 10v)
PoolSync
TM
Wiring
Figure 2
ChlorSync
®
Wiring
Figure 3
Note: Before mounting the PoolSync
TM
, verify WiFi
reception. See "
Mounting the PoolSync
TM
" on page 11.
Signal strength guide:
l
Good
l
Moderate
l
Poor
