Aquagem IP30 - EXTERNAL CONTROL INTERFACE

20

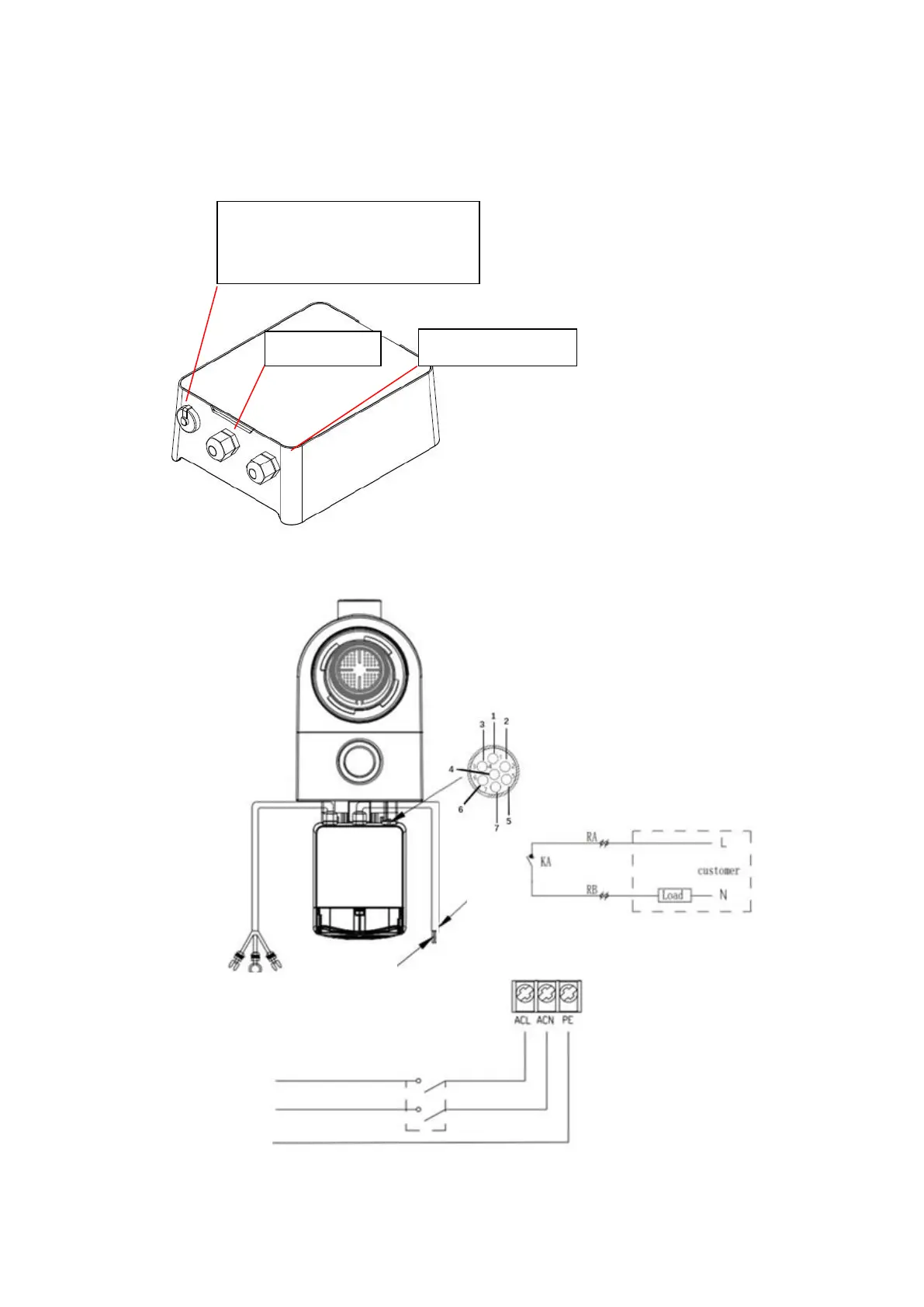

7. EXTERNAL CONTROL
External control can be enabled via following contacts. If more than one external control is enabled,
the priority is as below: Digital Input > RS485 > Panel control
AC Power input
Figure 3
Figure 4
7 PINs connector
Brown L
Blue
Yellow and green
AC Power input
Blue N
Yellow and green PE
Connector for configurable user
inputs, including Digital Input and
RS485
Relay output
RB
RA
