FITTING THE BACK COVER INTO POSITION
DIVERTOR HANDLE ( UPPER HANDLE )
VOLUME CONTROL HANDLE ( LOWER HANDLE )

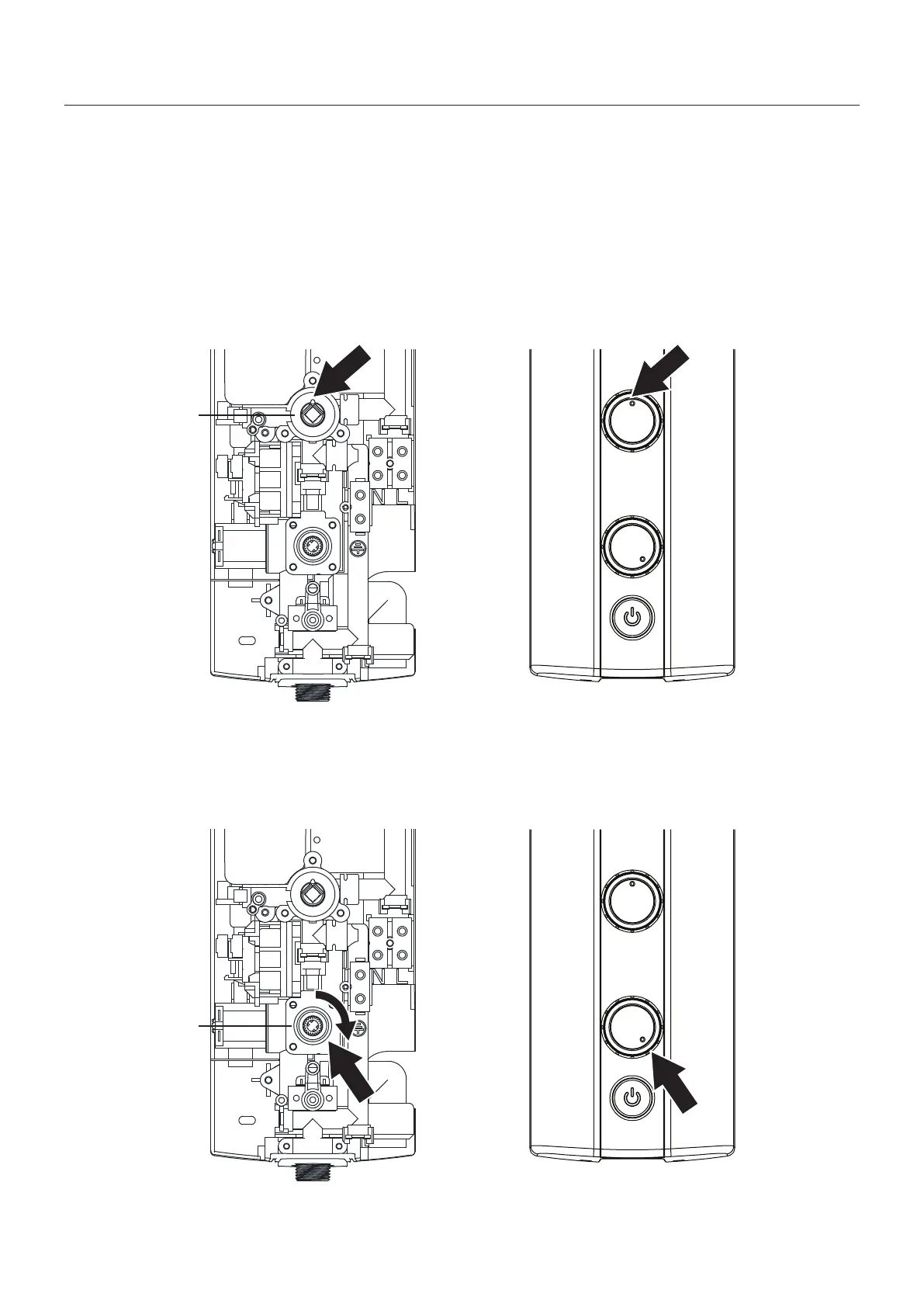

Make sure that the Divertor spindle and the raised button on the divertor handle are in the
12 O'clock position before fitting the cover.
Turn the stabilizer valve spindle and volume handle fully clockwise until resistance is felt.
NOTE: Refit digital supply cable and fit cover. refit 2 cover fixing screws.
Stabilizer valve
Divertor spindle
When fitting the cover, it is important to align the divertor spindle and
volume control spindle inside the heater.
