AQUOR House Hydrant V2+ - Parts and Specifications; Hydrant Component Breakdown

Aquor
®
House Hydrant V2+
ASSE 1019A CERTIFIED / meets IAPMO/cUPC
15
www.aquorwatersystems.com
(800) 458-1749

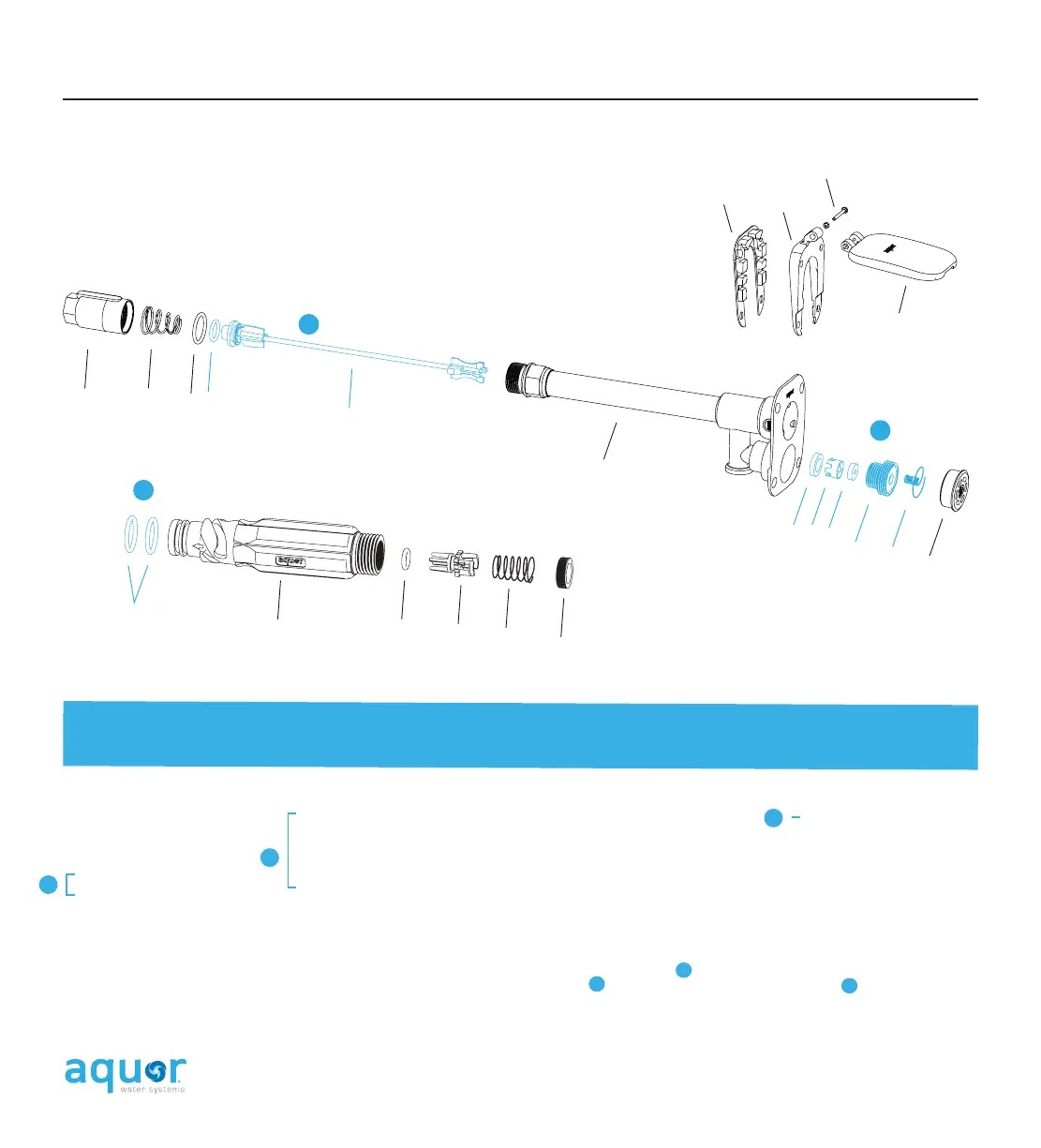

Hydrant
1. Rear Valve Housing (Inlet)
2. Valve Spring
3. Hydrant Body O-Ring
4. Inner Valve O-Ring
5. Operating Rod
6. Hydrant Body
Parts Description
7. Vacuum Breaker Washer
8. Vacuum Breaker Valve
9. Vacuum Breaker Seal
10. Vacuum Breaker Retainer
11. Vacuum Breaker Spring
12. Vacuum Breaker Cover
A
B
1
17
18
19
20
2
3
4
5
A
C
Debris Cover
13. Debris Cover Gasket
14. Debris Cover Wedge
15. Debris Cover Nut & Bolt
16. Debris Cover
PARTS DESCRIPTION
Hose Connector
17. Connector O-Rings
18. Connector Body
19. Check Valve O-Ring
20. Check Valve
21. Check Valve Spring
22. Check Valve Retainer
Need Parts? Stem Replacement Kits available in 2”, 4”, 6”,
8”, 10”, and 12” , Vacuum Breaker Replacement
Kits , and Hose Connector O-Ring Kits are available.
For help, email us at contact@aquorwatersystems.com
or call us at 1-800-458-1749.
