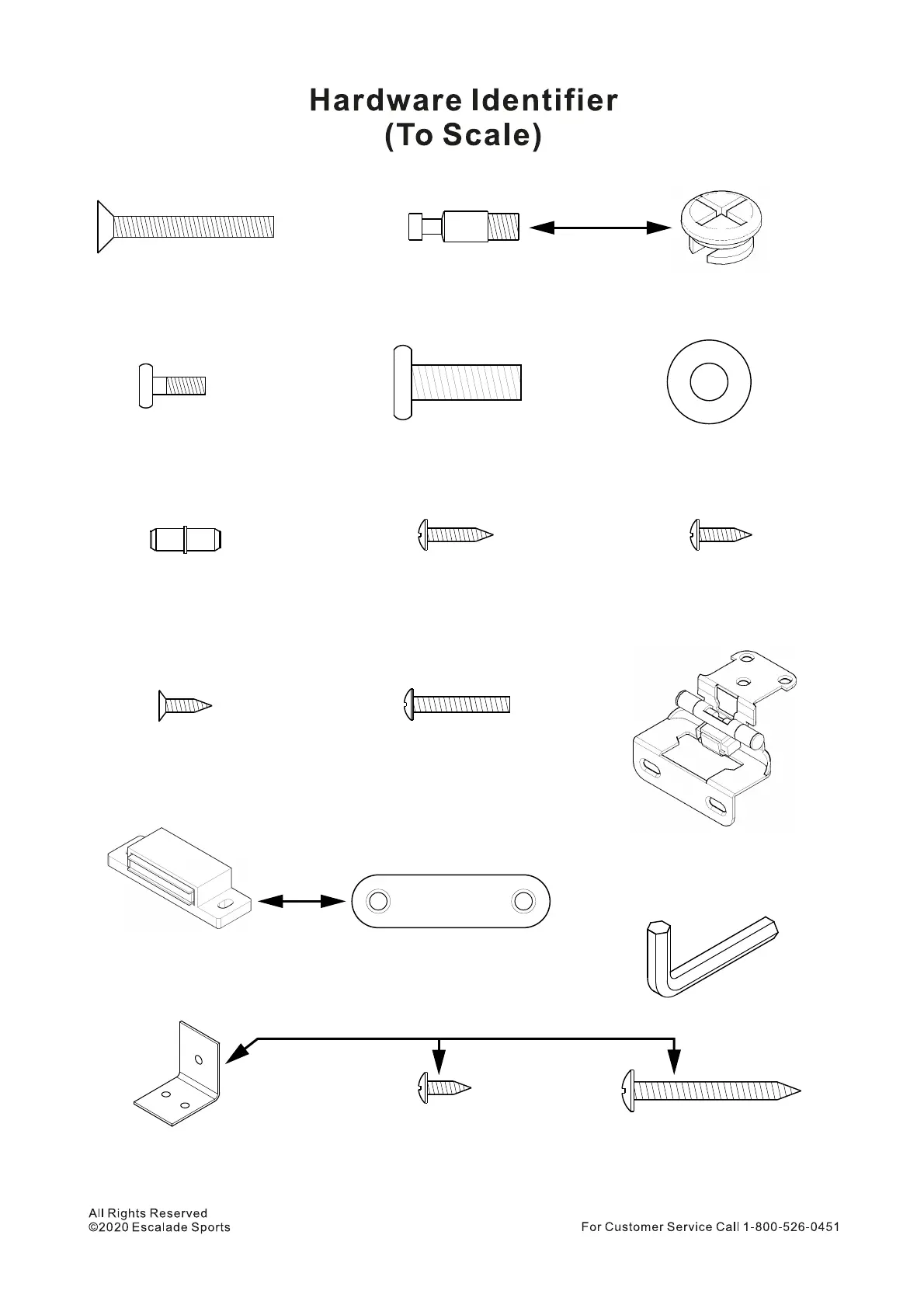

Arachnid E650FSRT-BK2 - Page 5

H7 - 5 x 16 mm
Pin
10 pcs
H1 - 5 x 40 mm
Philips Flat Counter Sunk Head Bolt
24 pcs
H2 - 6 x 25 mm
Panel Bolt
for Panel Bolt Lock
4 pcs
used together
(Not to Scale)
H3 - Panel Bolt Lock
4 pcs
H4 - 4 x 12 mm
Dartboard Hanger Bolt
2 pcs
H5 - 8 x 25 mm
Allen Head Bolt
4 pcs
(Not to Scale)
H13 - Door Magnet
2 pcs
H14 - 45 x 12mm
Door Magnet Plate
2 pcs
H8 - 3.5 x 15 mm
Phillips Round Head Screw
20 pcs
H10 - 3.5 x 12 mm
Phillips Flat Head Screw
7 pcs
(Not to Scale)
H12 - Door Hinge
3 pcs
H6 - 8.5 x 19 mm
Flat Washer
4 pcs
(Not to Scale)
H15 - Allen Wrech
1 pc
H9 - 3.5 x 12 mm
Phillips Round Head Screw
38 pcs
H11 - 3.5 x 22 mm
Phillips Round Head Screw
2 pcs
(Packed with Part Q)
5
(Not to Scale)
H16 - Safety L-Bracket
1 pc
H17 - 3.5 x 10 mm
Phillips Round Head Screw
2 pcs
H18 - 4 x 38 mm
Phillips Round Head Screw
1 pc
used together
used together
