6
8 0 0 8 A N D I R I D I U M U S E R G U I D E
©2012 Indy Audio Labs, LLC all rights reserved / Revision20130220
Document No. 1000571

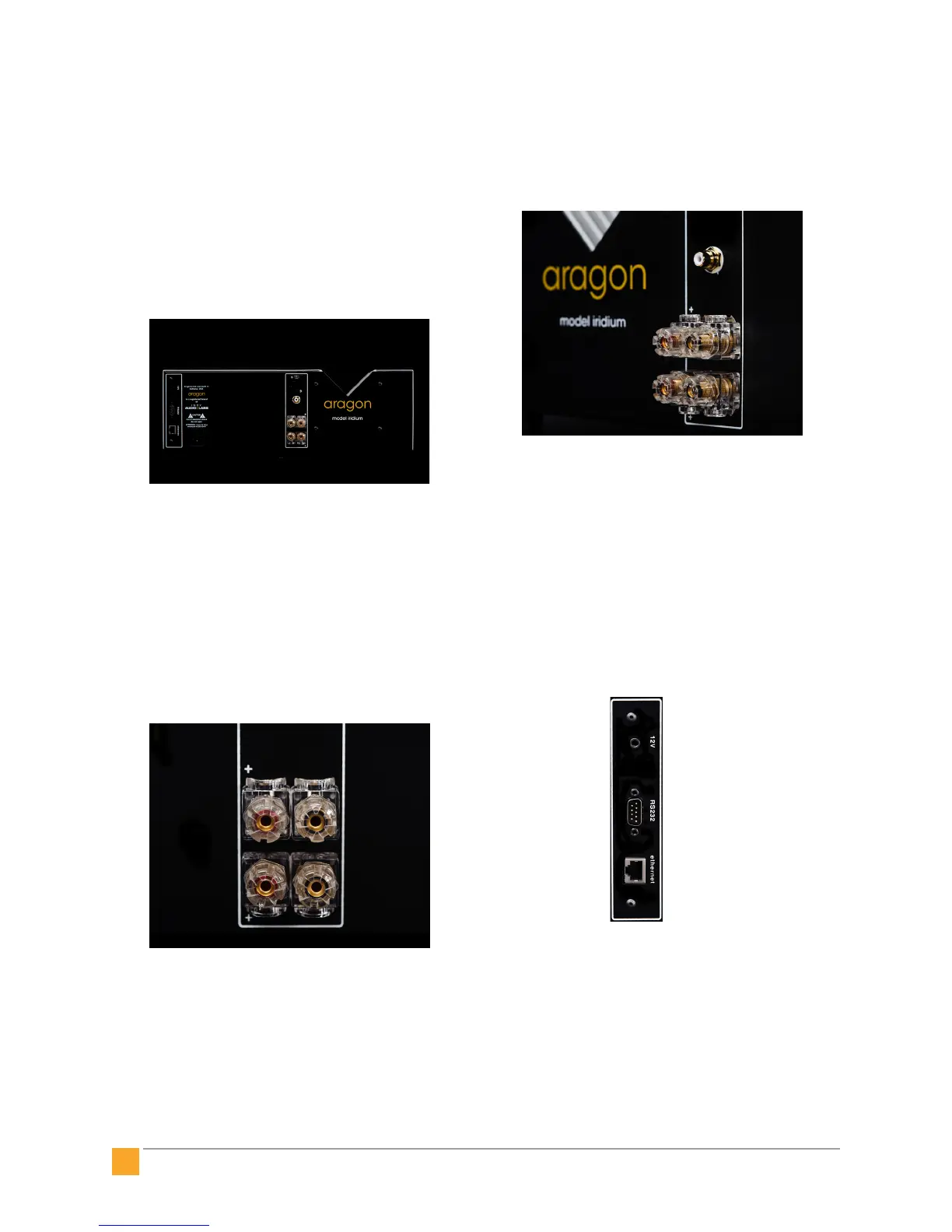

Rear and Bottom Panel
The rear panel of your Aragon amplier has been pains-
takingly designed for ease of installation.
Rear panel finish: The rear chassis features a durable
powder coat nish to provide both scratch resistance
and high-contrast markings for installation in dimly-lit
environments. All labels are clear and concise utilizing
easy-to-read fonts.
Speaker Outputs: Speaker outputs are discrete, rugged,
60-amp gold-plated binding posts with anti-touch pro-
tective clear housings. Two pairs of speaker connectors
are provided per channel to facilitate bi-wiring.
All posts are color-coded with red and black rings for +
and - speaker polarity and are spaced to accommodate
dual banana jacks.
Audio Inputs: Each audio input consists of a high-con-
ductivity, gold-plated RCA jack along with a professional-
grade XLR jack. Each is logically arranged above its
corresponding output connection.
AC Mains Inlet: The AC mains inlet is a remove-able IEC-
320-style high-current appliance inlet with integral mains
fuse holder. This inlet is approved for international use.
Network Module: Your new Aragon amplier includes
built-in remote control and networking capabilities that
provide a wide array of options and ultimate installation
exibility. All these functions are provided in an upgrade-
able, internal hardware card.
1 - External 12V Trigger Input: Within the network
module section, a 3.5mm jack allows for connection to a
typical 5-24V trigger output from an external pre-amp or
pre-amp/processor via a stereo 3.5mm cable.
1
2
3
4
