Araknis Networks 310 Series Layer 2 Managed Network Switches
Quick Start Guide
© 2016 Araknis Networks®
RESET
1 3 5 7
2 4 6 8
Link/Act1 Gbps
9 SFP 10 SFP
Link/Act
1 Gbps
AN-310-SW-R-8-POE
Step 4: PoE Budget

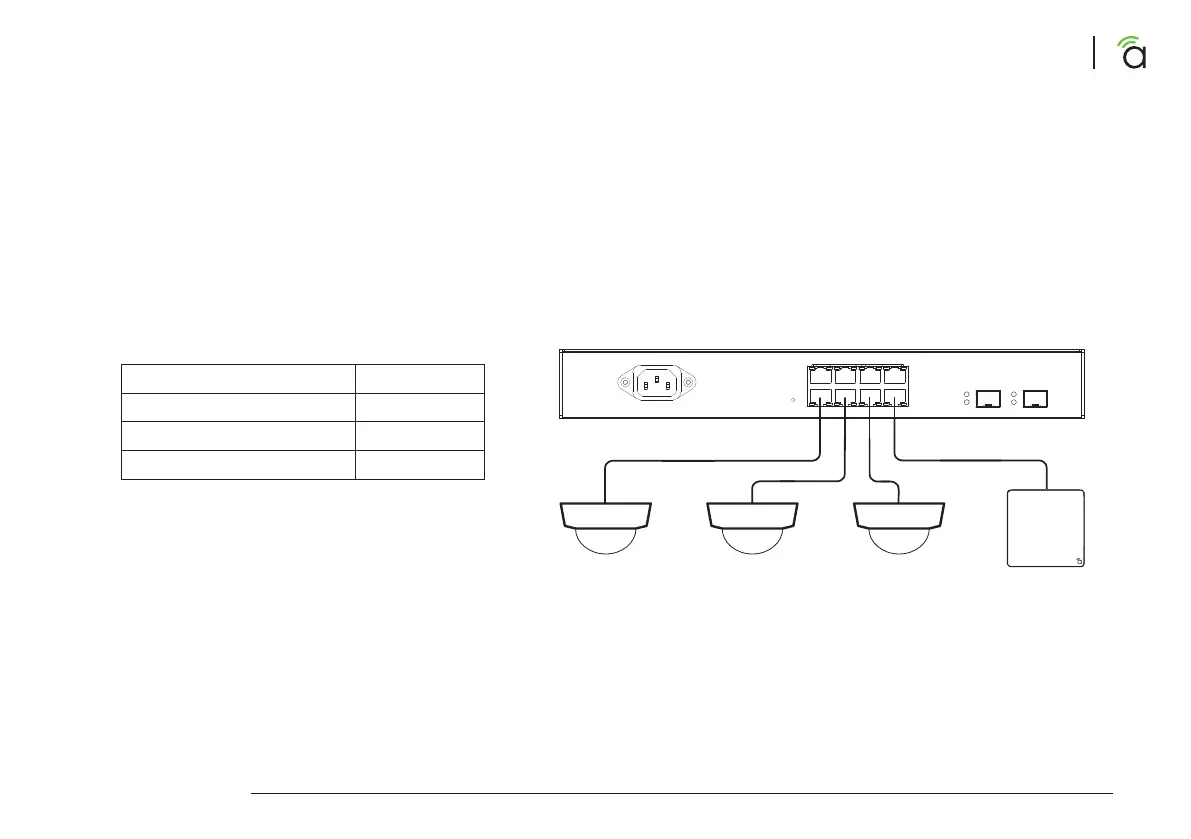

The power budget for delivering Power over Ethernet limits the total number of watts available between all of
the ports (limited to 30W total consumption on each port). Add the total number of watts consumed by all
connected PoE devices to ensure that every thing can be powered, as illustrated in the example below.
Total PoE Device Consumption = 42W
PoE Budget Left Available = 88W
Total PoE Budget Available = 130W
8W + + +8W 12W 14W
Model PoE Budget
AN-310-SW-F/R-8-POE 130W
AN-310-SW-F/R-16-POE 250W
AN-310-SW-F/R-24-POE 375W
