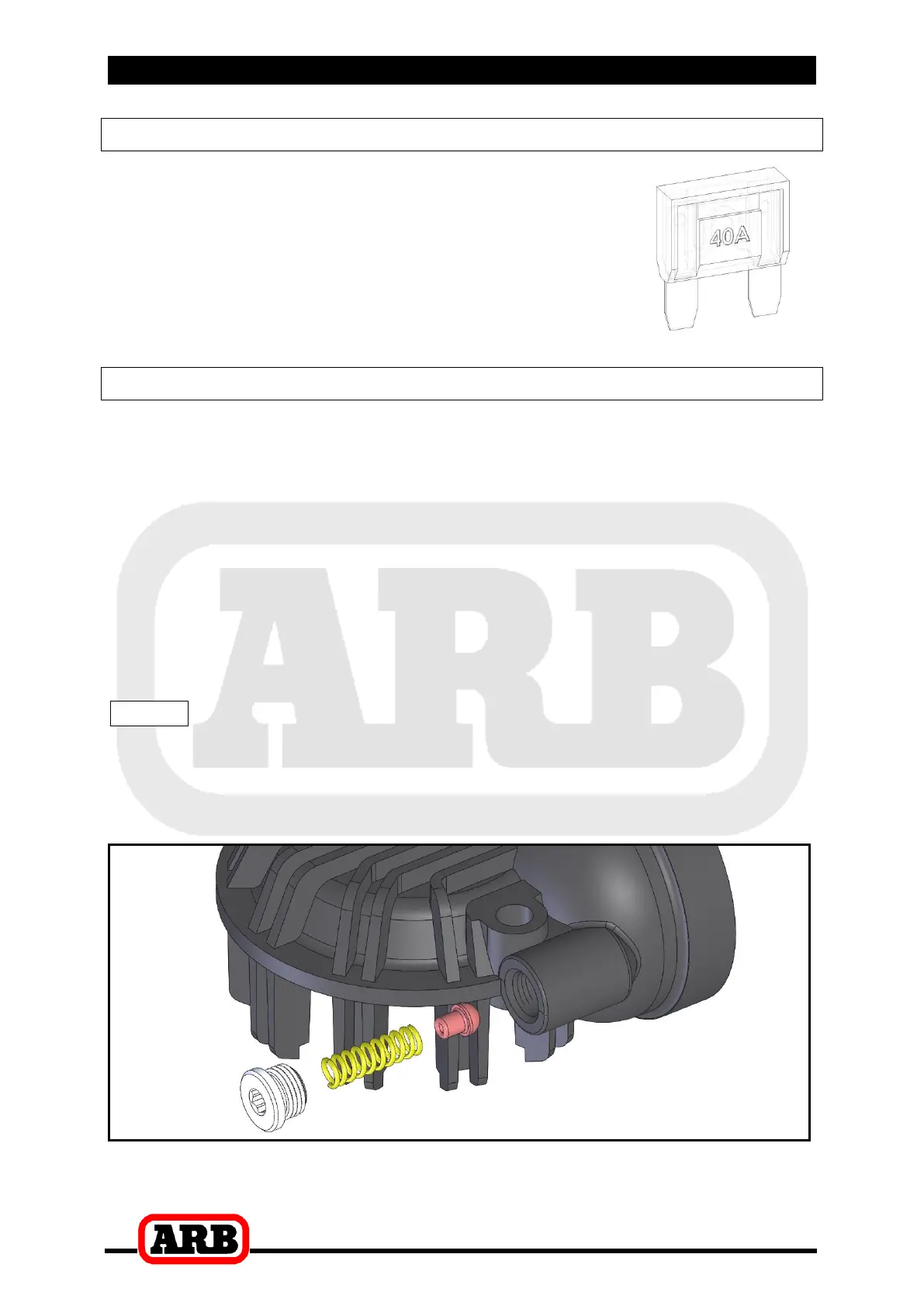

3.2 Electrical Fuse Replacement
If the electrical fuse that is installed inline with the
positive (+) power lead (RED) requires replacing, it can
be removed by opening the black rubber fuse housing
cover and pulling straight outward on the
fuse until it slides free of the fuse block. This fuse
should only be replaced with a fuse of the same type
(maxi blade type) and of the same amp rating or less.
3.3 Safety Valve Service
The CKMP12V2 Portable Air Compressor comes factory equipped with a
safety valve to relieve any excessive pressure from inside the system safely
and automatically. This pressure could occur as a result of a fault in the
pressure switch circuit, pressure generated from prolonged exposure to
direct sunlight, accidental connection to a higher source of pressure, etc. If
it becomes necessary to service this valve to change the relief pressure
(i.e., use alternate spring) or clean the valve seat then it can be easily
disassembled as follows.
Using a 4mm hex key, unscrew the safety valve fitting from its socket.
Remove the spring and poppet from inside the valve socket.
Clean or replace the valve components as required.
NOTE: Replacing safety valve parts with non-genuine ARB parts
or modifying these parts in any way could change the relief
pressure value, and is therefore not recommended.
Reassemble safety valve as below and tighten the fitting until the head
of the fitting contacts the compressor head casting.
