3.1 Compressor Outlet Port Connections
The CKMTA series compressors can be used for a vast number of compressed air
applications including, Air Locker activation, tire inflation and hand air tool operation. Each of
these compressed air applications has different requirements of the outlet port connections
and some of these setups are outlined below:
3.1.1 Connection for Air Locker Activation

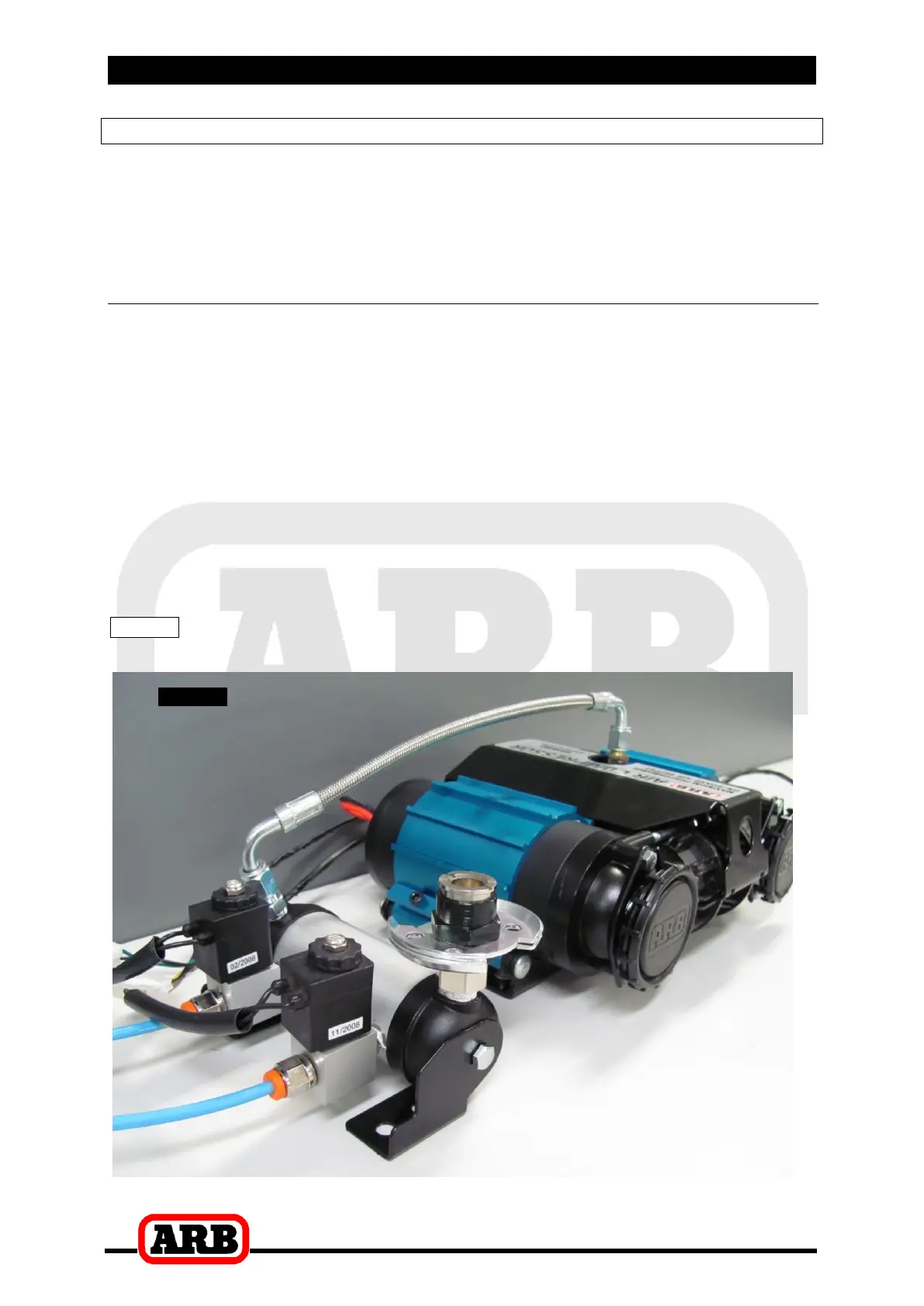

Air Locker Manifold Kit ARB #171503 is available as an optional accessory to enable the
installation of Air Locker solenoids. The Air Locker Manifold Kit is shown in Fig. 7 and
includes:
- Manifold body with mounting bracket
- 2 x 1/8"BSPP ports for installation of up to 2 x Air Locker solenoids
- 2 x 1/4" NPT ports, one to be used as an input and the second could be used for
installation of a pump up kit
- 1 x high temperature resistant Teflon stainless steel braided hose with heavy duty JIC4
fittings
- 2 x JIC4 - 1/4NPT nipples to connect the included hose to the compressor outlet and
manifold kit input
- 2 x M6 hex head bolt and nylon lock-nuts for securing the manifold kit
NOTE : The Air Locker solenoids (ARB #180103) and hose coupling (ARB #171402)
shown in Fig 7. are not included in the Air Locker Manifold Kit.
