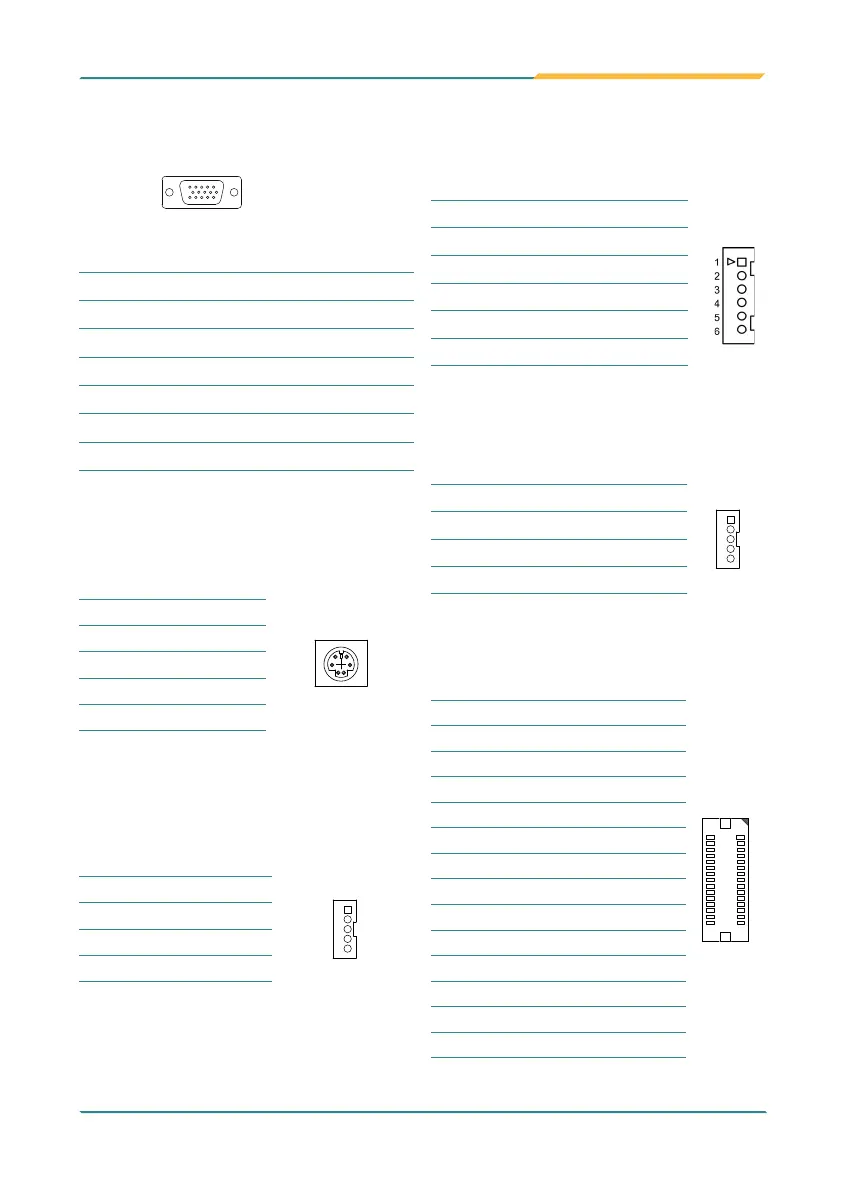

VGA1: Analog RGB Connector (20)
Connector type: VGA: D-Sub 15-pin female
Analog
RGB
15
1115
Analog RGB Connector
Pin Description Pin Description
1 RED 9 +5V
2 GREEN 10 GND
3 BLUE 11 N/C
4 N/C 12 VDDAT
5 GND 13 HSYNC
6 GND 14 VSYNC
7 GND 15 VDCLK
8 GND
INV1: LCD Inverter Connector (25)
Connector type: 2.00mm pitch 1x5 box wafer
connector.
Pin Description
1
2
3
4
5
1 +12V
2 GND
3 Backlight on/off
4 Brightness control
5 GND
KBM1: Keyboard & Mouse (21)
6-pin Mini-Din Keyboard & Mouse connector
Pin Description
3
56
4
1 KB Data
2 MS Data
3 GND
4 +5V
5 KB Clock
6 MS Clock
EKB1: External Keyboard Connector (22)
Connector type: 2.54mm pitch 1x5 box wafer
connector.
Pin Description
1
2
3
4
5
1 KB_DAT
2 KB_CLK
3 N/C
4 KB_GND
5 KB_VCC
TV1: TV-Out Connector (24)
Connector type: 2.00mm pitch 1x6-pin box wafer
connector
Composite Video
1
CVBS
2
GND
3
Unused
4
GND
5
Unused
6
GND
S-Video
1
Unused
2
GND
3
Luminance
4
GND
5
Chrominance
6
GND
LVDS1: LVDS Connector (27)
Connector type: DF-13-30DP-1.25V connector.
Pin Desc. Pin Desc.
1
2930
2
2 VDD 1 VDD
4 TX2CLK+ 3 TX1CLK+
6 TX2CLK- 5 TX1CLK-
8 GND 7 GND
10 TX2D0+ 9 TX1D0+
12 TX2D0- 11 TX1D0-
14 GND 13 GND
16 TX2D1+ 15 TX1D1+
18 TX2D1- 17 TX1D1-
20 GND 19 GND
22 TX2D2+ 21 TX1D2+
24 TX2D2- 23 TX1D2-
26 GND 25 GND
28 TX2D3+ 27 TX1D3+
30 TX2D3- 29 TX1D3-
