Arbor Technology EmCORE-i2703 - Page 12

- 12 -

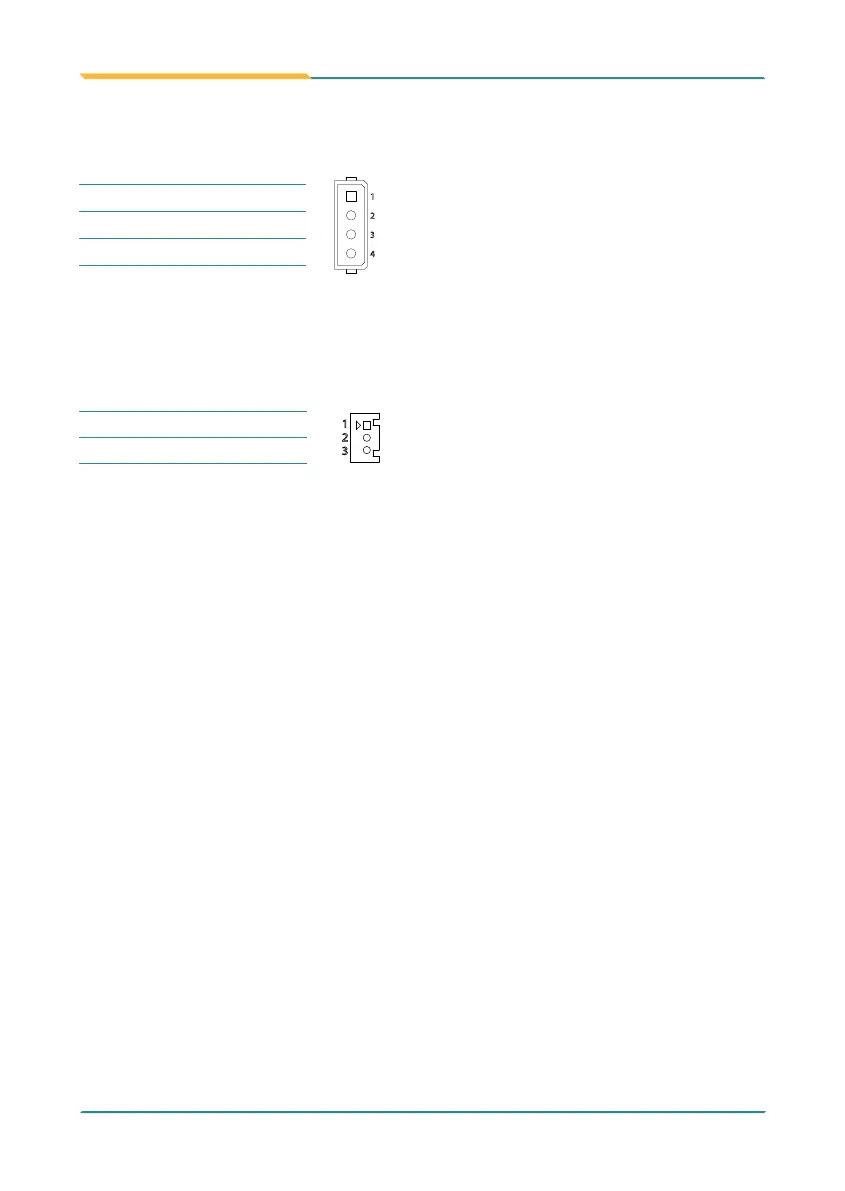

PWR1: Power Supply Connector (28)
Connector type: Big 4-pin 5.08mm pitch connector.
Pin Description
1
2
3
4
1 +5V
2 GND
3 GND
4 +12V
EATX1: ATX Feature Connector (29)
Connector type: 2.54mm pitch 1x3-pin box wafer
connector
Pin Description
1
2
3
1 PS-ON
2 GND
3 5V_SB
