Arbor Technology MB-i77Q0 - Jumper Settings

- 8 -

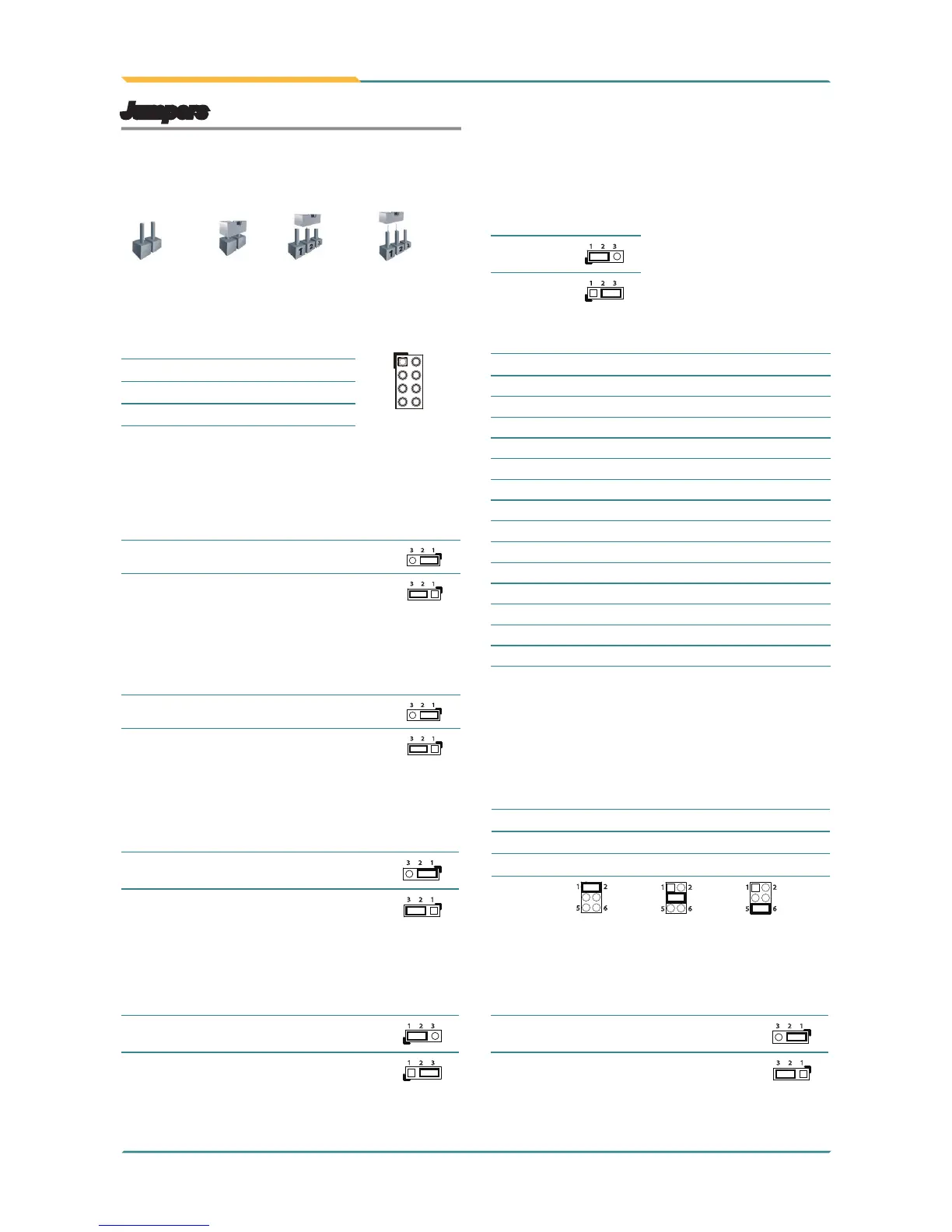

Jumpers
JRS2: COM4 RS-232/422/485 Selection (6)
Connector type: 2.00mm pitch 2x3-pin header.
Mode
RS-232
(Default)
RS-422 RS-485
1-2 Short Open Open
3-4 Open Short Open
5-6 Open Open Short
65
2
1
65
2
1
65
2
1
JKBMS1: KB/MS Power Source Selection (7)
Connector type: 2.54mm pitch 1x3-pin header.
Pin Voltage
1-2 5V (Default)
23 1
2-3 5VSB
23 1
JP12: Congures Intel
®
ME Mode (2)
Connector type: 2.54mm pitch 1x3-pin header.
Pin Description
1-2 Disable ME
23 1
2-3 Enable ME (Default)
23 1
JBIOS1: BIOS Update Port (1)
Connector type: 2.54mm pitch 2x4-pin header.
Pin Desc. Pin Desc.
8 7
2 1
1 3.3V 2 GND
3 CS0# 4 CLK
5 SO 6 SI
7 N/C 8 N/C
JP2: CMOS Setup (4)
Connector type: 2.00mm pitch 1x3-pin header.
Pin Description
1-2 Normal (Default)
23 1
2-3 Clear CMOS
23 1
Jumper Settings
The jumper is “short” (closed) when the jumper cap
is placed on pins. If not, that means the jumper is
“open”.
Pin open
Pin short
(closed)
Pin 2-3 short
(closed)
Pin 1-2 short
(closed)
JLVDS1: Congures LCD Voltage (3)
Connector type: 2.54mm pitch 1x3-pin header.
Pin Voltage
1-2 3.3V
23 1
2-3 5V (Default)
23 1
JP14: Enables/disables LVDS (5)
Connector type: 2.00mm pitch 1x3-pin header.
Pin Description
1-2 Enable
21 3
2-3 Disable (default)
21 3
JP8, JP9, JP10, JP11: Congures LVDS
features (8) (9) (10) (11)
Connector type: 2.00mm pitch 1x3-pin header.
Pin Description
1-2 On
21 3
2-3 Off
21 3
JP8 JP9 JP10 JP11 EDID Resolution
Color
Depth
Channel
Off Off
Off
Off 640 x 480 @ 60Hz 18-bit Single
On Off Off Off 800 x 600 @ 60Hz 18-bit Single
Off On Off Off 1024 x 768 @ 60Hz 18-bit Single
On On Off Off 1024 x 768 @ 60Hz 24-bit Single
Off Off On Off 1280 x 720 @ 60Hz 18-bit Single
On Off On Off 1280 x 800 @ 60Hz 18-bit Single
Off On On Off 1366 x 768 @ 60Hz 18-bit Single
On On On Off 1440 x 900 @ 60Hz 18-bit Single
Off Off Off On 1366 x 768 @ 60Hz 24-bit Single
On Off Off On 1440 x 900 @ 60Hz 24-bit Single
Off On Off On 1280 x 1024 @ 60Hz 24-bit Dual
On On Off On 1440 x 1050 @ 60Hz 24-bit Dual
Off Off On On 1600 x 900 @ 60Hz 24-bit Dual
On Off On On 1680 x 1050 @ 60Hz 24-bit Dual
Off On On On 1600 x 1200 @ 60Hz 24-bit Dual
On On On On 1920 x 1080 @ 60Hz 24-bit Dual
