ARC 200 - Page 26

23

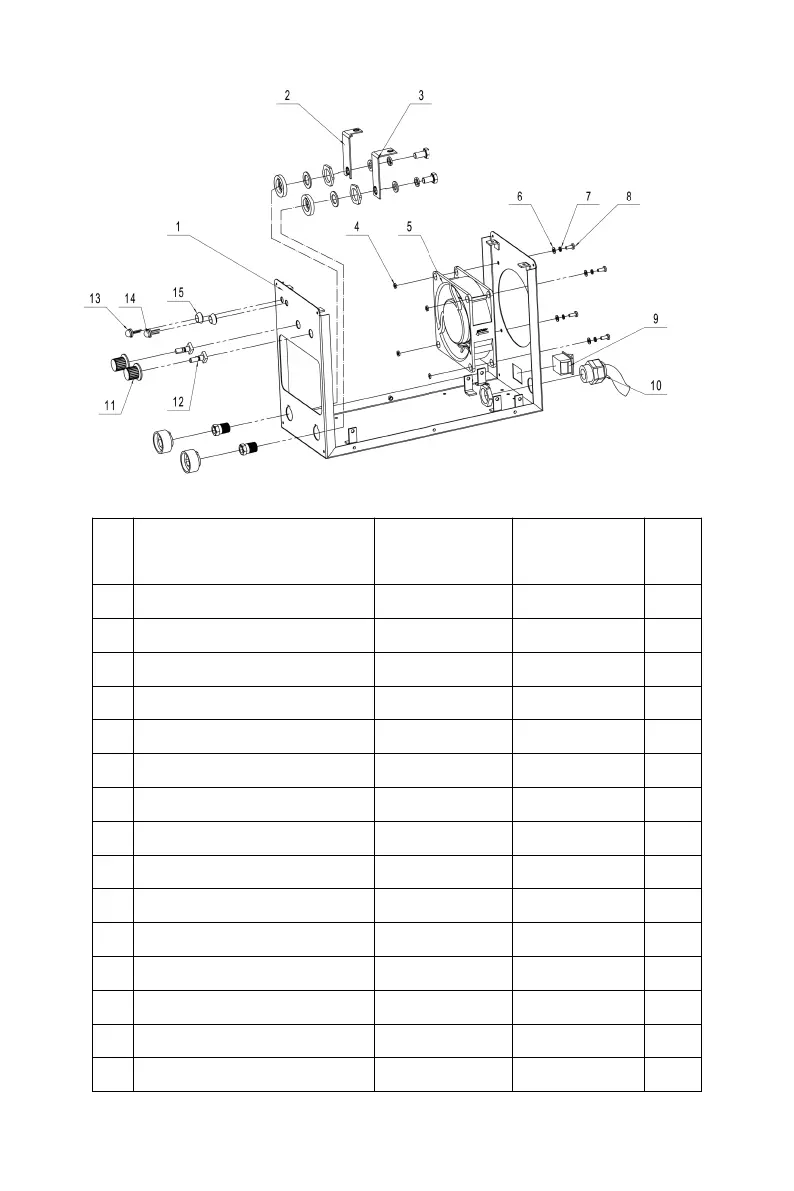

Fig. 4-9-2: Disassemble and reassembly of radiator
No.
Item
Stock no.of
160/200
Stock no.of
200/250II
Qty
1
Rack base board
262059-00003
262059-00125
1
2
Negative output terminal copper plate
766001-00089
766001-00088
1
3
Positive output terminal copper plate
766001-00150
766001-00148
1
4
Nut
779003-00020
779003-00020
4
5
Fan
746001-00040
746001-00057
1
6
Flat washer
779007-00017
779007-00017
4
7
Spring washer
779007-00006
779007-00006
4
8
Gb_cross_screws_type4
779002-00011
779002-00011
4
9
Rocker switch
745002-00006
745002-00068
1
10
Cable water proof clamp connector
773002-00008
773002-00025
1
11
Potentiometer knob
720031-00078
763005-00078
2
12
Potentiometer
720031-00042
779007-00042
2
13
Led(green)
715002-00016
779007-00016
1
14
Led(yellow)
715002-00014
779002-00014
1
15
Led cap
740008-00005
720031-00005
2
Table4-9-2: Main components list of rack
