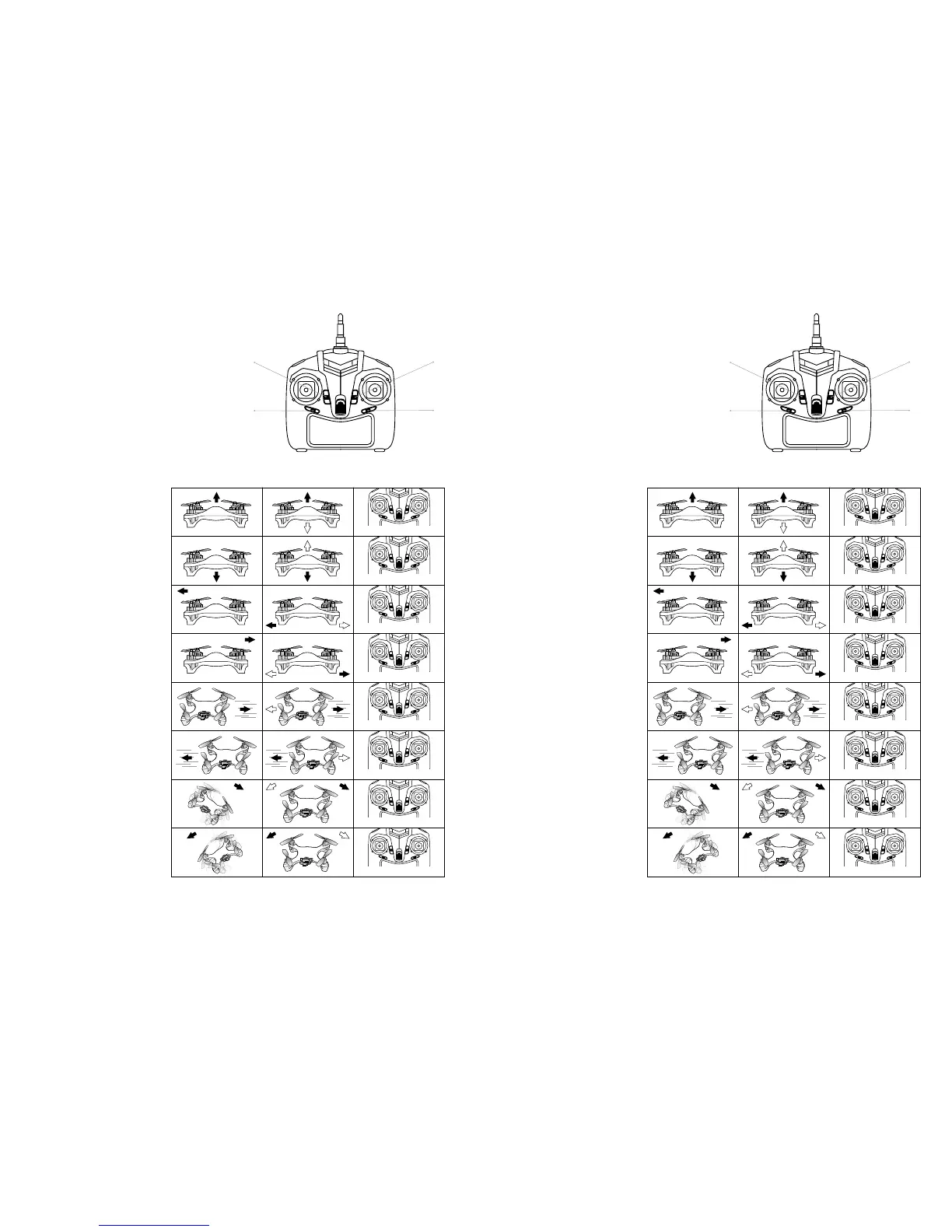

Controller functions – trim tuning
Mode 1:
a) Upward/Downward ne tuning
b) Left/Right spin ne tuning
c) Forward/Backward ne tuning
d) Left side/Right side ne tuning
Mode 2:
a) Upward/Downward ne tuning
b) Left side/Right side ne tuning
c) Forward/Backward ne tuning
d) Left/Right spin ne tuning
Trimming: Trimming:
Downward trim Downward trim
Upward trim Upward trim
Backward trim Backward trim
Forward trim Forward trim
Left side trim Left side trim
Right side trim Right side trim
Left spin trim Left spin trim
Right spin trim Right spin trim
a a
b b
c c
d d
Upward Upward
Downward Downward
Forward Forward
Backward Backward
Downward trimmer Downward trimmer
Upward trimmer Upward trimmer
Backward trimmer Backward trimmer
Forward trimmer Forward trimmer
Leftside trimmer Leftside trimmer
Rightside trimmer Rightside trimmer
Left spin trimmer Left spin trimmer
Right spin trimmer Right spin trimmer
Note: it is best to manual trim the Arcade drone while it is hovering. Note: it is best to manual trim the Arcade drone while it is hovering.
