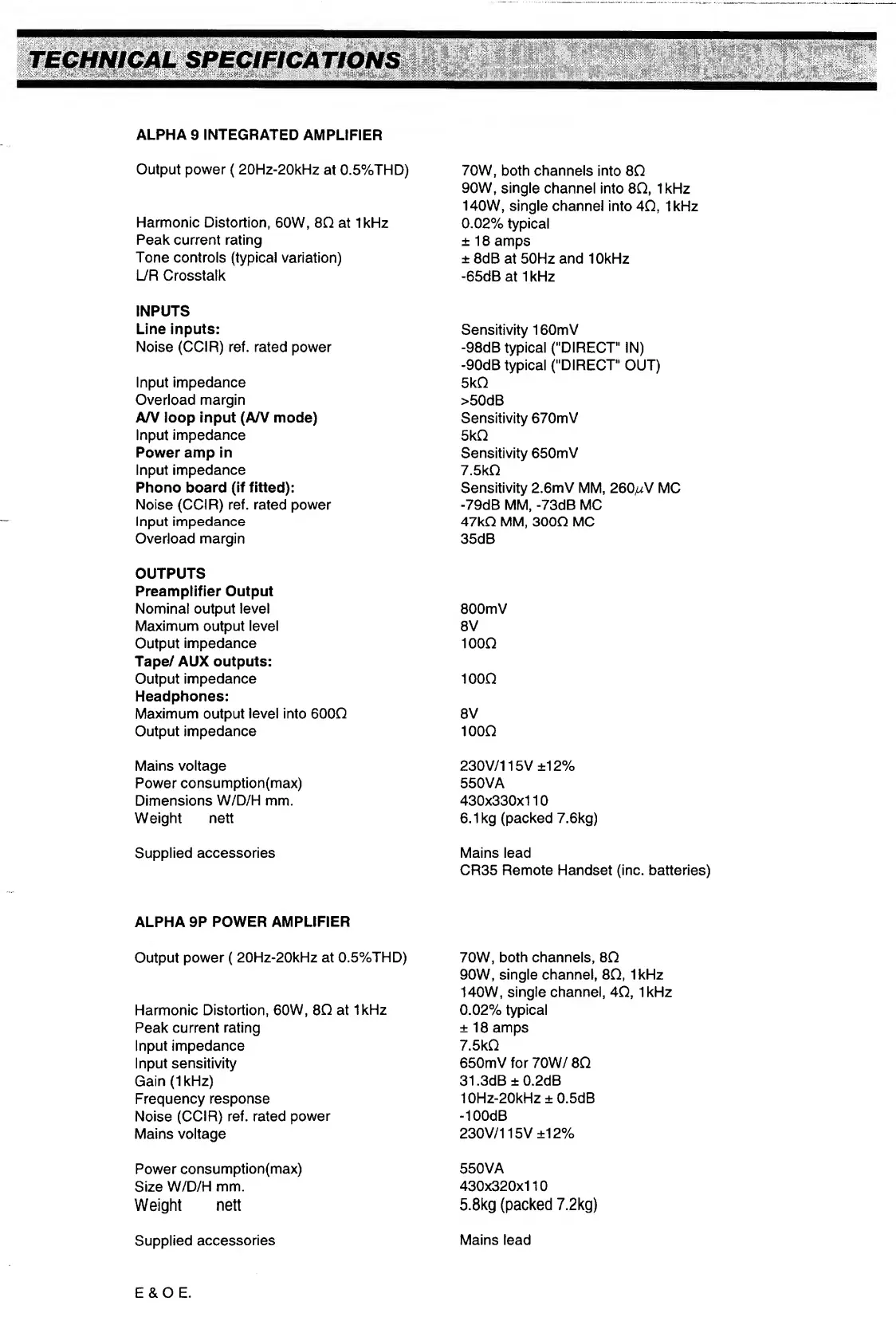

TECHNICAL SPECIFICATIONS
.tfas
ALPHA 9 INTEGRATED AMPLIFIER
Output power ( 20H2-20kHz at 0.5%THD)
Harmonic Distortion, 60W, 80 at 1kHz
Peak current rating
Tone controls (typical variation)
UR Crosstalk
INPUTS
Line inputs:
Noise (CCIR) ref. rated power
Input impedance
Overload margin
A/V loop input (AA^ mode)
Input impedance
Power amp in
Input impedance
Phono board (if fitted):
Noise (CCIR) ref. rated power
Input impedance
Overload margin
OUTPUTS
Preamplifier Output
Nominal output level
Maximum output level
Output impedance
Tape/ AUX outputs:
Output impedance
Headphones:
Maximum output level into 6000
Output impedance
Mains voltage
Power consumption(max)
Dimensions W/D/H mm.
Weight nett
Supplied accessories
ALPHA 9P POWER AMPLIFIER
Output power ( 20Hz-20kHz at 0.5%THD)
Harmonic Distortion, 60W, 80 at 1kHz
Peak current rating
Input impedance
Input sensitivity
Gain (1kHz)
Frequency response
Noise (CCIR) ref. rated power
Mains voltage
Power consumption(max)
Size W/D/H mm.
Weight nett
Supplied accessories
70W, both channels into 80
90W, single channel into 80, 1kHz
MOW, single channel into 40, 1kHz
0.02% typical
± 18 amps
± 8dB at 50Hz and 10kHz
-65dB at 1kHz
Sensitivity 160mV
-98dB typical fDIRECT’* IN)
-90dB typical ("DIRECT” OUT)
5kO
>50dB
Sensitivity 670mV
5kO
Sensitivity 650mV
7.5kO
Sensitivity 2.6mV MM, 260/u\/ MC
-79dB MM, -73dB MC
47kO MM, 3000 MC
35dB
800mV
8V
1000
1000
8V
1000
230V/115V ±12%
550VA
430x330x110
6.1kg (packed 7.6kg)
Mains lead
CR35 Remote Handset (inc. batteries)
70W, both channels, 80
90W, single channel, 80, 1kHz
MOW, single channel, 40, 1kHz
0.02% typical
± 18 amps
7.5kO
650mV for70W/ 80
31.3dB±0.2dB
10Hz-20kHz±0.5dB
-lOOdB
230V/115V ±12%
550VA
430x320x110
5.8kg (packed 7.2kg)
Mains lead
