Arcam CD73 Service Manual

CD73 COMPACT DISC PLAYER
- 4 -
DISASSEMBLY INSTRUCTIONS
1. Remove machine screws M 4.0 x 6.0 ( 1 to 4 ) from the side panels.
Remove tapping screw 3.0 x 8.5 ( 5 )from the back panel.
Refer to Figure No.1.

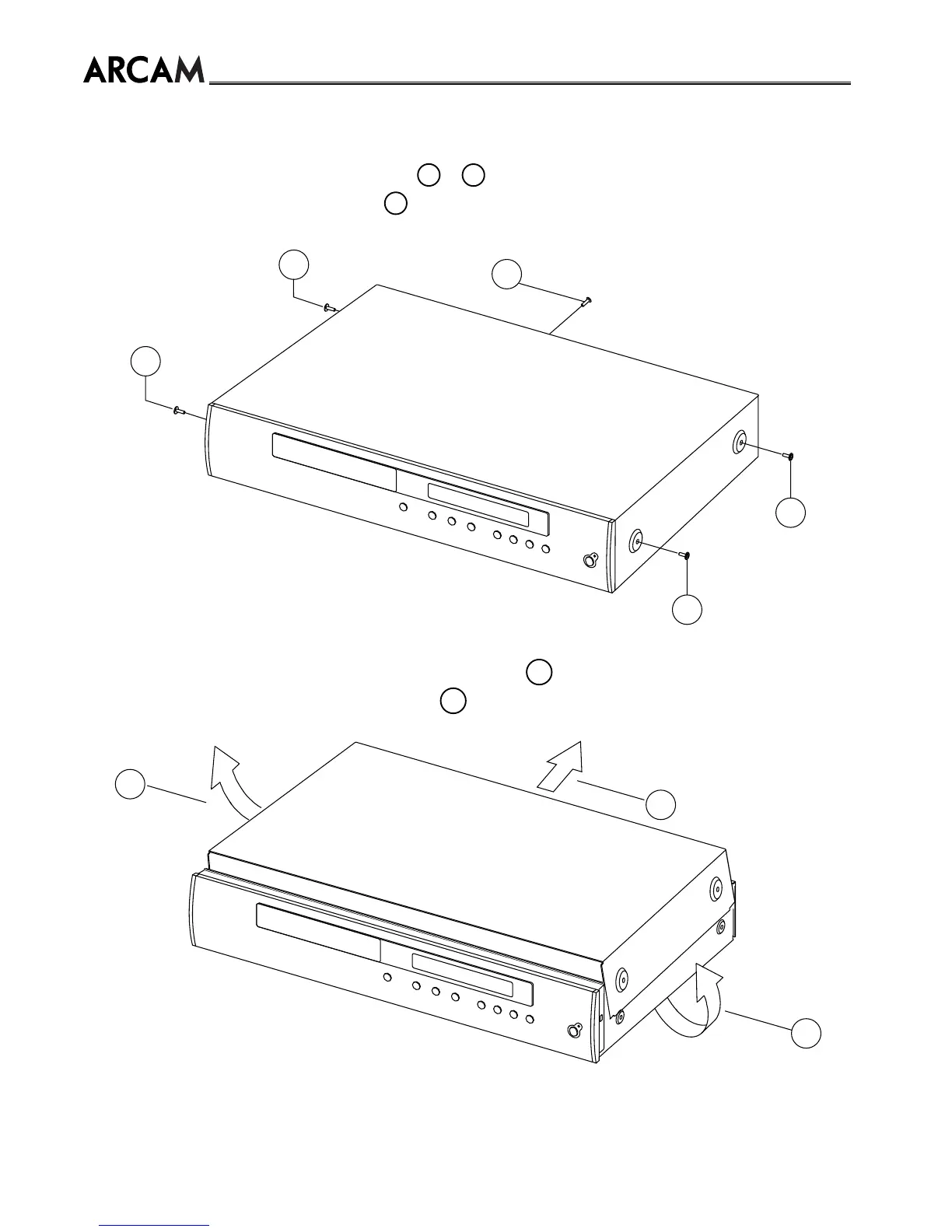

Figure No.1
2. Pull both sides of the TOP COVER slightly outwards 6 and tilt approx. 35˚ and then remove
in the direction as indicated by the arrow 7 . Refer to Figure No.2.
Figure No.2.
5
4
1
2
3
7
6
6

Arcam CD73 Specifications

General

Frequency Response	20Hz - 20kHz ±0.5dB
Output Level	2.2V RMS
Digital Output	Coaxial and optical
DAC	Wolfson WM8740
Dynamic Range	100dB
Dimensions	430mm x 290mm
