Arcam Delta 70.2 User Manual

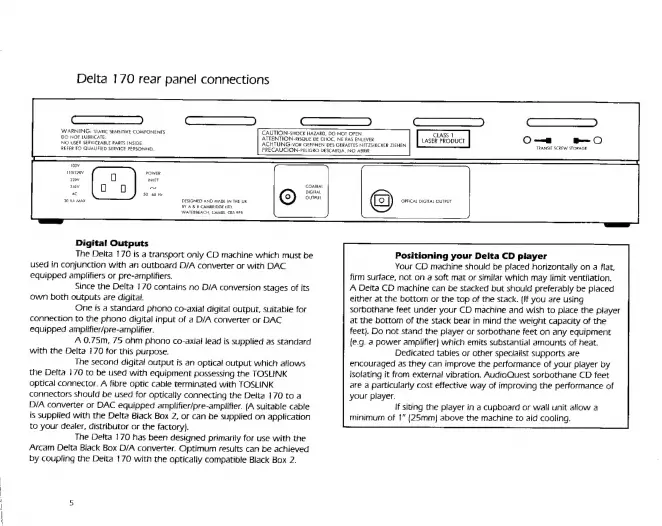

Delta 170 rear panel connections
o NELLO)... LLL D ML. SS
WARNING: SIATIC SENSITIVE COMPONENTS
DO NOT LUBRICATE.
NO USER SERVICEABLE PARTS INSIDE
REFER TO QUALIFIED SERVICE PERSONNEL
100v
110/120V POWER
220v INEET
240v COAXIAL.
ac 50 60 Hr
A VA MAX DESIGNED AND MADE IN THE UK
BY A & R CAMBRIDGE ITD.
WATERBEACH, CAMBS. CBS 9PR.
DIGITAL
OUTPUT
Digital Outputs
The Deita 170 is a transport only CD machine which must be
used in conjunction with an outboard D/A converter or with DAC
equipped amplifiers or pre-amplifiers.
Since the Delta 170 contains no D/A conversion stages of its
own both outputs are digital.
One is a standard phono co-axial digital output, suitable for
connection to the phono digital input of a D/A converter or DAC
equipped amplifier/pre-amplifier.
A 0.75m, 75 ohm phono co-axial lead is supplied as standard
with the Delta 170 for this purpose.
The second digital output is an optical output which allows
the Delta 170 to be used with equipment possessing the TOSLINK
optical connector. A fibre optic cable terminated with TOSLINK
connectors should be used for optically connecting the Delta 170 to a
D/A converter or DAC equipped amplifier/pre-amplifier. (A suitable cable
is supplied with the Delta Black Box 2, or can be supplied on application
to your dealer, distributor or the factory].
The Delta 170 has been designed primarily for use with the
Arcam Delta Black Box D/A converter. Optimum results can be achieved
by coupling the Delta 170 with the optically compatible Black Box 2.
CAUTION-SHOCK HAZARD, DO NOT OPEN
ATTENTION-RISQUE DE CIIOC, NE PAS ENLEVER
ACHTUNG-VOR OEFFNEN DES GERAETES NETZSIECKER ZIEHEN
PRECAUCION-PELIGRO DESCARGA, NO ABRIR
CLASS 1
LASER PRODUCT O —n a ©
TRANSIT SCREW STORAGE
OPTICAL DIGITAL OUTPUT
Positioning your Delta CD player
Your CD machine should be placed horizontally on a flat,
firm surface, not on a soft mat or similar which may limit ventilation.
A Delta CD machine can be stacked but should preferably be placed
either at the bottom or the top of the stack. (If you are using
sorbothane feet under your CD machine and wish to place the player
at the bottom of the stack bear in mind the weight capacity of the
feet}. Do not stand the player or sorbothane feet on any equipment
[e.g. a power amplifier) which emits substantial amounts of heat.
Dedicated tabies or other specialist supports are
encouraged as they can improve the performance of your player by
isolating it from external vibration. AudioQuest sorbothane CD feet
are a particularly cost effective way of improving the performance of
your player.
If siting the player in a cupboard or wall unit allow a
minimum of 1" (25mm) above the machine to aid cooling.
