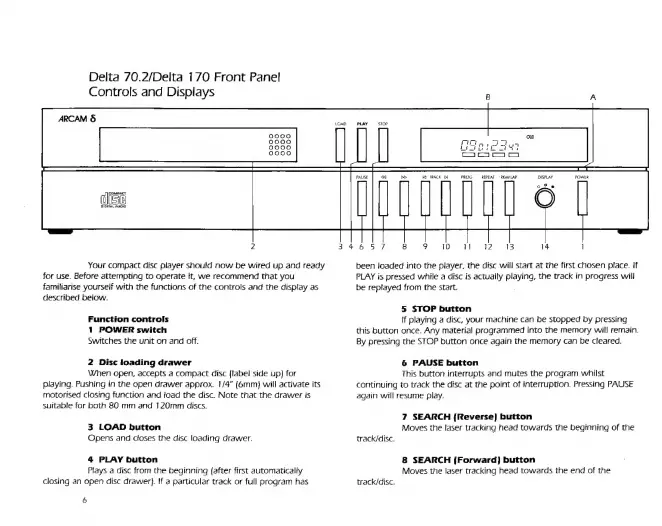

Delta 70.2/Delta 170 Front Panel
Controls and Displays
COMPACT
WISE
DIGITAL AUDIO
Your compact disc player should now be wired up and ready
for use. Before attempting to operate it, we recommend that you
familiarise yourself with the functions of the controls and the display as
described below.
Function controls
1 POWER switch
Switches the unit on and off.
2 Disc loading drawer
When open, accepts a compact disc (label side up) for
playing. Pushing in the open drawer approx. 1/4" (6mm) will activate its
motorised closing function and load the disc. Note that the drawer is
suitable for both 80 mm and 120mm discs.
3 LOAD button
Opens and closes the disc loading drawer.
4 PLAY button
Plays a disc from the beginning (after first automatically
closing an open disc drawer}. If a particular track or full program has
6
K TRACK D4 PROG REPEAT — REM/LAP DISPLAY POWER
o 9 e.
34657 8 9 id 1l 22 13 14 1
been loaded into the player, the disc will start at the first chosen place. If
PLAY is pressed while a disc is actually playing, the track in progress will
be replayed from the start.
5 STOP button
If playing a disc, your machine can be stopped by pressing
this button once. Any material programmed into the memory will remain.
By pressing the STOP button once again the memory can be cleared.
6 PAUSE button
This button interrupts and mutes the program whilst
continuing to track the disc at the point of interruption. Pressing PAUSE
again will resume play.
7 SEARCH (Reverse) button
Moves the laser tracking head towards the beginning of the
track/disc.
8 SEARCH [Forward] button
Moves the laser tracking head towards the end of the
track/disc.
