Archgard DV - 520 - Framing Dimensions

DV - 520
11

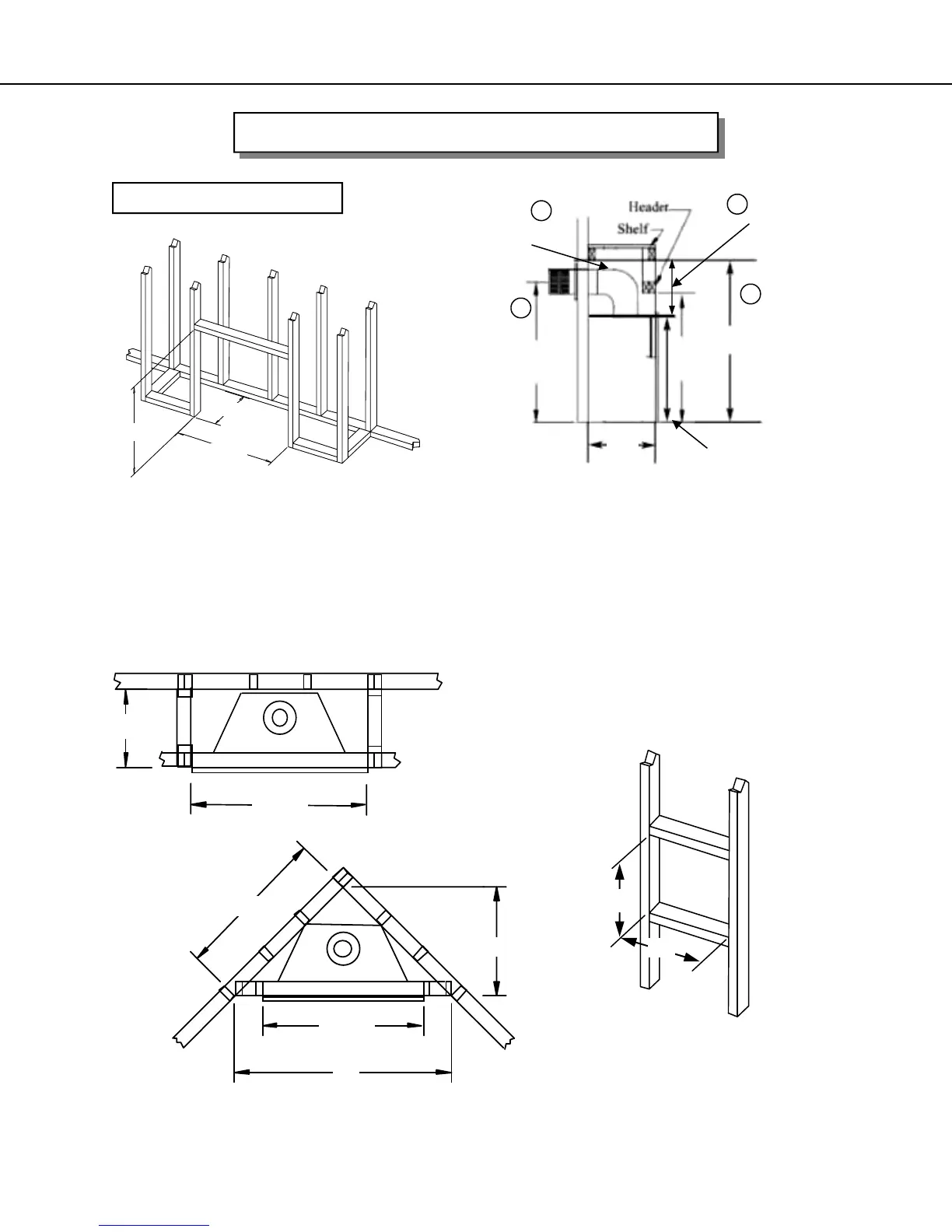

FRAMING DIMENSIONS
FRAMING DIMENSIONS
38”
16-¼”
38-½”
26-¼”
38”
54”
TERMINATION
FRAMING
11”
10”
38”
*32-¼”
16-¼”
36”
13⅜”
1
2
3
4
2”
WHEN INSTALLING A SHELF OVER THE TOP OF REAR /
TOP VENT MODEL DV520, THE FOLLOWING APPLIES:
1. Minimum height from floor to center of top vent must be
36” (914mm)
2. Minimum height from top of vent to combustible material is
2” (51mm)
3. Minimum height from floor to combustible materials used
for frame / shelf is 41½” (1054mm)
4. Minimum height from top of unit (not stand-offs) to combus-
tible material for frame / shelf is 13⅜” (341mm)
28⅛”
31”
41½”
16¼”
