Archgard DV - 520 - Dimensions and Clearances

DV - 520
7

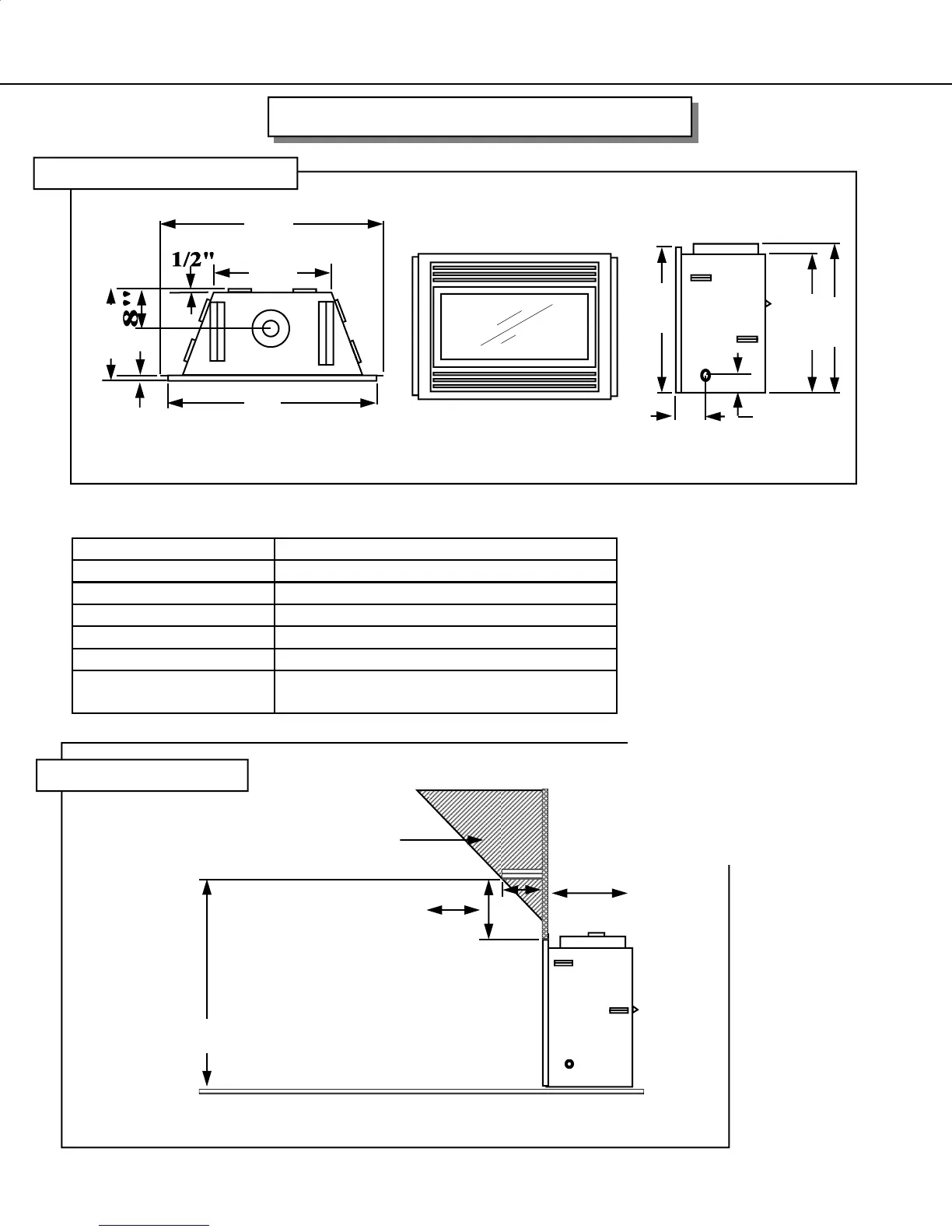

DIMENSIONS AND CLEARANCES
APPLIANCE DIMENSIONS
1/2”
SIDE VIEW FRONT VIEW TOP VIEW
37 3/4”
16”
4 3/4”
2 3/4”
BACK 0” to stand-offs
SIDES 0” to stand-offs
TOP 0” to stand-offs
BOTTOM 0”
ADJACENT SIDE WALL 0” to side of faceplate
MANTLE see diagram
VENT 1” to outside side and bottom surface,
2” to outside top surface.
CLEARANCES TO COMBUSTIBLES:
Combustible mantle allowed in shaded area.
Mantle extension may be increased 1” (25mm)
for each additional 1” (25mm) increase in
clearance height.
Minimum Height From Top Surround:
6 1/4” (159 mm) with 8” mantle.
Minimum Height From Bottom of Appliance:
35” (890 mm) with 8” mantle.
MANTLE CLEARANCE
16 1/2”
28 3/4”
28 1/8”
30 3/8”
36”
8” (203 mm)
NOTE: Low profile wooden
crowns and moldings above the
unit are not considered as
mantles. I.E. 1” or less protru-
sions on the upper mantle facing
are acceptable.
