DV - 520
18

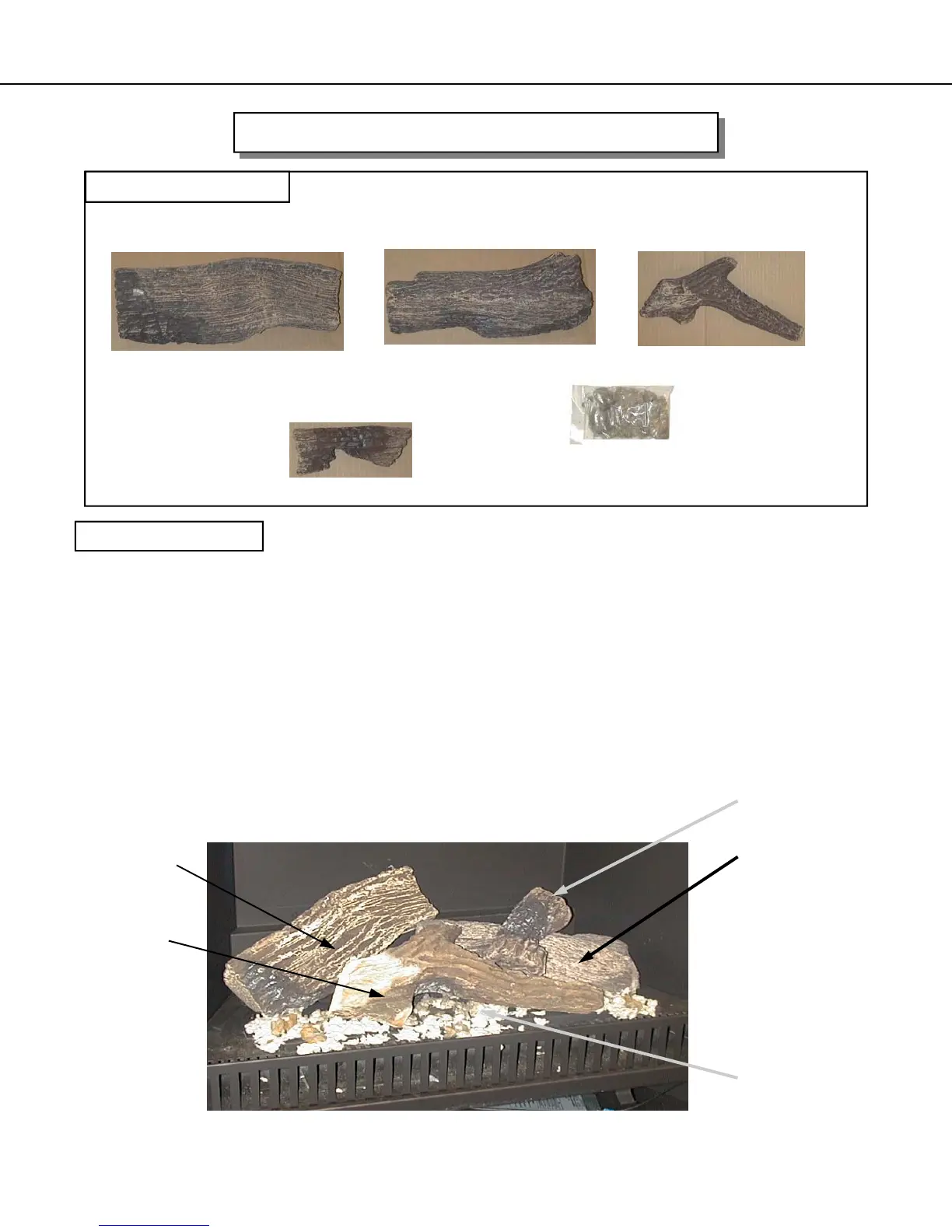

LOG PLACEMENT
WARNING: Do not place logs in any other configuration than that
shown. Under no circumstances are logs to be modified.
INSTALLATION INSTRUCTIONS Cont...
Rear Left log
Front Center log
Right Top log
Embers
LOGS AND EMBERS
Embers
Rear Left log
Right Top log
Rear Right log
Front Center log
Rear Right log
1) Place the Rear Right log on the locator pins that are on the back right of the main burner.
2) Place the Rear Left log on the pin that is on the back left of the main burner, and position
the log over the Rear Right log that you first put into position.
3) Place the Front Center log onto the two most forward pins to you, or the front of the
burner. The branch must rest on the Right & Left rear logs.
4) Place the Right Top log on top of the Front Center log, and Rear Right log.
5) Carefully place the ember chunks on top of the burner. DO NOT cover the entire surface
of the burner. DO NOT allow embers to obstruct the burner ports. Use embers sparingly
when using PROPANE fuel.
To Next Page
