Archgard OPTIMA 30 - 1 - Wiring Diagrams

OPTIMA 30-1 22

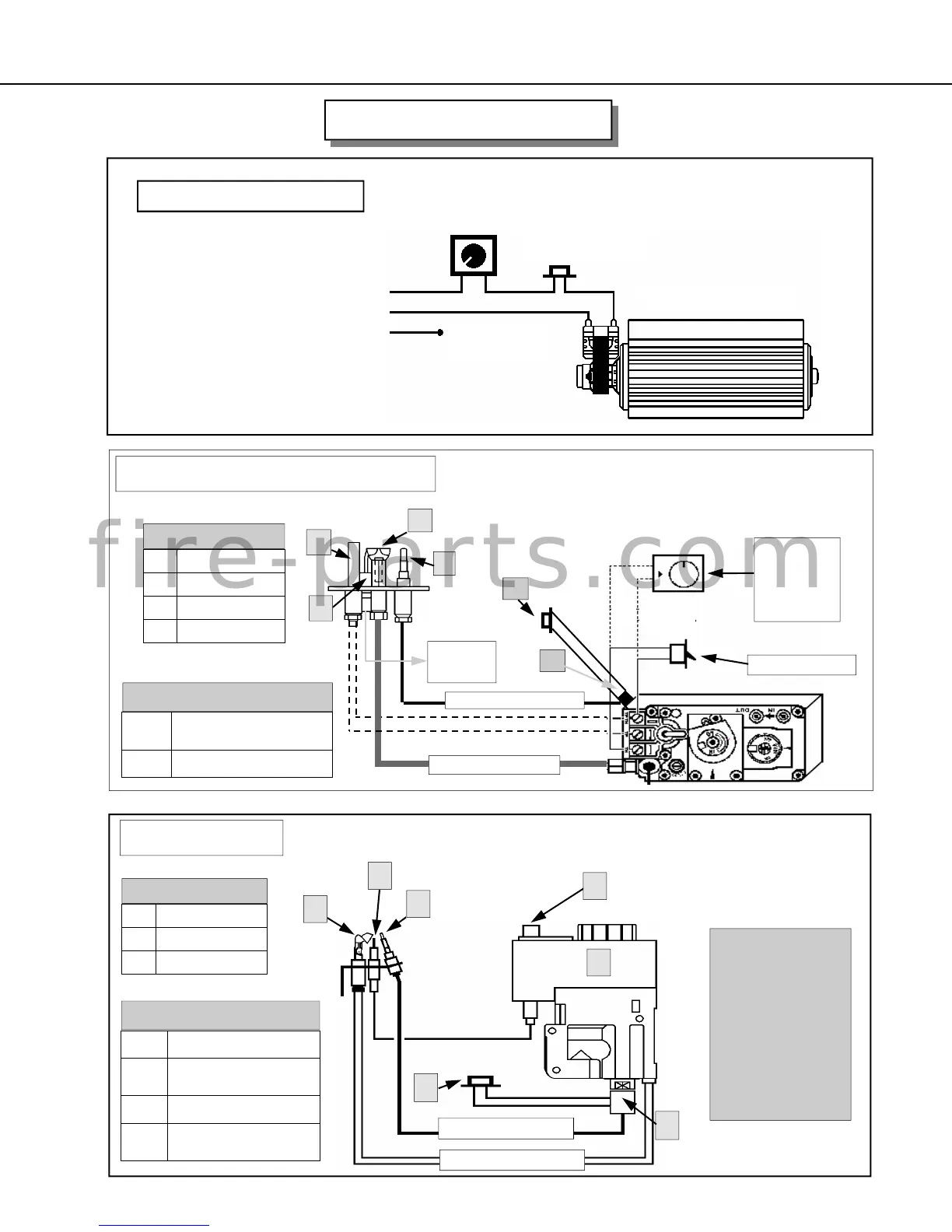

WIRING DIAGRAMS
A ELECTRODE
B THERMOPILE
C PILOT CAP
D THERMOPILE
PILOT ASSEMBLY
B
A
C
D
WIRE TO
PIEZO
(SPARKER)
ON/OFF SWITCH
E
F
E “SPILL SWITCH”
350
0
F (177
0
C)
F INTERRUPTER BLOCK
OTHER COMPONENTS
THERMOCOUPLE LEAD
PILOT SUPPLY TUBE
OPTIONAL WALL
SWITCH, WALL
THERMOSTAT
OR REMOTE
CONTROL
AUTOMATIC “MILLIVOLT” VALVE
CONVECTION BLOWER
SPEED CONTROL
LINE
CONVECTION BLOWER
GROUND
110F (43ºC) N.O.
THERMAL SNAP
SWITCH
NEUTRAL
ELECTRICAL
BOX
120 VAC
A ELECTRODE
B THERMOPILE
C PILOT CAP
PILOT ASSEMBLY
THERMOPILE LEAD
C
A
B
PILOT SUPPLY TUBE
D
F
E
D PIEZO (SPARKER)
E EURO SIT 630 GAS
CONTROL VALVE
F INTERRUPTER BLOCK
G “SPILL SWITCH”
350
0
F (177
0
C)
OTHER COMPONENTS
G
Note:
A Manual Valve
System operates
as an “internal”
thermostat.
Therefore a op-
tional device is
not required.
MANUAL VALVE
