Archgard OPTIMA 30 - 1 - Dimensions and Clearances

OPTIMA 30-1 7
A
24-1/4” (616 mm)
B
16” (406 mm)
C
11-3/8” (289 mm)
D
13-7/8” (352 mm)
With overside steel surround
E
38” (965 mm)
F
26-1/2” (673 mm)
G
18-3/4” (476 mm)
H
20-3/8” (518 mm)
I
21-7/8” (556 mm)
J
1-3/4” (45 mm)
K
5-5/8” (143 mm)
E
44-1/2” (1130mm)
F
30” (762 mm)
With standard aluminum surround
Flue Collar - 4” (102 mm) diameter

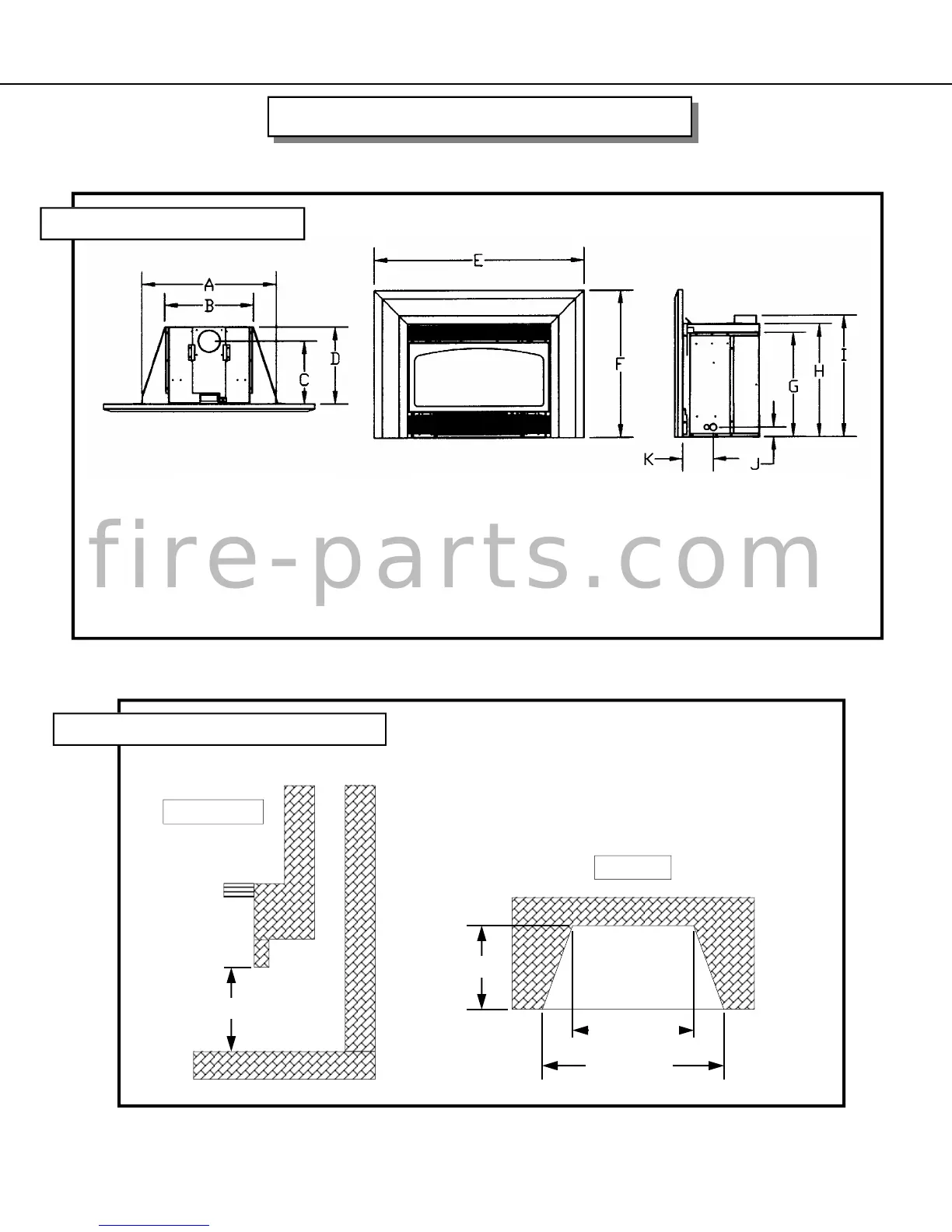

DIMENSIONS AND CLEARANCES
MINIMUM FIREPLACE DIMENSIONS
18” (460 mm)
26” (660 mm)
14” (356 mm)
20-1/2” (521 mm)
SIDE VIEW
TOP VIEW
APPLIANCE DIMENSIONS
