OPTIMA 30-1 25
• Remove the gas component assembly, see above.
• Mark all wires to be removed for proper reassembly. CAUTION: Wiring errors cause
improper and dangerous operation.
• The convection blower is located at the bottom of the appliance at the back. Remove the
three screws holding the blower.
• Lift the blower out and disconnect the wires from the blower.
REPLACING CONVECTION BLOWER
IF YOUR GLASS BREAKS
In the event your glass cracks or breaks, it must be replaced by the exact same size and mate-
rial. It is made from high temperature ceramic material. See replacement parts list and contact
your nearest Archgard dealer.
• Remove door and carefully remove all traces of glass and gasket material.
• Replacement requires Ceramic glass part #307-0023, gasket part #314-0000 and sealer
part #319-0005.
• Install new glass with new gasketing in place. The “thicker” side of the gasket fits against
the fireplace opening.
• Hold glass in place by using the sealer between gasket and door. Use sparingly so that no
excess will be visible. DO NOT PUT ANY SEALER BETWEEN GLASS AND UNIT OPEN-
ING.
• Replace the door carefully making sure all three clamps are closed.
SERVICING Cont...

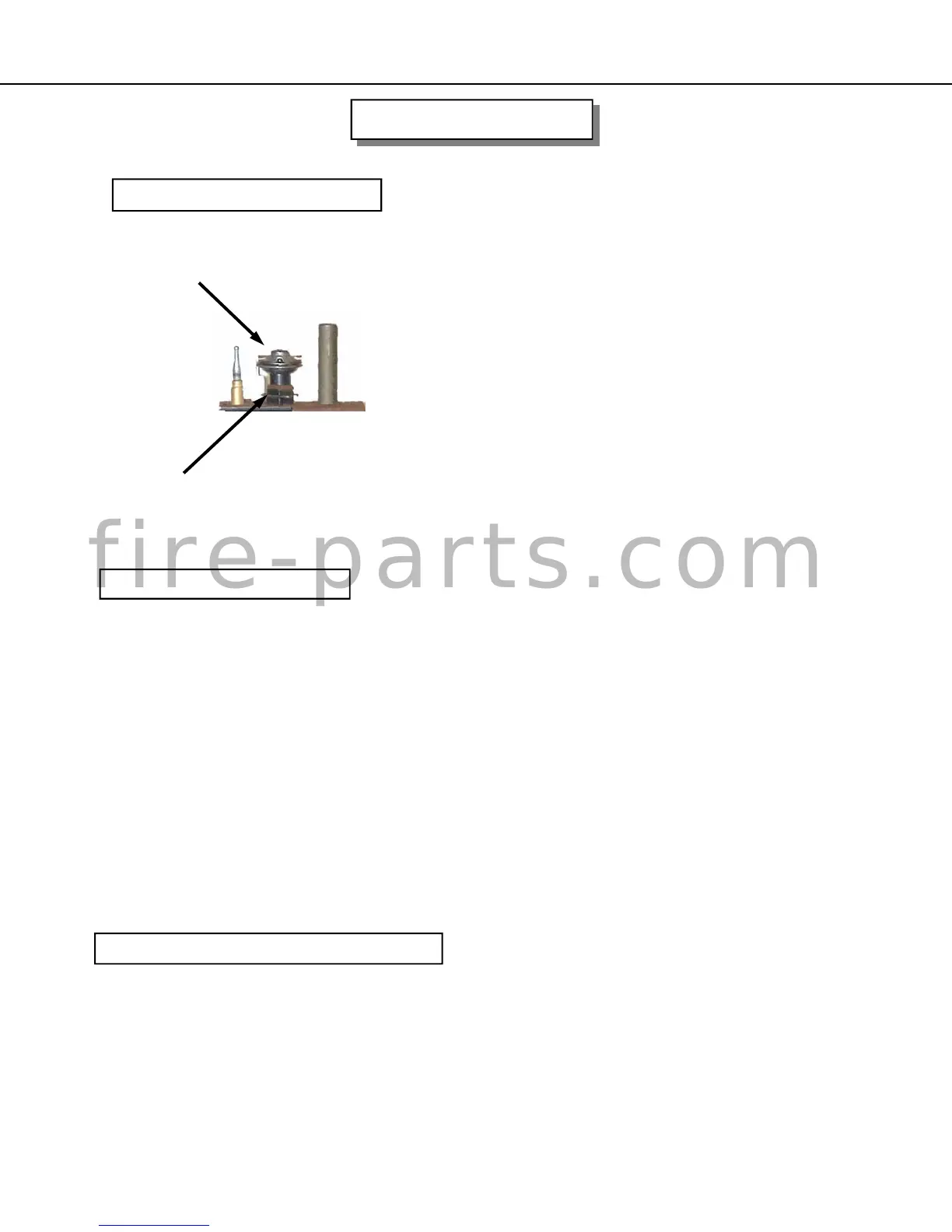

REPLACING PILOT ORIFICE
Pilot burner
head
The pilot orifice sits underneath he pilot burner head.
Remove the head just by pulling it off. You may have
to wiggle it a bit. DO NOT REMOVE THE RETAINING
CLIP. Use a 5/32 Allen wrench to remove the orifice.
Replace in reverse order. There is a notch in the head
to line it up correctly on replacement. Ensure the head
is pushed down all the way.
Retaining
clip
