Optima 45 - 3 41

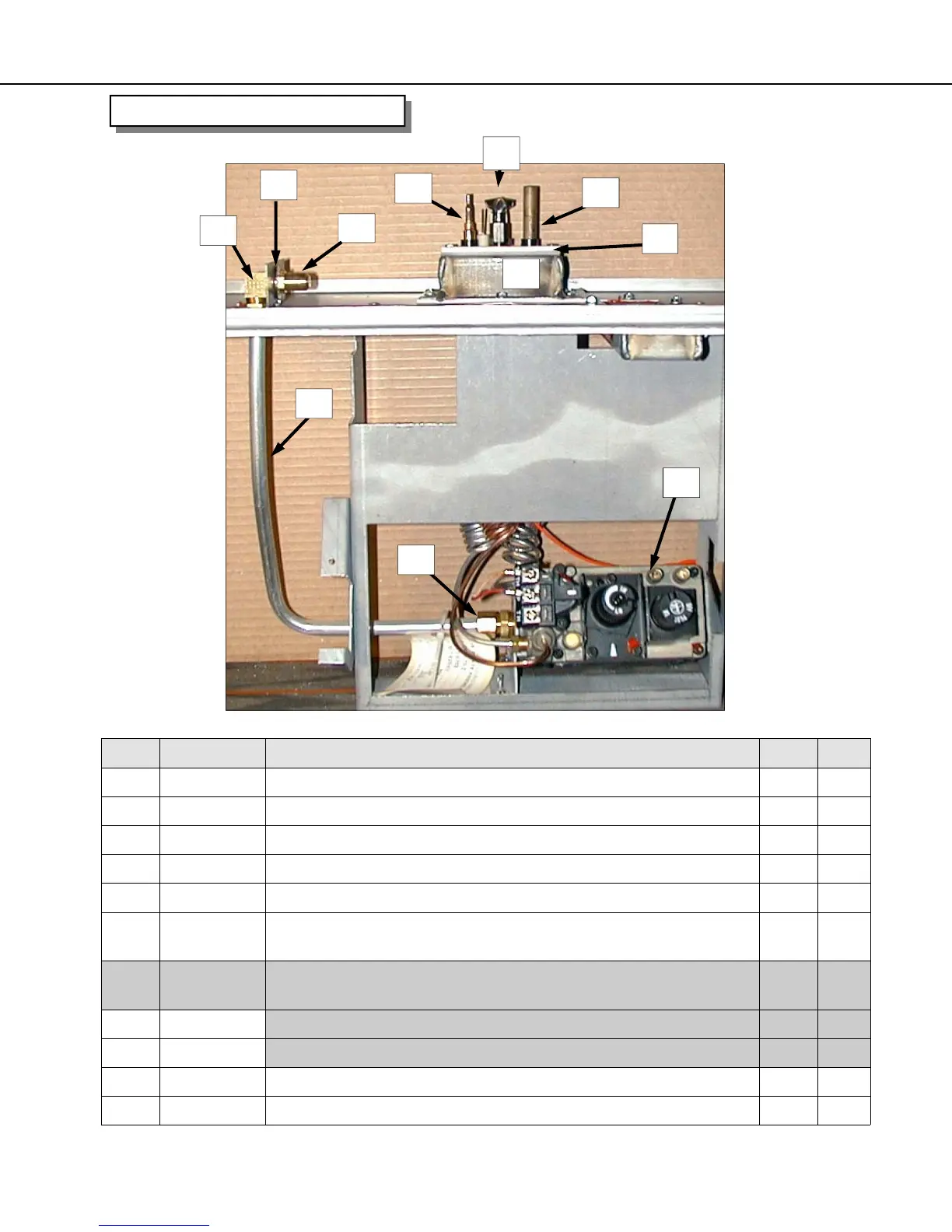

VALVE TRAY ASSEMBLY
Item # Item Description Qty Unit
A 308-0013 Valve NOVA SIT 820 (0.820.652) Natural Gas 1 EA
B 301-0000 Straight ⅜” (9.5 mm) compression ⅜” (9.5 mm) MNPT 1 EA
C 301-0009 Tubing ⅜” (9.5 mm) Dia. Aluminum (Main Supply Tube) 14.5 IN
D 301-0001 Elbow ⅜” (9.5 mm) compression 90 deg. ⅛” (3 mm) MNPT 1 EA
E 300-0020 Washer Flat Zinc Plated 2 EA
F 301-0068 Orifice (Main Burner Orifice) Drill to #37 DMS (2.66 mm dia.)
For Natural Gas
1 EA
G 308-0093 Pilot Assembly. Convertible NG/LP Base Mount. Includes the
items listed below…….
1 EA
H Part # 308-0057 - Thermocouple (replacement) 1 EA
I Part # 308-0056 - Thermopile (replacement) 1 EA
J 314-0127 Pilot Assembly Box Gasket 1 EA
K 727-0207 PILOT Assembly Box 1 EA
K
E
A
G
F
D
H
I
J
B
C
