Side Mount Installation
The LI-2B operator may be mounted sideways with the long side against the pier/post for
extra flexibility.

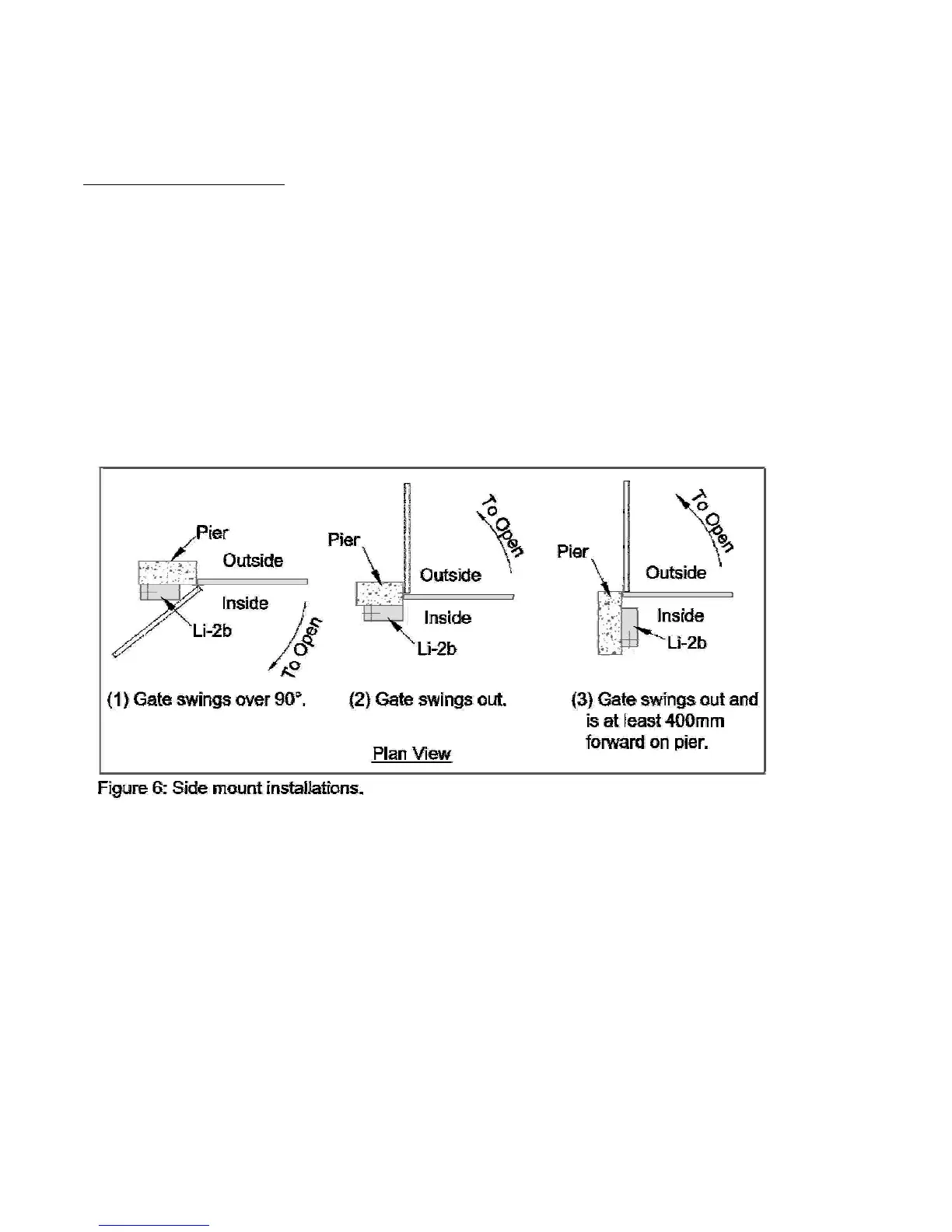

This feature is very useful for situations where (Refer to figure 6)
• The gate must swing further than 90 degrees
• The gate swings outwards
• The gate swings outward and it is positioned at least 400mm forward of the back of
the pier/post
Note: See section on out swing installation.
Each LI-2B operator should be fitted to the pier/post with its output shaft close to the gate
hinge. With this in mind the “Standard Installation” instructions may now be followed.
Special covers are supplied to suit this type of installation.
LI-2B Installation Manual
