Continue installing wires per the following diagrams,
using the Ring Terminals and Butt Connectors where
needed.
Follow your alternator wiring harness connections
carefully. The wiring harness instructions are included
within this manual and can also be enlarged in the app
by long pressing the wiring harness instruction image.

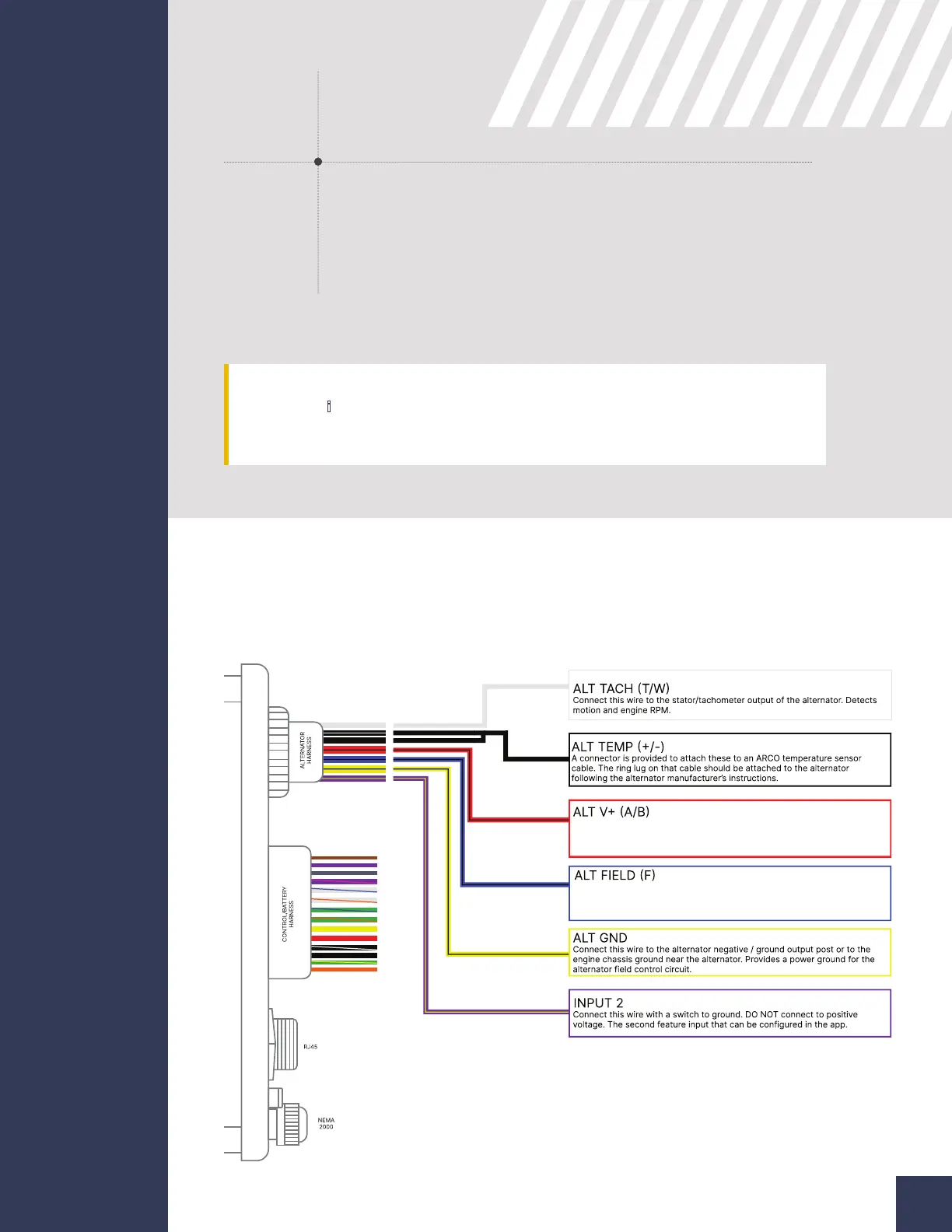

Alternator wiring guide
Connect this wire to the Field (F) input of your alternator. If you
have an N type alternator, it should be fused at 30 A max or lower
if recommended by the alternator manufacturer.
Connect this wire at the alternator positive output post. Provides power
for the alternator field control circuit. It should be fused at 30 A max or
lower if recommended by the alternator manufacturer.
