3-11
3
CC017D
CC018D

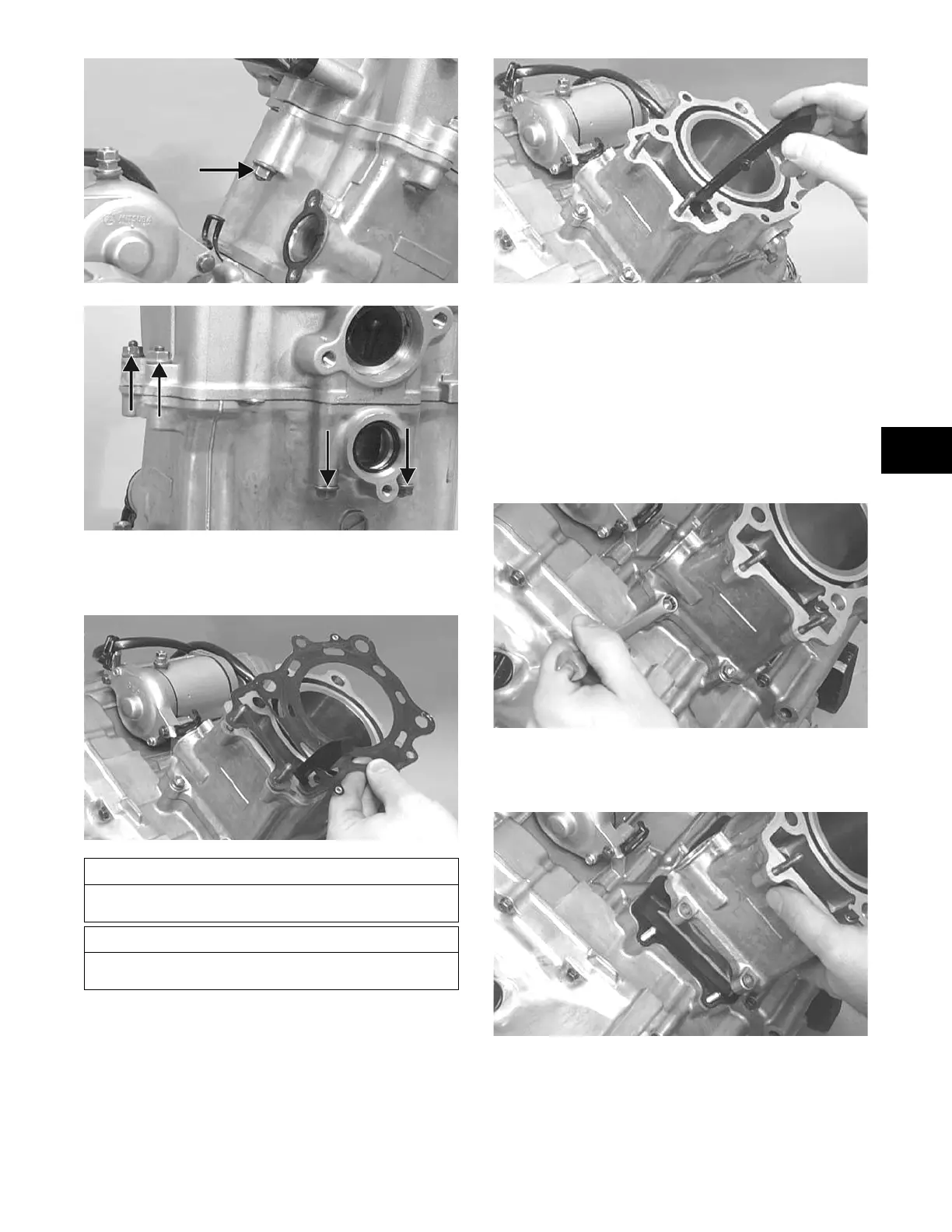

9. Remove the cylinder head from the cylinder, remove
the gasket, and account for two alignment pins; then
remove the cam chain guide.
CC020D
CC022D
C. Cylinder
D. Piston
NOTE: Steps 1-9 in the preceding sub-section must
precede this procedure.
10. Loosen the clamp securing the coolant hose to the
union; then detach the hose.
11. Remove the two nuts securing the cylinder to the
crankcase.
CC023D
12. Lift the cylinder off the crankcase taking care not to
allow the piston to drop against the crankcase.
Account for the gasket and two alignment pins.
CC024D
AT THIS POINT
To service valves and cylinder head, see Servicing
Top-Side Components sub-section.
AT THIS POINT
To inspect cam chain guide, see Servicing Top-Side
Components sub-section.
