3-20

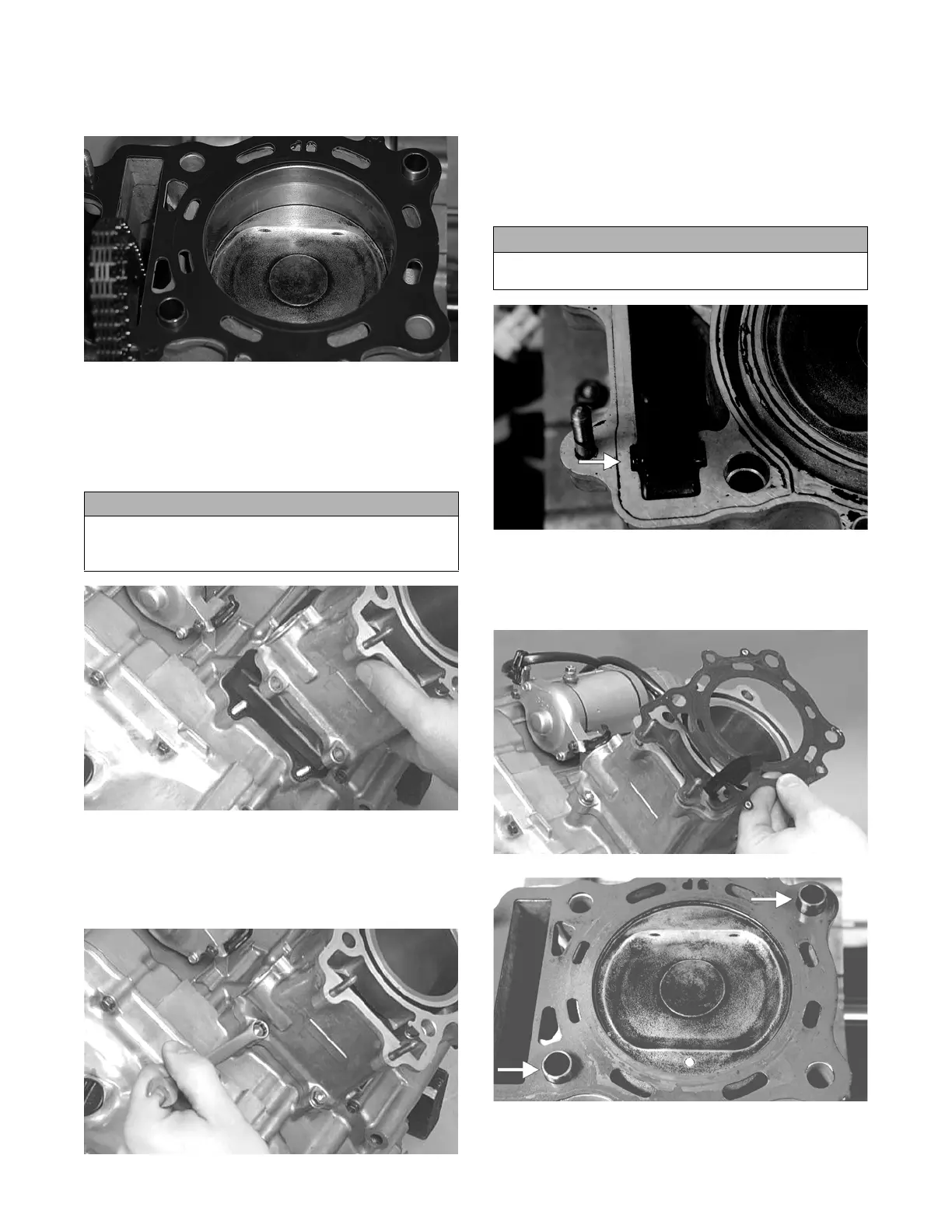

2. Place the two alignment pins into position. Place the
cylinder gasket into position; then place a piston
holder (or suitable substitute) beneath the piston skirt
and square the piston in respect to the crankcase.
CF083
3. Lubricate the inside wall of the cylinder; then using a
ring compressor or the fingers, compress the rings
and slide the cylinder over the piston. Route the cam
chain up through the cylinder cam chain housing;
then remove the piston holder and seat the cylinder
firmly on the crankcase.
CC024D
4. Loosely install the two nuts which secure the cylin-
der to the crankcase.
NOTE: The two cylinder-to-crankcase nuts will be
tightened in step 11.
CC023D
5. Install the coolant hose onto the crankcase union and
tighten the clamp.
C. Cylinder Head
D. Valve Cover
NOTE: Steps 1-5 in the preceding sub-section must
precede this procedure.
6. Place the chain guide into the cylinder.
CF058A
7. Place a new head gasket into position on the cylin-
der. Place the alignment pins into position; then
place the head assembly into position on the cylin-
der.
CC020D
CF057A
8. Install the four cylinder head cap screws and wash-
ers. Tighten only until snug.
CAUTION
The cylinder should slide on easily. Do not force the cyl-
inder or damage to the piston, rings, cylinder, or crank-
shaft assembly may occur.
CAUTION
Care should be taken that the bottom of the chain guide
is secured in the crankcase boss.
