3-37
3
CF086

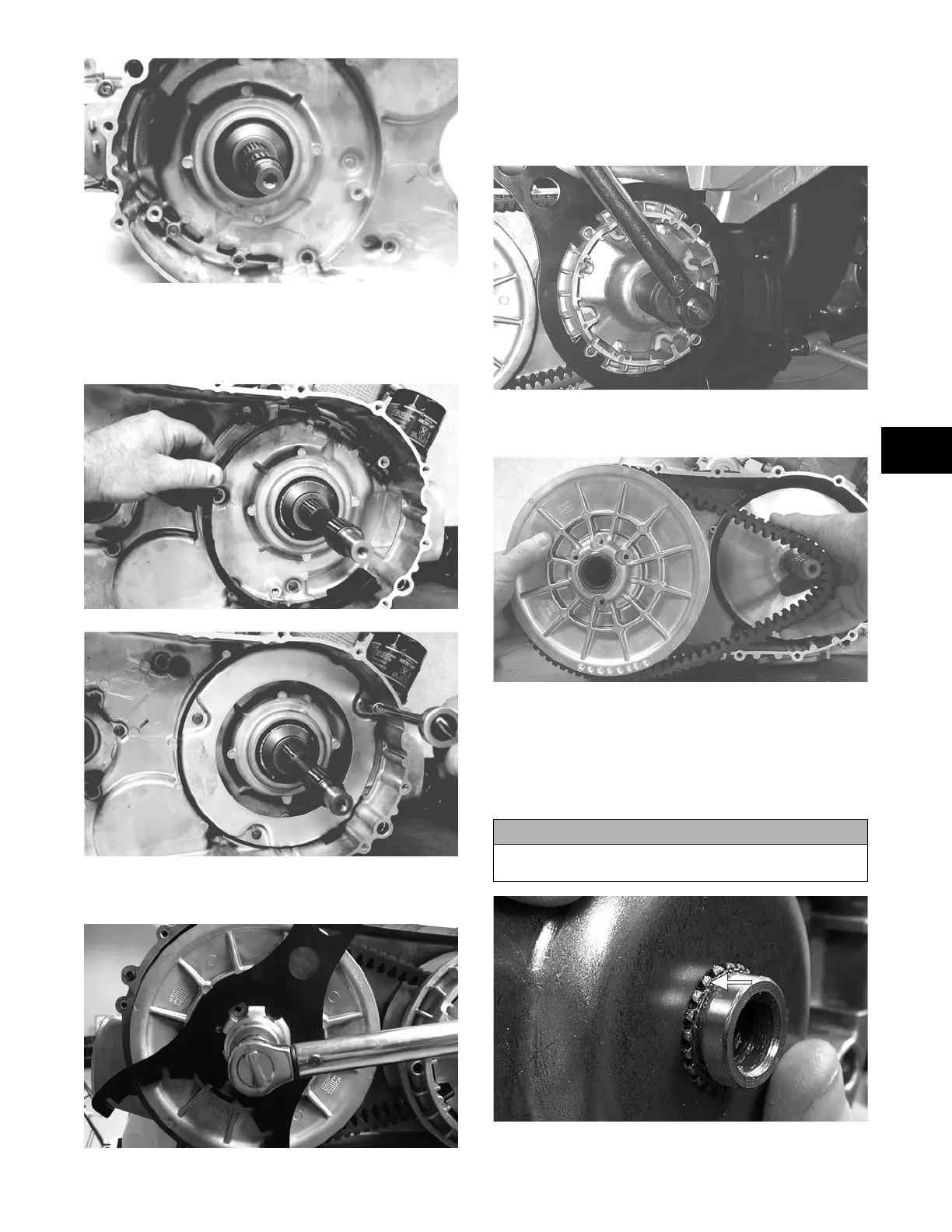

12. Place the air intake plate cushion into position; then
install the air intake plate. Tighten the cap screws
(threads treated with a small amount of red Loctite
#271) securely.
CD971
CD970
13. Place the driven pulley assembly into position and
secure with the nut. Tighten to 80 ft-lb.
CF262
14. Slide the fixed drive face onto the clutch shaft.
15. Spread the faces of the driven pulley by threading a
cap screw into one of the bosses of the driven fixed
face; then tighten the cap screw until the V-belt drops
into the driven pulley 1/2 to 3/4 inch.
GZ075
16. Place the V-belt into position on the driven pulley
and over the front shaft.
PR389
NOTE: The arrows on the V-belt should point forward.
17. Pinch the V-belt together near its center and slide the
spacer and movable drive face onto the shaft. Secure
the drive face with a nut and (threads coated with red
Loctite #271). Tighten the nut to 165 ft-lb.
FI428A
CAUTION
Make sure the splines extend beyond the drive face or a
false torque reading and spline damage may occur.
