3-44
GZ318A

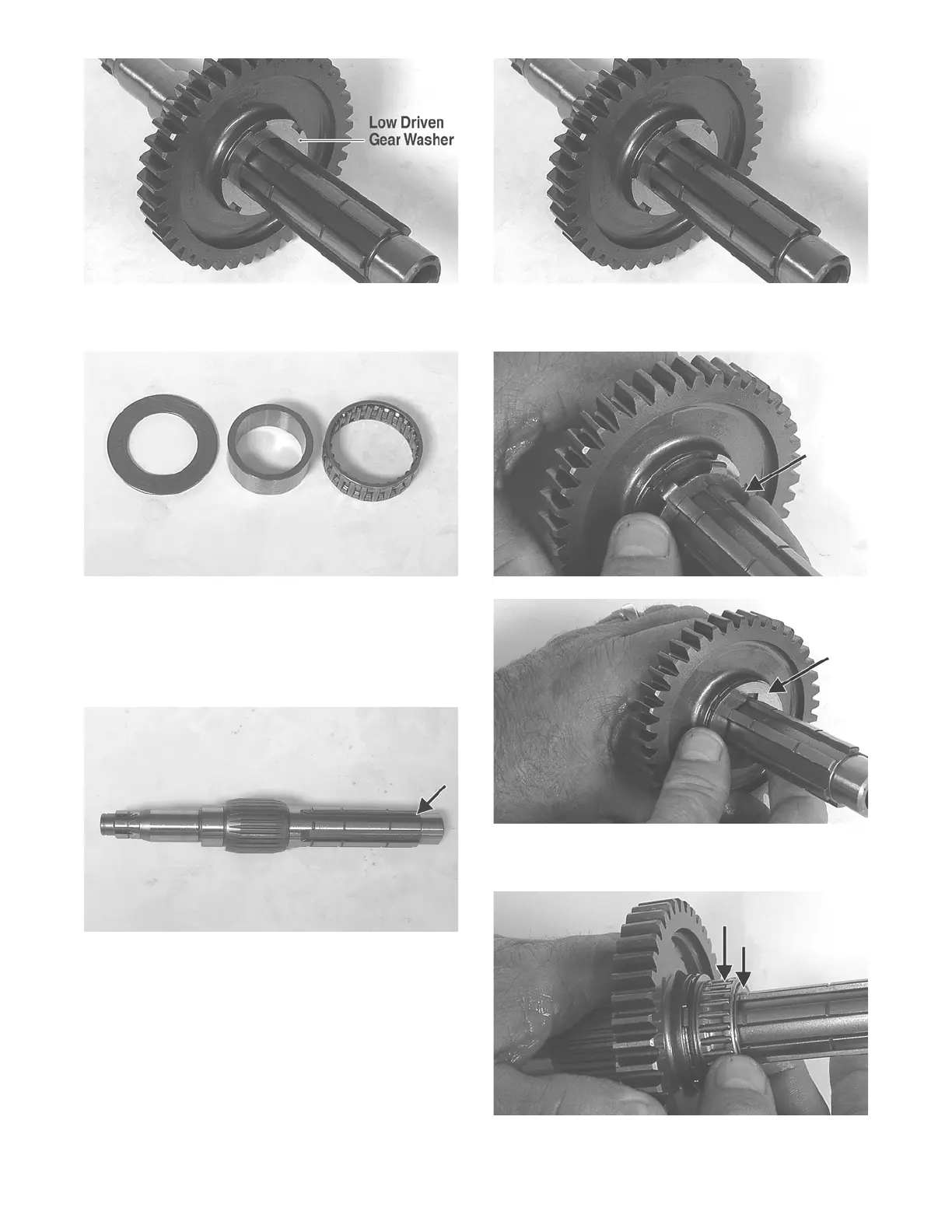

6. Remove the low driven gear. Account for a bearing,
bushing, and thrust washer.
GZ316
Assembling
1. From the drive gear end, install a thrust washer,
bushing, and bearing; then install the low driven gear
and washer.
GZ317A
GZ318
2. Install the low driven gear locking washer; then
install the inner reverse driven gear washer.
GZ319B
GZ320B
3. Install the reverse driven bushing and bearing; then
install the reverse driven gear.
GZ286A
