3-49
3
CD793

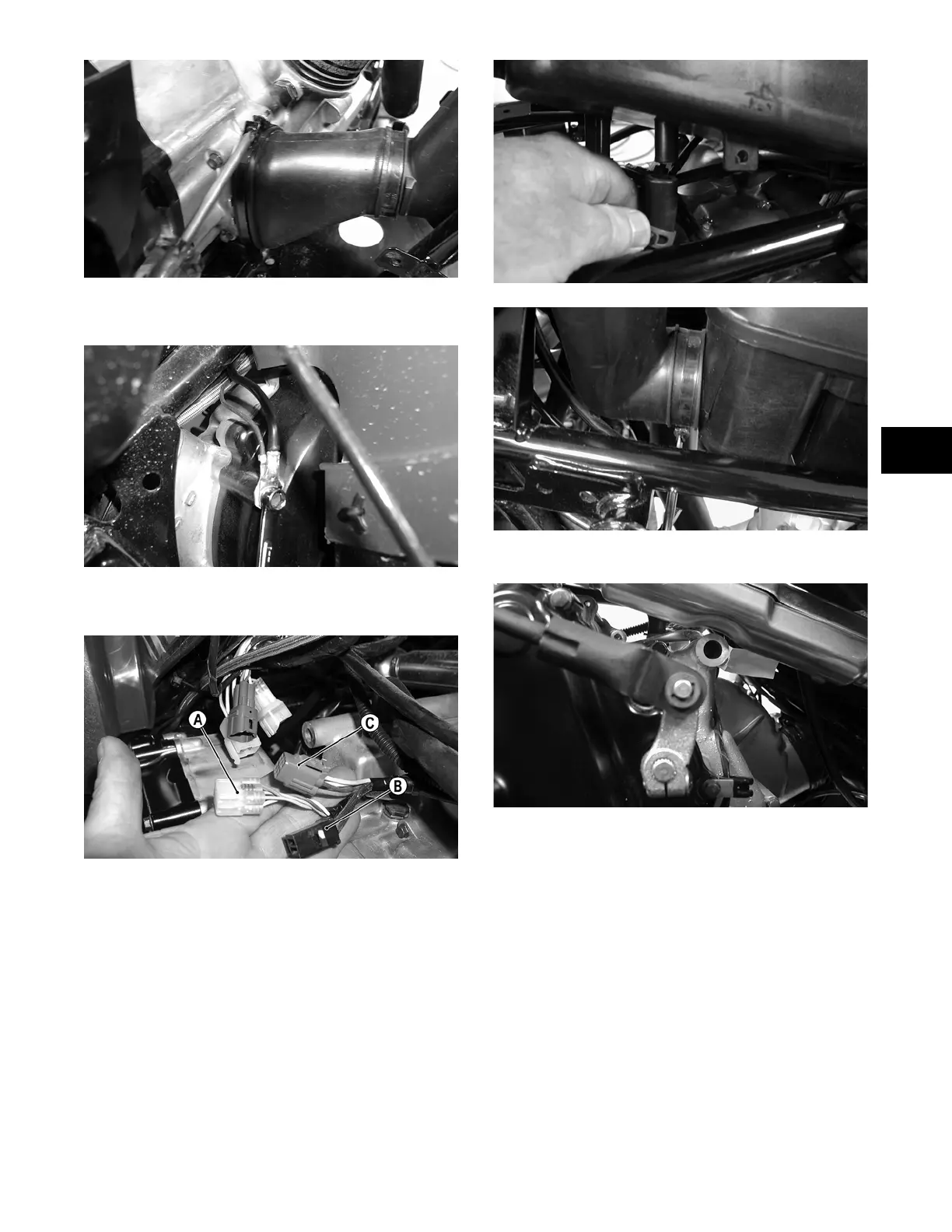

8. Secure the engine ground wire to the engine with a
cap screw. Tighten to 8 ft-lb.
CD810
9. Connect the gear position switch (A), stator coil con-
nector (B), and the CDI connector (C).
CD797A
10. Connect the temperature sensor wire to the main wir-
ing harness.
11. Secure the wires to the frame with nylon ties.
12. Connect the speed sensor connector to the housing.
13. Secure the positive cable to the starter motor.
14. Secure all wiring to the frame and upper engine
bracket with cable ties.
15. Secure the two coolant hoses to the engine.
16. Secure the crankcase vent hose to the air cleaner
housing; then secure the inlet boot and carburetor to
the air filter housing.
CD787
CD785
17. Secure the shift rod to the engine with a new E-clip.
CD774
18. Place the left-side footwell and foot peg in position
on the frame; then secure with existing hardware.
Tighten securely.
19. Install the front body panel with existing hardware.
20. Connect the gasline hose to the fuel pump; then con-
nect the vacuum hose and secure with hose clamps.
