MAINTENANCE 59
NOTE: Arctic Cat recommends
that the overload springs be
engaged whenever a load on the
snowmobile (operator/passenger/
cargo) exceeds 136 kg (300 lb).

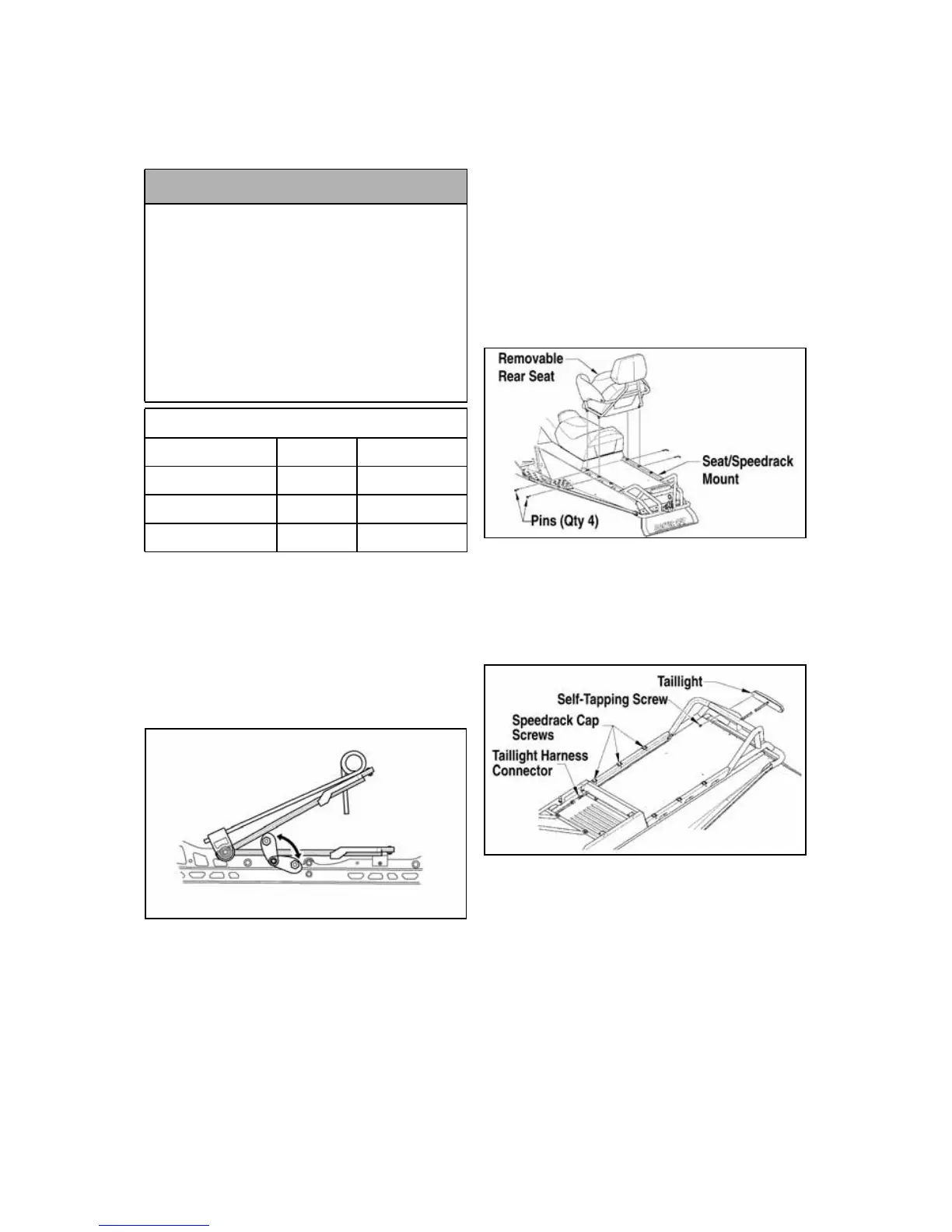

To either engage or disengage the
spring tension blocks, use a spark plug
socket and a screwdriver to adjust the
spring block to the desired position.
Make sure both spring blocks are in the
same position (either engaged or disen-
gaged).
744-457A
LIGHTS
For the correct headlight bulb and/or
taillight/brakelight LED, see the appro-
priate specifications sheet.
Removing and
Installing Taillight/
Brakelight (Bearcat XT
Models)
These models are equipped with an
LED taillight/brakelight. If the LED
fails, it must be replaced. To remove
and install the LED, use the following
procedure.
1. Remove the four pins securing the
rear seat to the seat/Speedrack
mount; then remove the seat.
743-329A
2. Compress the latch on the right
side of the front seat and lift the
front seat away; then disconnect
the taillight harness connector.
743-444A
3. Loosen (but do not remove) the
three right-side seat/Speedrack
mount cap screws.
4. Carefully route the harness con-
nector through the hole in the stor-
age compartment panel; then
remove the harness from beneath
the seat/Speedrack mount.
CAUTION
There are weight limitations for
these snowmobiles. If additional
cargo is being added, maximum
weight on the snowmobile (opera-
tor/passenger/cargo) should not
exceed the maximum limitation set
for each snowmobile. See chart for
details. Also, the overload springs
should be engaged.
Maximum Weight Limitations
Bearcat 570 170 kg 375 lb
Bearcat 570 XT 272 kg 600 lb
Bearcat Z1 XT 272 kg 600 lb
T570/TZ1 170 kg 375 lb
