MAINTENANCE 61

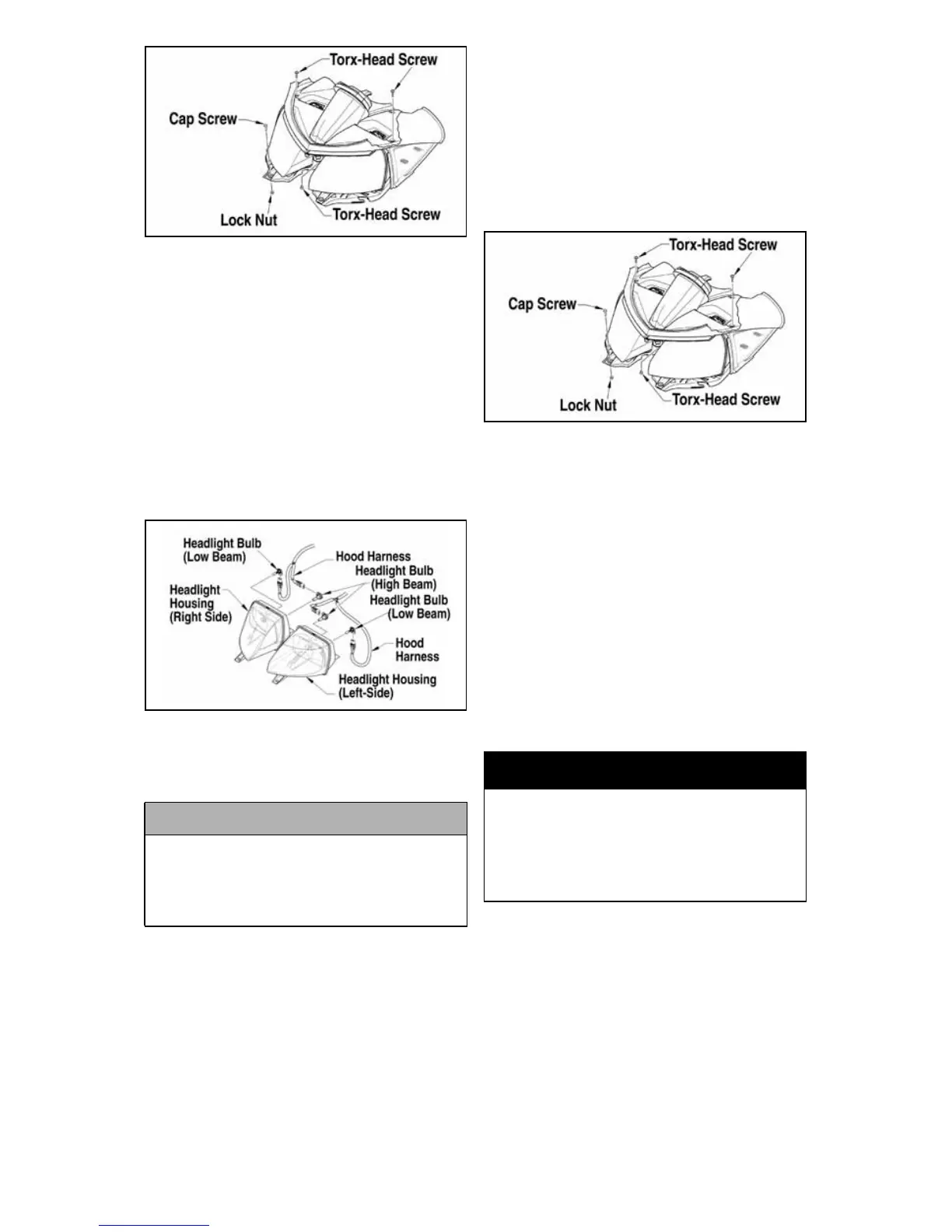

743-439A
2. Remove the cap screw and lock nut
securing the front of the headlight
assembly to the air-intake silencer.
3. Lift the front of the console
enough to allow the headlight
housing to be removed; then
remove the housing.
4. Remove the bulb from the head-
light housing and disconnect the
wiring harness from the bulb.
741-329A
Installing Headlight
Bulb
1. Plug the wiring harness into the
headlight bulb.
2. Insert the bulb into the headlight
housing.
3. Lift the front of the console
enough to allow the headlight
housing to be installed; then install
the housing making sure the forks
of the housing go into the grom-
mets on top of the air-intake
silencer. Secure with the cap screw
and lock nut.
743-439A
4. Position the console onto the air -
intake silencer; then secure with the
single torx-head scre w beneath the
console (located between the head-
lights).
5. Install the two torx-head screws
located to the outside of the head-
light adjustment knobs; then
tighten securely.
6. Check headlight aim (see Adjust-
ing Headlight Aim in this sub-sec-
tion).
Adjusting Headlight
Aim
The headlight can be adjusted for verti-
cal aim of the HIGH/LOW beam. The
geometric center of HIGH beam zone
is to be used for vertical aiming.
CAUTION
Do not touch the glass portion of
the bulb. If the glass portion is
touched, it must be cleaned with a
dry cloth before installing.
! WARNING
Do not operate the snowmobile
unless headlight beam is adjusted
properly. An incorrectly adjusted
beam will not provide the operator
the optimum amount of light.
