Place the frame lock between the extended accordion
panels and the window sill as shown in FIG. 9. Screw a
3/4" (19 mm) locking screw through the frame lock and
into the window sill. (FIG. 10)
7
Head
FIG. 13
FIG. 14
FIG. 11
FIG. 12
FIG. 9
FIG. 10

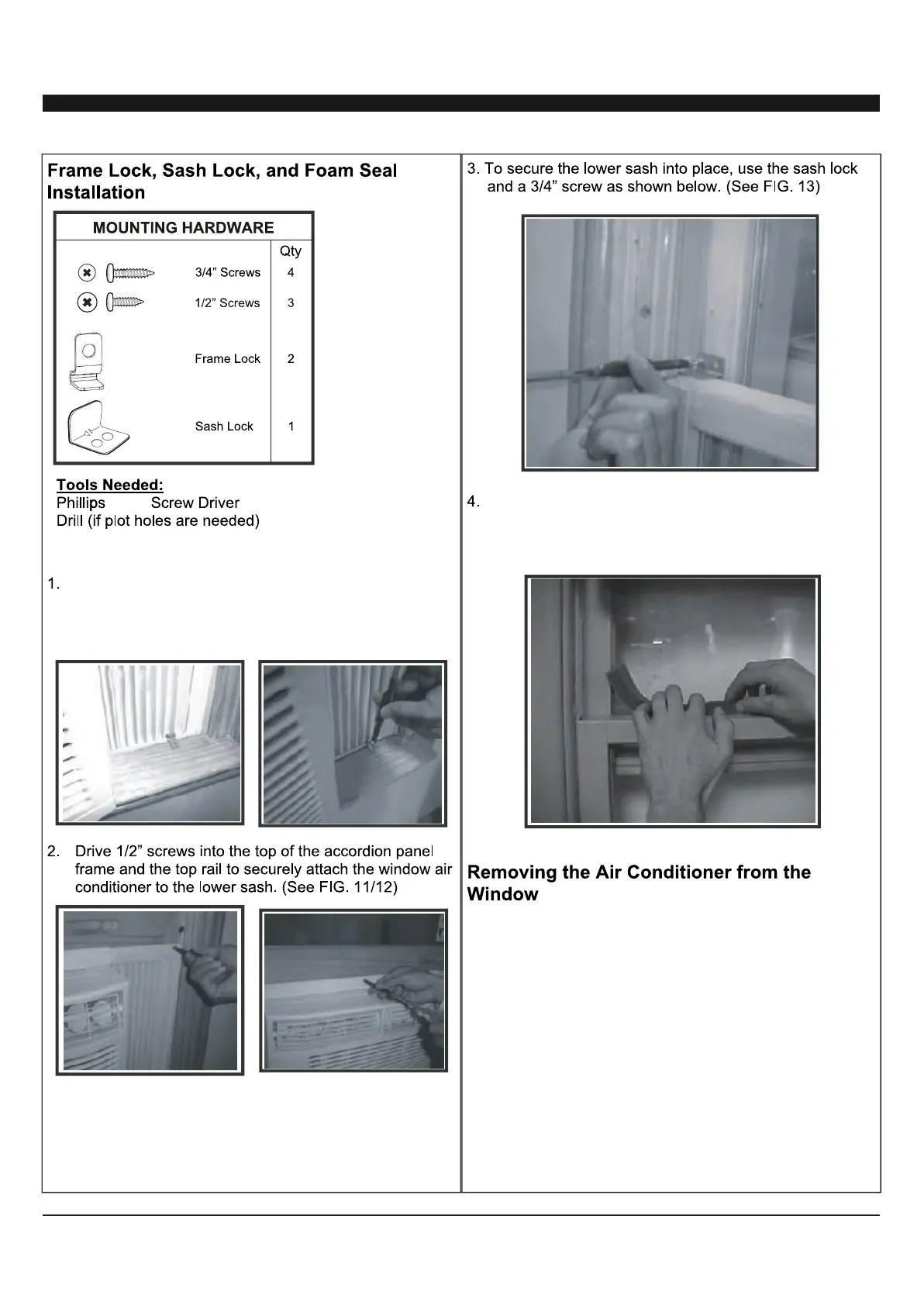

INSTALLATION & ASSEMBLY INSTRUCTIONS (CONT.)
For added insulation, cut the supplied insulation foam to the
width of the window. Insert the foam between the window
sashes to prevent outside air and object from getting into
the room. (See FIG. 14)
1. Turn the air conditioner off and disconnect the power cord.
2. Remove the sash seal from between windows and
unscrew sash lock.
3. Remove the screws installed through the frame and frame
lock.
4. Slide the side panels out of the frame.
5. Keeping a firm grip on the air conditioner, raise the sash
and carefully tilt the air conditioner backwards to drain any
condensate water in the base of the unit. Be careful not to
spill any remaining water while lifting the unit from window.
6. Store parts WITH the air conditioner in the original box or
in an area with low humidity.
To Next Page
