INSTALLATION & ASSEMBLY INSTRUCTIONS (CONT.)

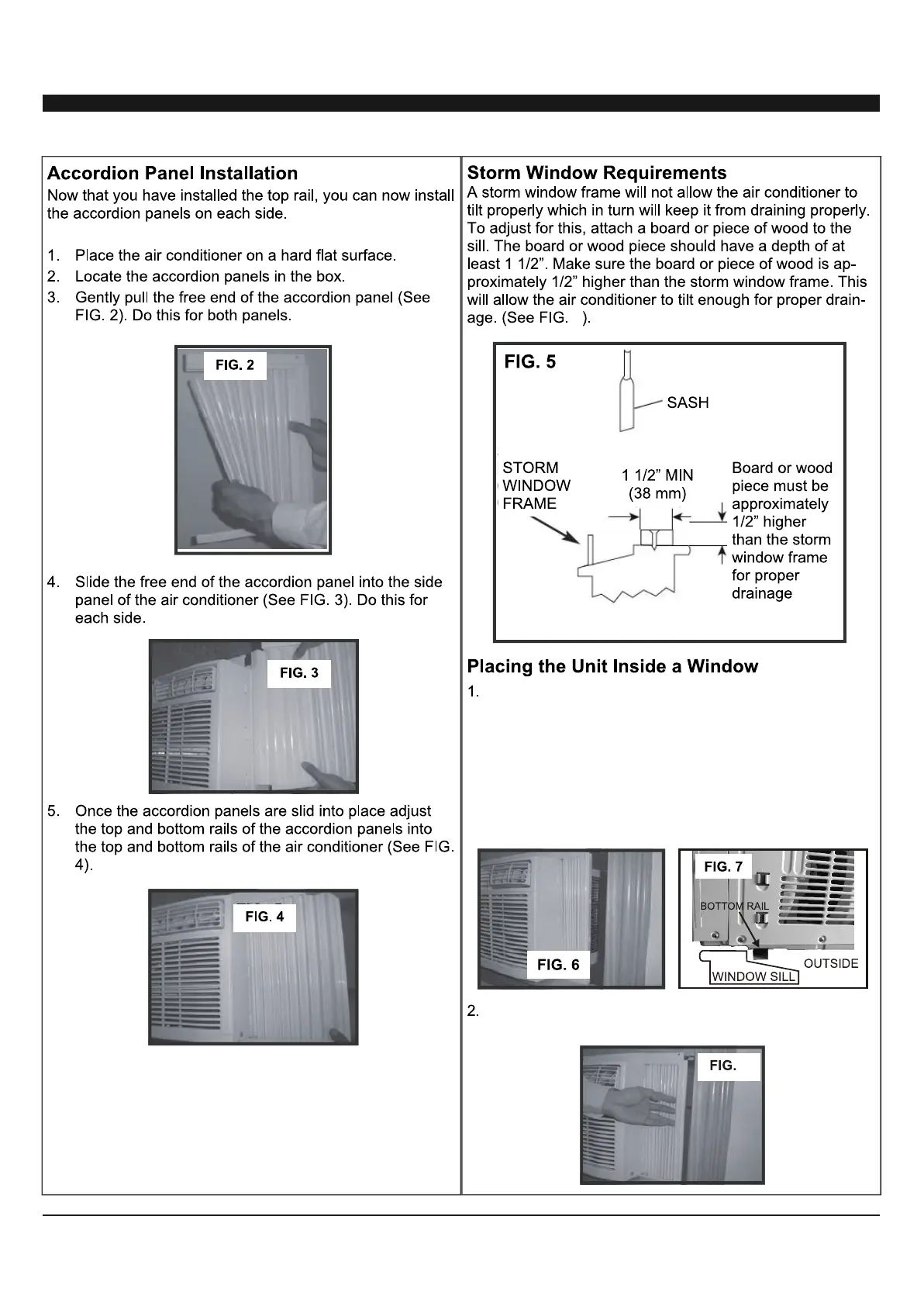

Place the air conditioner on the sill with the bottom mounting rail
against its back edge. Center the air conditioner and close the
window securely behind the top mounting rail. The air conditioner
should be slightly tilted to the outside area. NOTE: Check that air
conditioner is tilted back approximately ¾” to 1”. (Tilted about 3° to 4°
downward to the outside). If, after proper installation, condensation
does not drain from the overflow drain hole during normal use, adjust
slope. (See FIG. 6 & FIG. 7) (Suggested to keep a downward slope to
let accumulated rain water to drain out from the backside of the unit's
bottom.)
Once the air conditioner is installed, extend both the left and
the right accordion panels to the width of the window.
