The ARCTIC Z Pro Adjustment Bracket is a versatile accessory designed to enhance your monitor setup by providing flexible adjustment and secure mounting options. This welcome guide outlines the installation process, accessory components, and key features for optimal use and maintenance.

Function Description

The ARCTIC Z Pro Adjustment Bracket serves as a crucial component for mounting monitors to an existing arm, offering a wide range of adjustability to customize your viewing experience. It allows users to easily attach and detach monitors, adjust their position, and fine-tune tightness and leveling for ergonomic comfort and productivity. The bracket is designed to integrate seamlessly with compatible monitor arms, providing a robust and stable platform for your displays. Its primary function is to facilitate the secure attachment of VESA-compatible monitors, enabling movements such as rotation, tilt, and height adjustments that are essential for multi-monitor setups or single-monitor workstations requiring dynamic positioning. The design emphasizes ease of installation and intuitive adjustments, making it accessible for users to set up their ideal viewing angles without extensive technical knowledge.

Usage Features

The ARCTIC Z Pro Adjustment Bracket comes with a comprehensive set of accessories to ensure a smooth installation and versatile usage. These include:

Screw Cap (x1): Used for aesthetic finishing and protecting screw heads.
Screw (x1): A primary fastener for securing components.
Washer (x3): Essential for distributing load and preventing damage to surfaces during tightening.
Adjustment Bracket (x1): The core component that connects the monitor to the arm.
Washer Collar (x1): Provides additional support and stability for specific connections.
Hex Key (M4) (x1): The primary tool for tightening and loosening M4 screws, crucial for assembly and adjustments.
Axle (x1): A pivot point or connecting rod for rotational movements.

The installation process is broken down into several intuitive steps:

Attaching the Adjustment Bracket: The first step involves securing the adjustment bracket to the monitor arm. This typically involves aligning the bracket with the arm's mounting point and using the provided screws and washers to fasten it securely. The guide illustrates how the adjustment bracket integrates with the existing arm structure, showing the orientation and attachment points.
Installing the Washer: A washer is placed onto the arm's vertical shaft, providing a stable base for subsequent components. This step ensures proper spacing and reduces friction during adjustments.
Positioning the Washer Collar: The washer collar is then positioned on the arm, often beneath the main mounting mechanism, to provide additional support and ensure the stability of the entire assembly.
Removing Existing Head (if applicable): If you are upgrading an existing monitor arm, the guide provides instructions on how to remove the old head using the M4 Hex Key. This involves unscrewing the existing fasteners and carefully detaching the old head from the arm's shaft. This step highlights the modularity of the ARCTIC Z Pro system, allowing for easy upgrades or replacements.
Assembling the New Head: The new adjustment bracket head is then assembled onto the arm. This involves inserting the axle, placing washers, and securing them with the screw and screw cap. The guide emphasizes holding the components in place during this step to ensure proper alignment and secure fastening. The M4 Hex Key is used to tighten the screw, ensuring a firm connection.
Mounting the Monitor: Once the adjustment bracket is securely attached to the arm, the monitor can be hung onto the bracket. The guide specifies using Socket Head M4 Screws (8 mm) x 6 to fasten the monitor to the bracket. A 3 mm hex key is used for this step, ensuring the monitor is firmly attached to the VESA mounting plate.
Adjusting Tightness: The ARCTIC Z Pro allows for precise adjustment of the monitor's tightness. If the monitor feels too loose or too tight, a 4 mm hex key can be used to slightly loosen or tighten the screw on the adjustment mechanism. This feature is crucial for customizing the resistance of the monitor's movements, allowing users to set it to their preferred level of fluidity or rigidity.

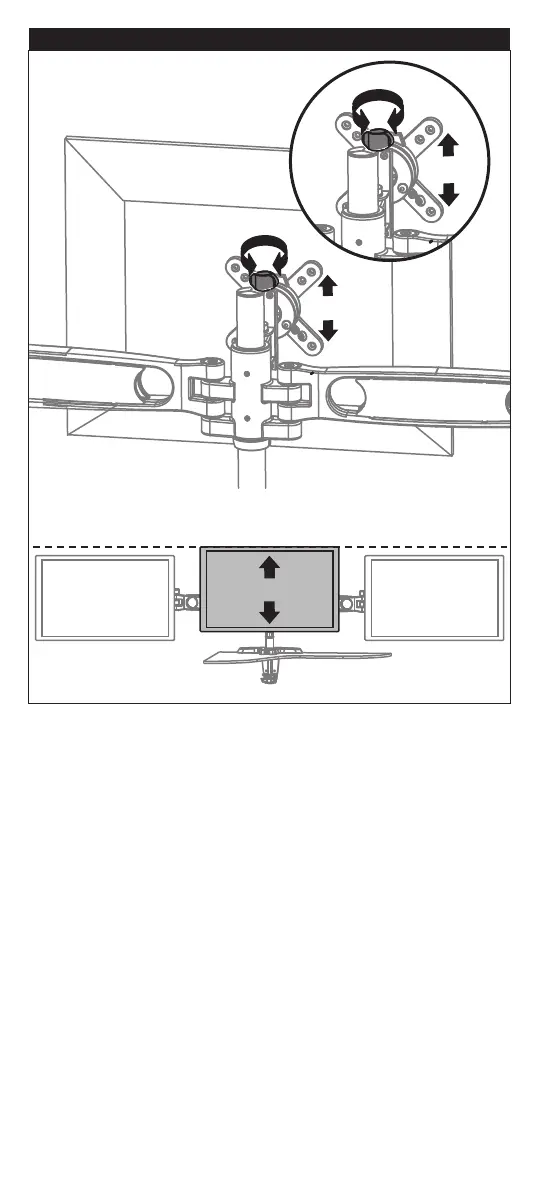

Leveling the Monitors: For multi-monitor setups, maintaining a consistent level across all displays is essential. The guide illustrates how to level the monitors by adjusting the height and rotation of individual displays. This typically involves loosening a screw, adjusting the monitor's position vertically or rotationally, and then re-tightening the screw to lock it in place. This feature ensures a seamless visual experience across multiple screens.

The bracket supports various monitor movements, including:

Rotation (180°): Allows the monitor to be rotated horizontally, enabling landscape or portrait orientation.
Tilt (70°): Provides vertical angle adjustment, allowing the screen to be tilted up or down for optimal viewing.
Swivel (360°): Enables the monitor to be swiveled around the arm's axis, offering broad horizontal positioning flexibility.

Maintenance Features

The ARCTIC Z Pro Adjustment Bracket is designed for durability and ease of maintenance. The primary maintenance activities involve periodic checks and adjustments to ensure continued optimal performance:

Tightness Adjustments: Over time, due to repeated adjustments or environmental factors, the tightness of the monitor's movements might change. The ability to easily adjust the tightness using a 4 mm hex key ensures that the monitor remains at the desired level of resistance. This prevents the monitor from sagging or being too stiff to move.
Screw Checks: Regularly checking all screws, especially those holding the monitor and the bracket to the arm, is recommended. If any screws appear loose, they should be re-tightened with the appropriate hex key (M4 or 3 mm) to maintain stability and safety.
Cleaning: The bracket can be wiped clean with a soft, damp cloth to remove dust and grime, ensuring its aesthetic appeal and preventing accumulation that could hinder movement. Avoid using harsh chemicals that might damage the finish.
Component Replacement: In the unlikely event of a component failure, the modular design of the ARCTIC Z Pro allows for individual parts to be replaced, extending the lifespan of the entire setup. While not explicitly detailed as a maintenance feature, the provision of specific parts in the accessories list implies this possibility.

The ARCTIC Z Pro Adjustment Bracket is backed by a two-year limited warranty, highlighting the manufacturer's confidence in its quality and durability. Users are encouraged to visit the ARCTIC website for warranty details. Safety instructions emphasize the importance of a two-person installation for safety and verifying that the desk can support the additional weight of the monitors and the bracket. This ensures a secure and stable setup, minimizing risks during installation and use. The product also complies with RoHS and WEEE directives, indicating its commitment to environmental responsibility and proper disposal at the end of its lifecycle.
