Arduino Nano 33 BLE Sense Rev2

Arduino® Nano 33 BLE Sense Rev2
11 / 19 Arduino® Nano 33 BLE Sense Rev2 Modified: 12/01/2023

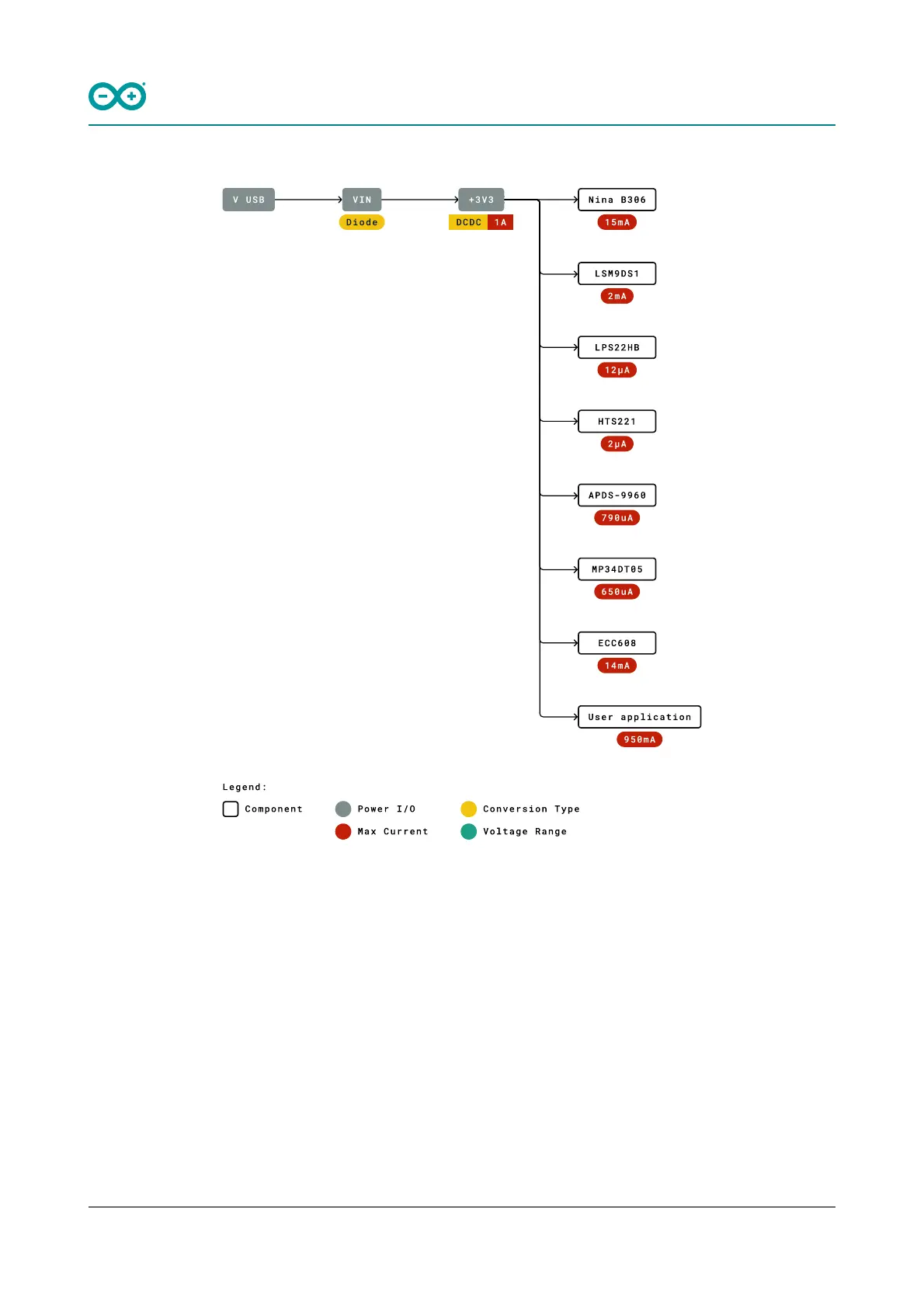

Power tree
NOTE: Since V
USB
feeds V
IN
via a Schottky diode and a DC-DC regulator specified minimum input voltage is 4.5V the
minimum supply voltage from USB has to be increased to a voltage in the range between 4.8V to 4.96V depending
on the current being drawn.
