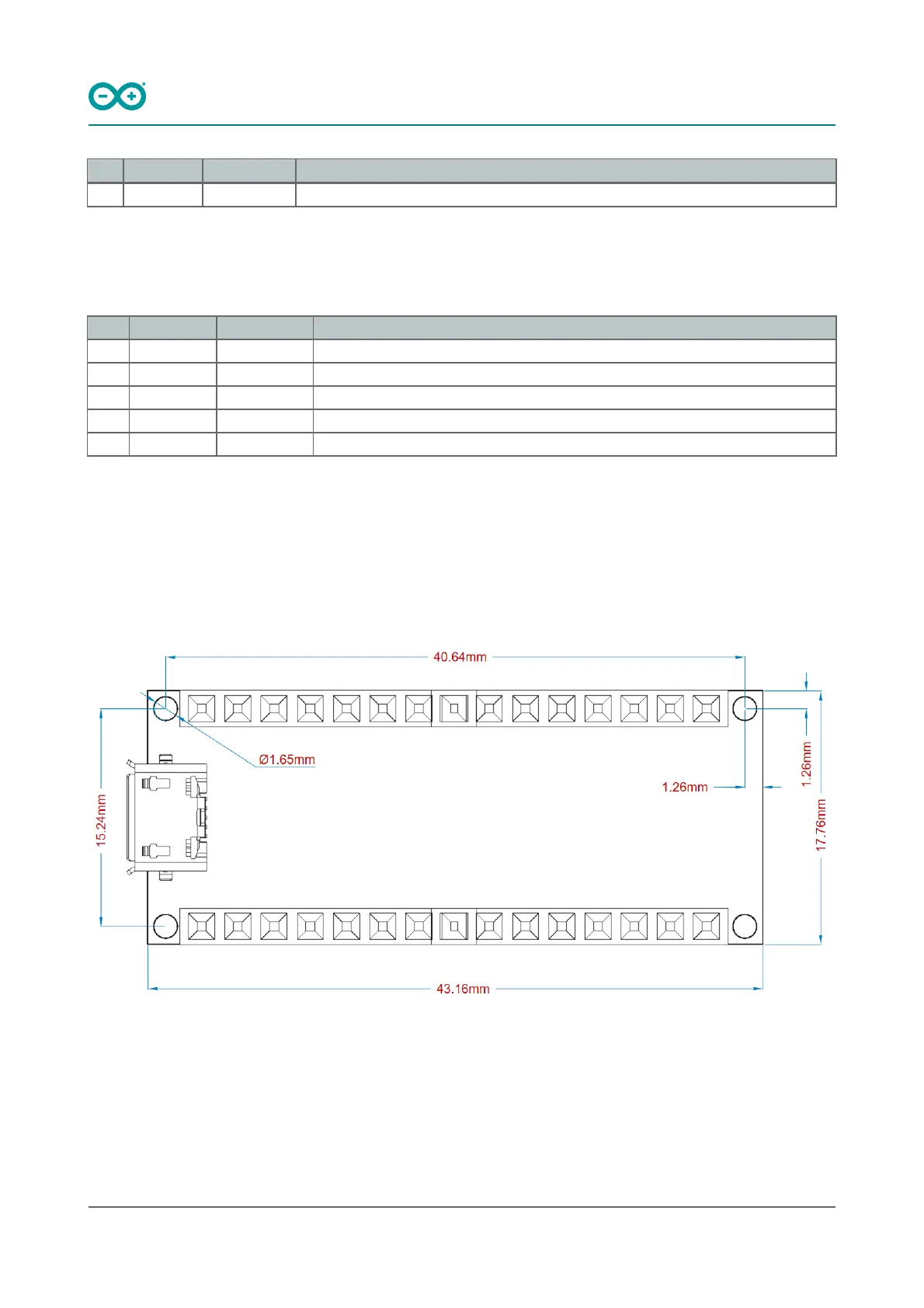

Page #15 background imageLoading...
Page #15 background image
Arduino® Nano 33 BLE Sense Rev2
15 / 19 Arduino® Nano 33 BLE Sense Rev2 Modified: 12/01/2023
Pin Function Type Description
30 D12/MISO Digital SPI MISO; can be used as GPIO
4.3 Debug
On the bottom side of the board, under the communication module, debug signals are arranged as 3x2 test pads
with 100 mil pitch with pin 4 removed. Pin 1 is depicted in Figure 3 – Connector Positions
Pin Function Type Description
1 +3V3 Power Out Internally generated power output to be used as voltage reference
2 SWD Digital nRF52480 Single Wire Debug Data
3 SWCLK Digital In nRF52480 Single Wire Debug Clock
5 GND Power Power Ground
6 RST Digital In Active low reset input
5 Mechanical Information
5.1 Board Outline and Mounting Holes
The board measures are mixed between metric and imperial. Imperial measures are used to maintain 100 mil pitch
grid between pin rows to allow them to fit a breadboard whereas board length is Metric
Board layout
