Arduino® Nano 33 BLE Sense Rev2

7 / 19 Arduino® Nano 33 BLE Sense Rev2 Modiﬁed: 12/01/2023

2 Functional Overview

2.1 Board Topology

Top:

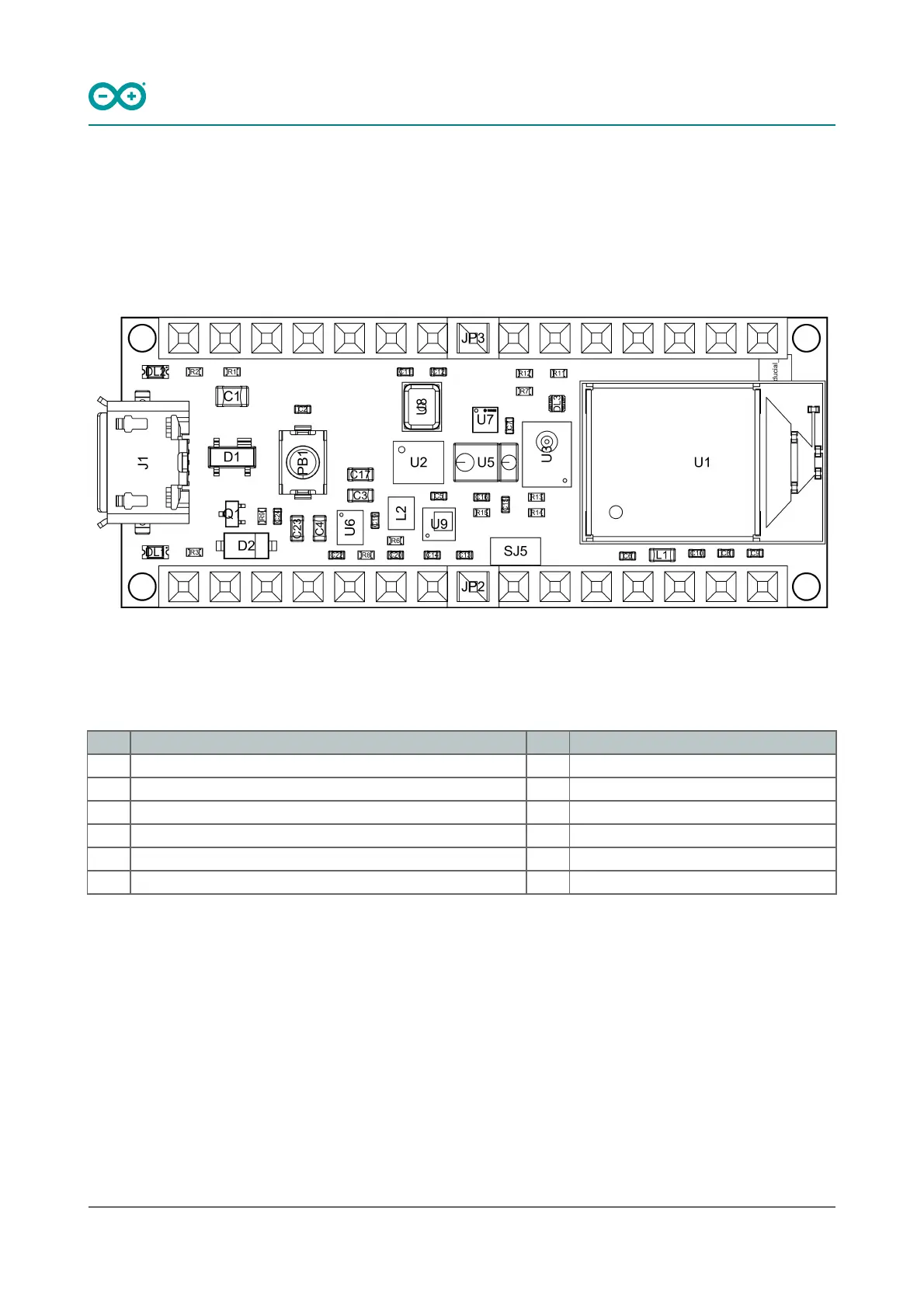

Board topology top

Ref. Description Ref. Description

U1 NINA-B306 Module Bluetooth® Low Energy 5.0 Module U6 MP2322GQH Step Down Converter

U2 BMI270 Sensor IMU PB1 IT-1185AP1C-160G-GTR Push button

U3 MP34DT06JTR MEMS Microphone U8 HS3003 Humidity Sensor

U7 BMM150 Magnetometer IC DL1 Led L

U5 APDS-9660 Ambient Module DL2 Led Power

U9 LPS22HBTR Pressure Sensor IC
