Arduino® Nano 33 BLE
5 / 15 Arduino® Nano 33 BLE / Rev. 01 - 26/11/2021
2 Functional Overview

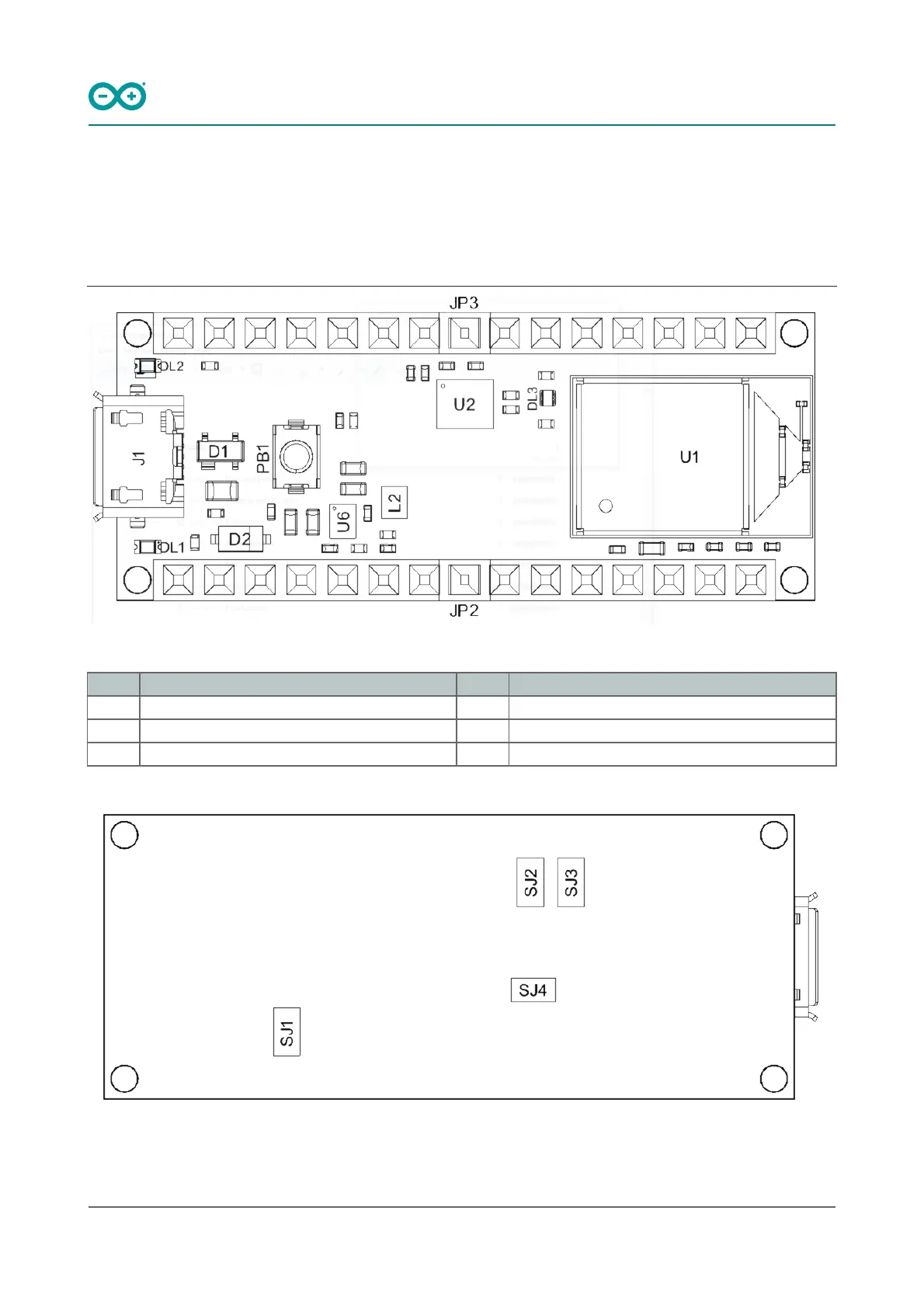

2.1 Board topology
Top:
Board topology Top
Ref. Description Ref. Description
U1 NINA-B306 Module BLE 5.0 Module U6 MP2322GQH Step Down Converter
U2 LSM9DS1TR Sensor IMU PB1 IT-1185AP1C-160G-GTR Push button
DL1 Led L DL2 Led Power
Bottom:
Board topology bot

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Arduino Nano 33 BLE and is the answer not in the manual?

Arduino Nano 33 BLE Specifications

General IconGeneral
MicrocontrollernRF52840
Operating Voltage3.3V
Input Voltage (limit)21V
Digital I/O Pins14
Analog Input Pins8
DC Current per I/O Pin15 mA
Flash Memory1 MB
SRAM256 KB
Clock Speed64 MHz
BluetoothBluetooth 5.0
External InterruptsAll Digital Pins
Weight5 g
Dimensions45 mm x 18 mm
Analog Output Pins1
USBMicro USB
