DXC5K/EN IN/A22 Installation
Page 16/34 DXC 5000
D0337ENa
Slide Switch
for B SIDE

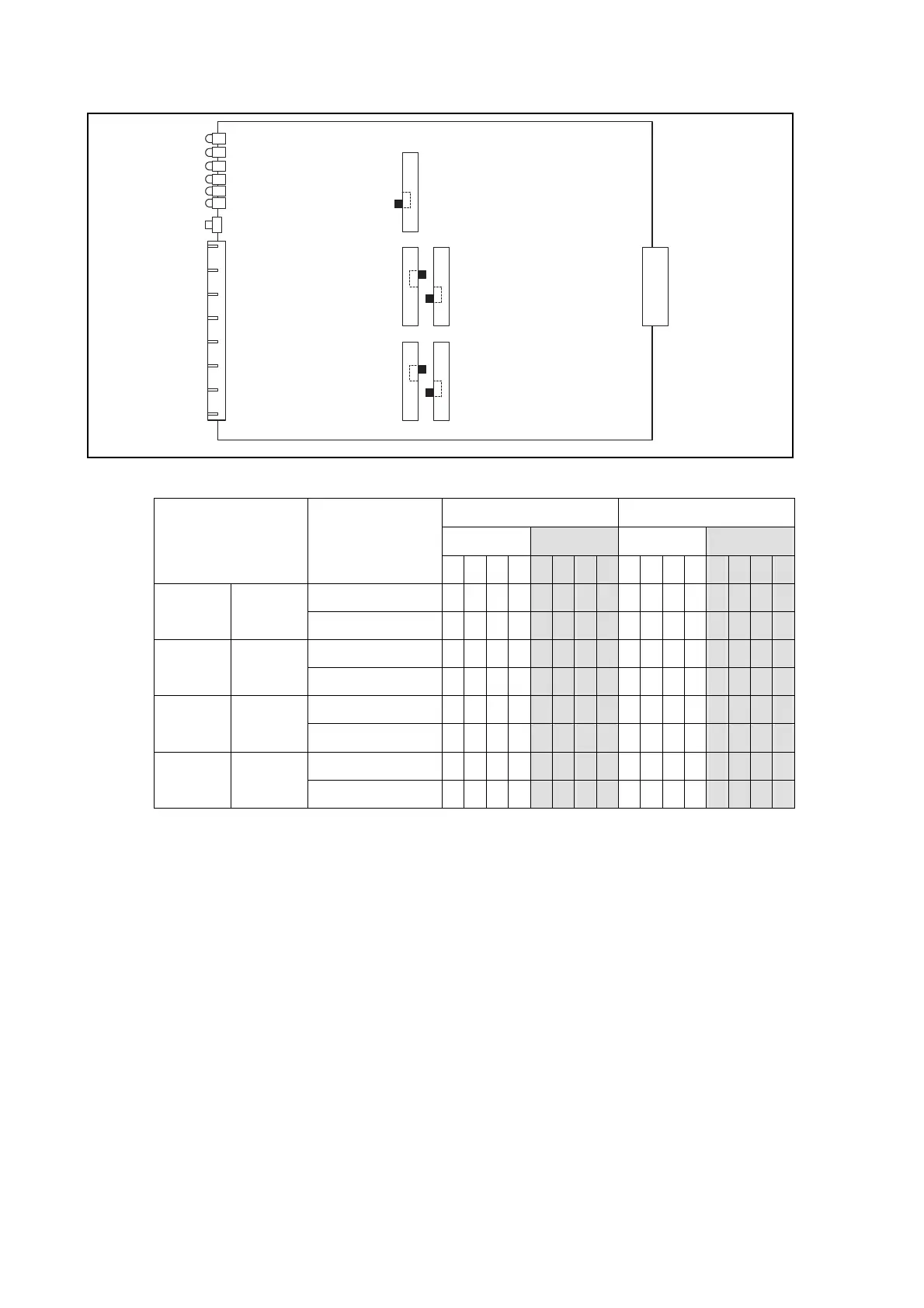

FIGURE 13: SIDE SWITCH FOR B SIDE - E&M CARD
A Side B Side
E (TX bit) M (RX bit) M (TX bit) E (RX bit)
Mode Status
ABCD
A B C D AB C D A B C D
Idle - on hook 0 0 0 1 0 * * * 0 0 0 1 0 * * *
ETSI Normal
Active - off hook 1 1 0 1
1 1 * * 1 1 0 1 1 1 * *
Idle - on hook 1 1 0 1 1 * * * 1 1 0 1 1 * * *
ETSI Revert
Active - off hook 0 0 0 1
0 0 * * 0 0 0 1 0 0 * *
Idle - on hook 0 0 0 0 0 * * * 0 0 0 0 0 * * *
ANSI Normal
Active - off hook 1 1 1 1
1 1 * * 1 1 1 1 1 1 * *
Idle - on hook 1 1 1 1 1 * * * 1 1 1 1 1 * * *
ANSI Revert
Active - off hook 0 0 0 0
0 0 * * 0 0 0 0 0 0 * *
TABLE 13: SIGNALING BITS - E&M CARD
NOTE: For version V2.02.01 or over
