Installation DXC5K/EN IN/A22
DXC 5000
Page 15/34
Pin Number Signal Signal Description
1 U-NO U1 to U8 Normal Open
2 U-COM U1 to U8 GND
3 U-NC U1 to U8 Normal Close

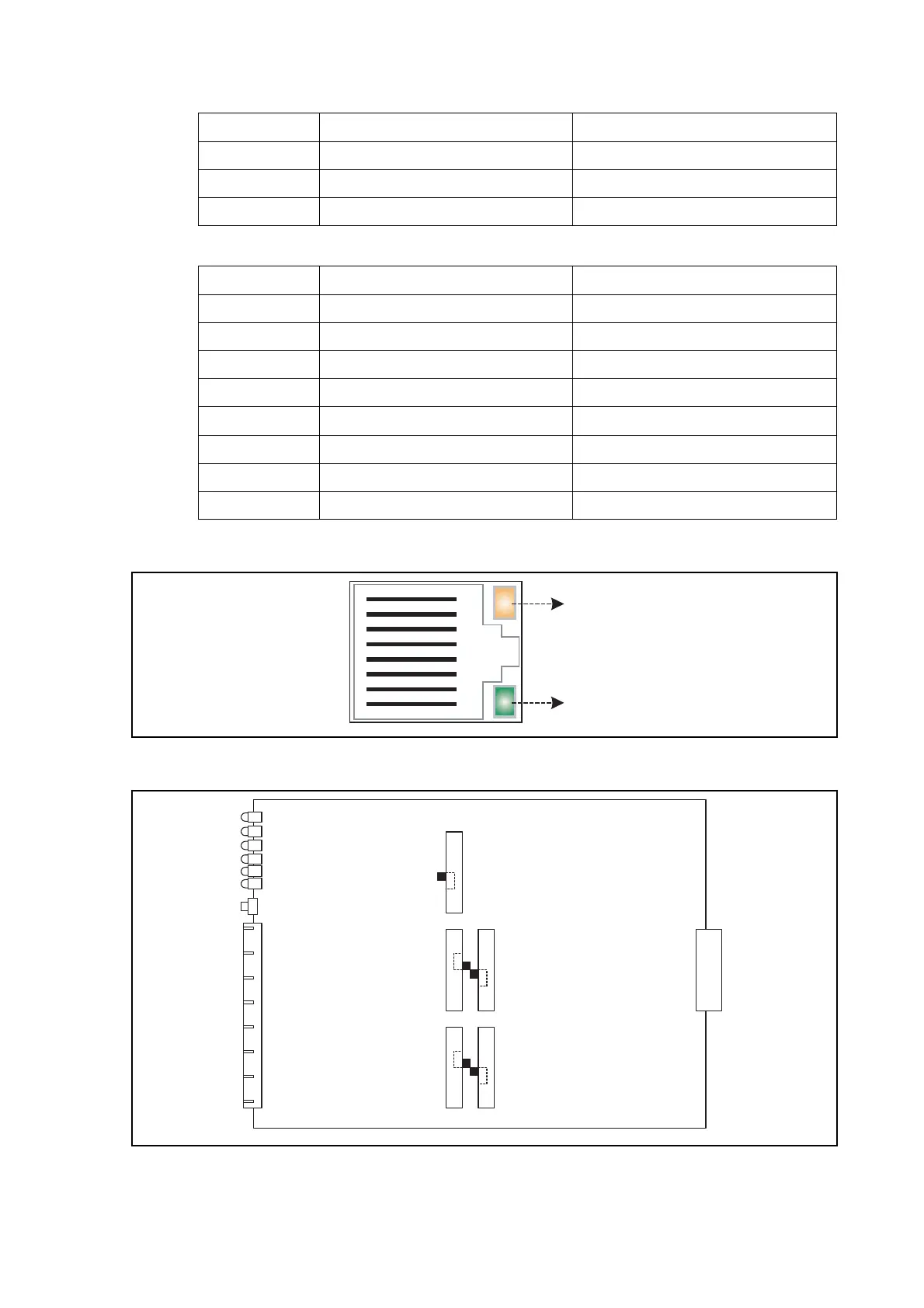

TABLE 11: SCREW TYPE CONNECTOR PIN ASSIGNMENT - DRY CONTACT I/O CARD
Pin Number Pin Color Pin Name
8 Brown SG
7 White/ Brown E
6 Green TIP1
5 White/ Blue TIP
4 Blue RING
3 White/ Green RING1
2 Orange M
1 White/ Orange SB
TABLE 12: RJ45 PIN ASSIGNMENT - E&M CARD
D0335ENa
Amber LED
Green LED
PIN 8
PIN 7
PIN 6
PIN 5
PIN 4
PIN 3
PIN 2
PIN 1
FIGURE 11: RJ45 CONNECTOR - E&M CARD
D0336ENa
Slide Switch
for A SIDE
FIGURE 12: SIDE SWITCH FOR A SIDE - E&M CARD
