DXC5K/EN IN/A22 Installation

Page 18/34

DXC 5000

Pin Number Line Color Description

1 Unassigned

2 Unassigned

3 Red Ring lead

4 Green Tip lead

5 Unassigned

6 Unassigned

TABLE 16: RJ11 CONNECTOR PIN ASSIGNMENT - FXS/ FXO CARD

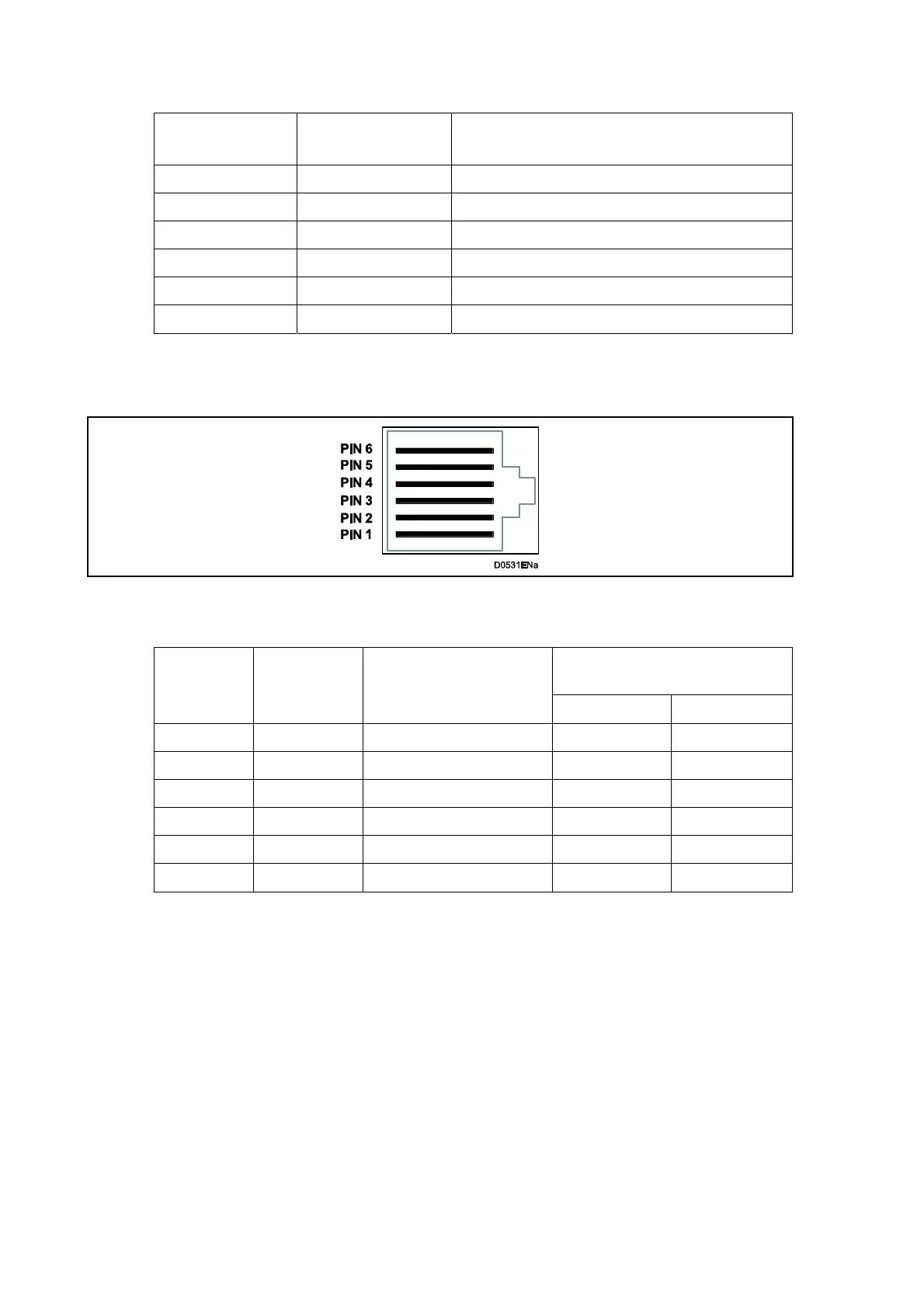

FIGURE 15: RJ11 CONNECTOR - FXS, FXO, AND MAG CARDS

Ring Generation & Ring

Detector

Pin Number Line Color Description

L1 & L2 L1 & GND

1 White Unassigned

2 Black Unassigned

3 Red L2 Line

4 Green L1 Line

9 9

5 Yellow GND Line

6 Blue Unassigned

TABLE 17: RJ11 CONNECTOR PIN ASSIGNMENT - MAG CARD
