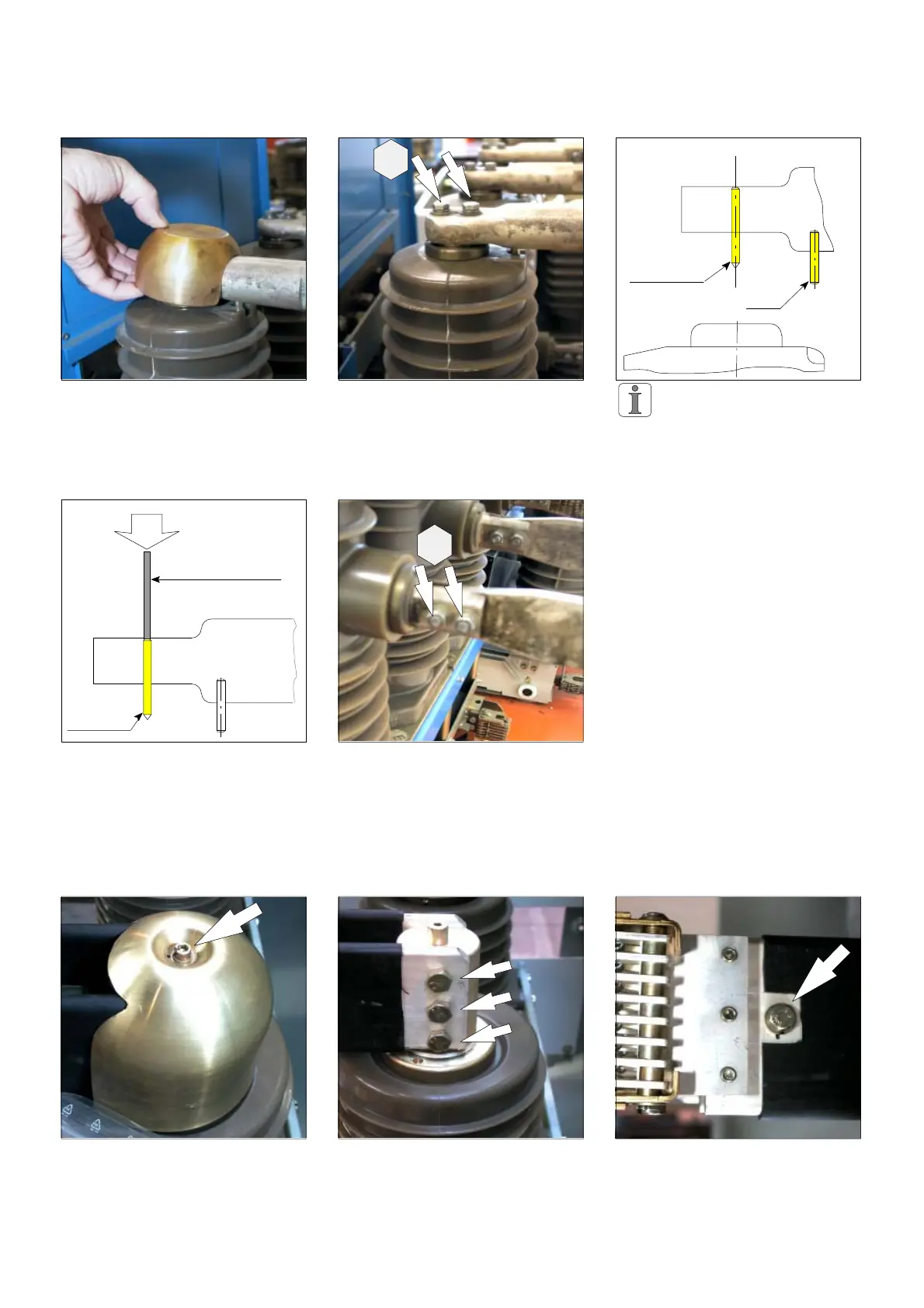

First type of pole equipment
Unclip and lift off the deflector. Unscrew the 2 fixing bolts, then
remove the upper connector
(13mm spanner).
1.2
The 6x35mm cotter pin and
the positioning
pin remain
fixed on the connector.
Pin
Cotter pin
Extract the 6x35 cotter pin from
the connector (pin punch and
hammer or flat-nosed pliers).
Cotter pin
Pin punch
Unscrew the 2 fixing bolts, then
remove the lower connector (13
mm spanner).
1.6
Second type of pole equipment
Remove the maintaining bolt for
the upper deflector
(5 mm Allen key).
Remove the deflector.
Unscrew the 3 fixing bolts, then
remove the upper connector
(16mm spanner).
Unscrew the fixing bolt then
remove the spacer from the
lower connector
(16 or 17 mm spanner).
