Areva FP 62 - 3. Presentation of the FP circuit breaker

5

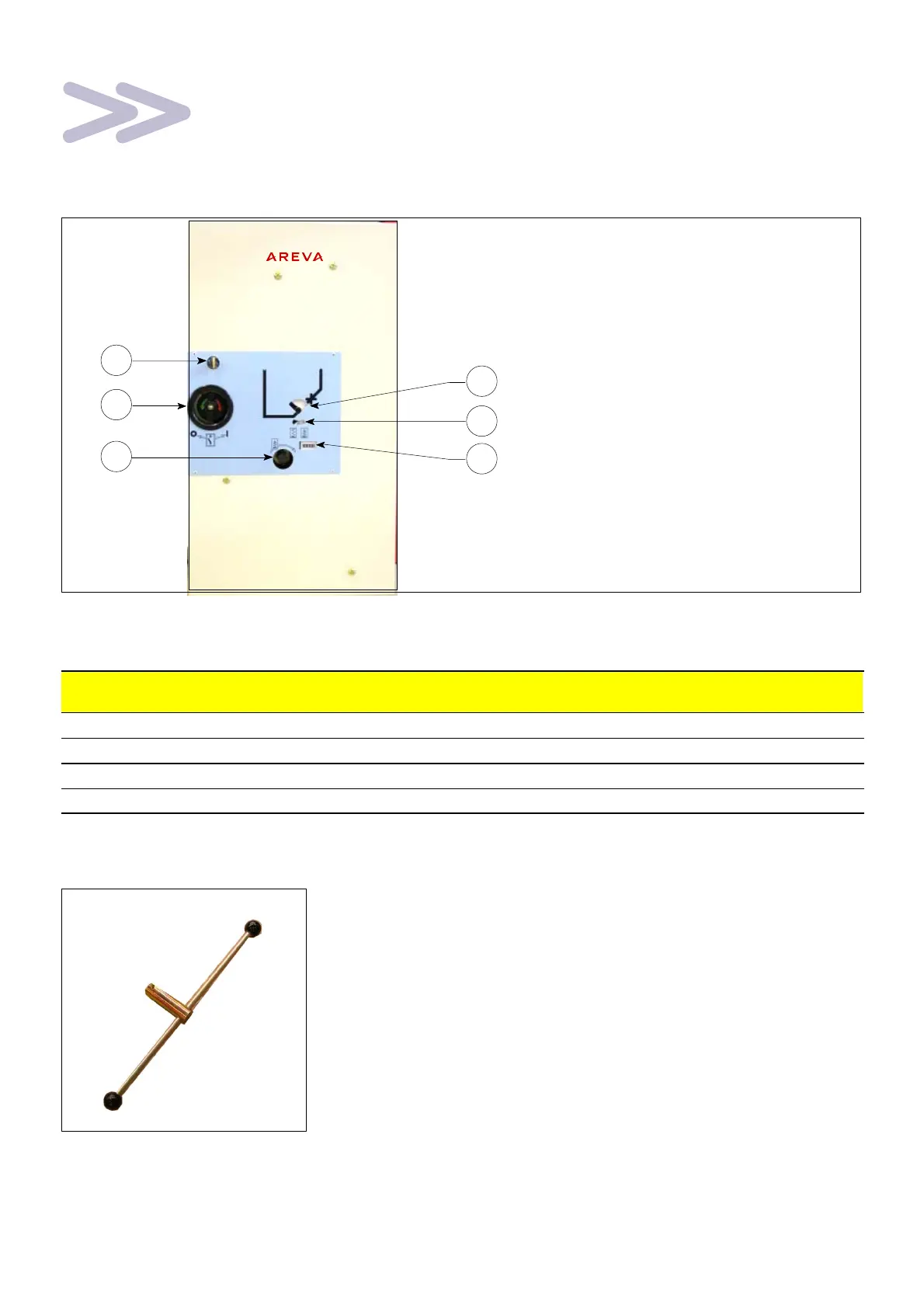

3 Presentation of the FP circuit breaker
0 Key
-Ą1 Location of the arming lever
-Ą2 Indicator light for the state of
the circuit breaker (closed or
tripped)
-Ą3 Operating counter
-Ą4 Indicator light for the state of
the springs (primed or
released)
-Ą5 Closing and tripping handling
button.
-Ą6 Key lock for locking the circuit
breaker by key
4
5
6
3
2
1
3.1 Weights and shipping methods for the circuit breakers
Functional Unit Circuit breaker
Weight of the circuit breaker
(kg)
Integrated into
the Functional Unit*
DNF7 - DNF7S FP 73 - FP 731 - FP 741 320 Yes (except FP741)
FLUOKIT M24 FP 61 - FP 62 175 Yes
FLUOKIT M24+ FP 61 - FP 62 175 Yes
FLUOKIT M36 FP 71 - FP 72 175 Yes
* Circuit breaker shipped strapped
and connected inside the
Functional Unit
 Operating lever for the
BLR-BLRM control
mechanisms.
