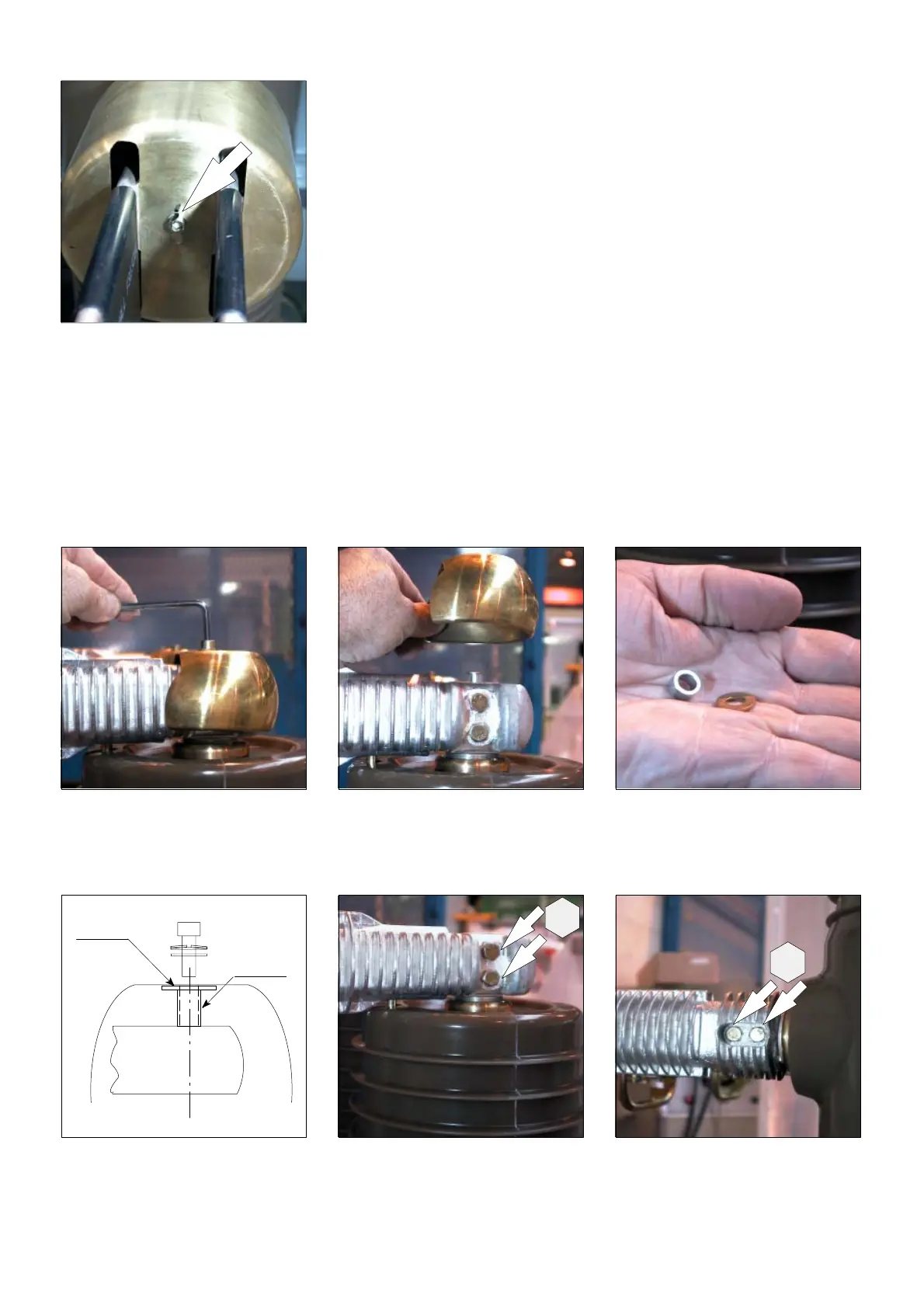

Remove the maintaining bolt
from the lower deflector
(5 mm Allen key).
Laterally displace the deflector
to gain access to the
connector's fixing bolts.
In the same way as for the
upper connector, remove the 3
fixing bolts from the lower
connector (16 mm spanner).
Third type of pole equipment
Remove the maintaining bolt
from the upper deflector
(5 mm Allen key).
Remove the deflector. Remove the spacer and the
support washer.
CAUTION, on re-assembly,
scrupulously respect their
position on the current terminal.
Washer
Spacer
Unscrew the 2 fixing bolts, then
remove the upper connector
(13mm spanner).
1.6
Proceed with the same
operation for the lower
connector
(2 bolts, 13 mm spanner).
1.6
