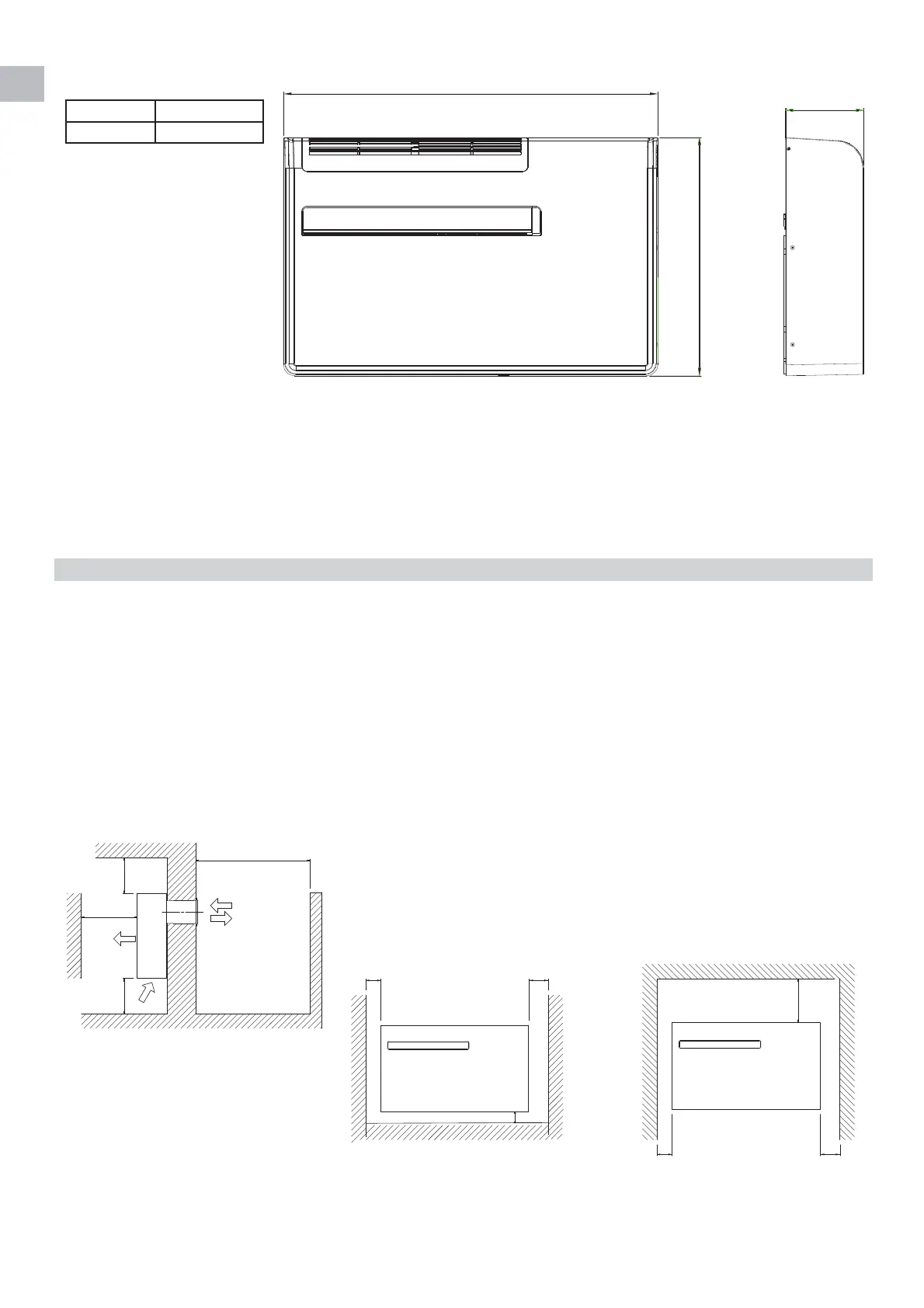

2.4 - DIMENSIONS AND WEIGHT
Model Weight (kg)
APOLLO 36
min. 800
min. 100
min. 80
2000
min. 100
80 100
3 - INSTALLATION
3.1 - INSTALLATION SITE SELECTION
AVOID
• Proximity to heat sources, exhaust fans.
• Proximity to combustible materials.
• Direct sunlight.
• Locations where the unit could be splashed with water
or affected by dampness or humidity (i.e. in laundries).
• Unsteady locations that will cause noise or possible
water leakage.
IMPORTANT NOTES
• The wall must be a perimeter one.
• Select a sufficiently strong wall to support the weight of
the unit.
• Fix the unit at a minimum height of 8 cm.
• Leave a minimum operation and maintenance area
around the unit.(See figure).
• Make sure that there are no obstacles around the unit
affecting the free circulation of air (curtains,furniture,...).
• Avoid installing the unit with the air flow directly towards
people, electric appliances or heat sources.
• It should not be installed directly above another appliance
(television set, radio, refrigerator, etc.).
80
100
min. 80
LOW WALL INSTALLATION HIGH WALL INSTALLATION
966
615
210
Unit: mm
Unit: mm
